12191 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 121911100101 - 121911199999) Hood, Bracket And Depth Regulator Parts Diagram

Tuffy Rear-Tine Tiller

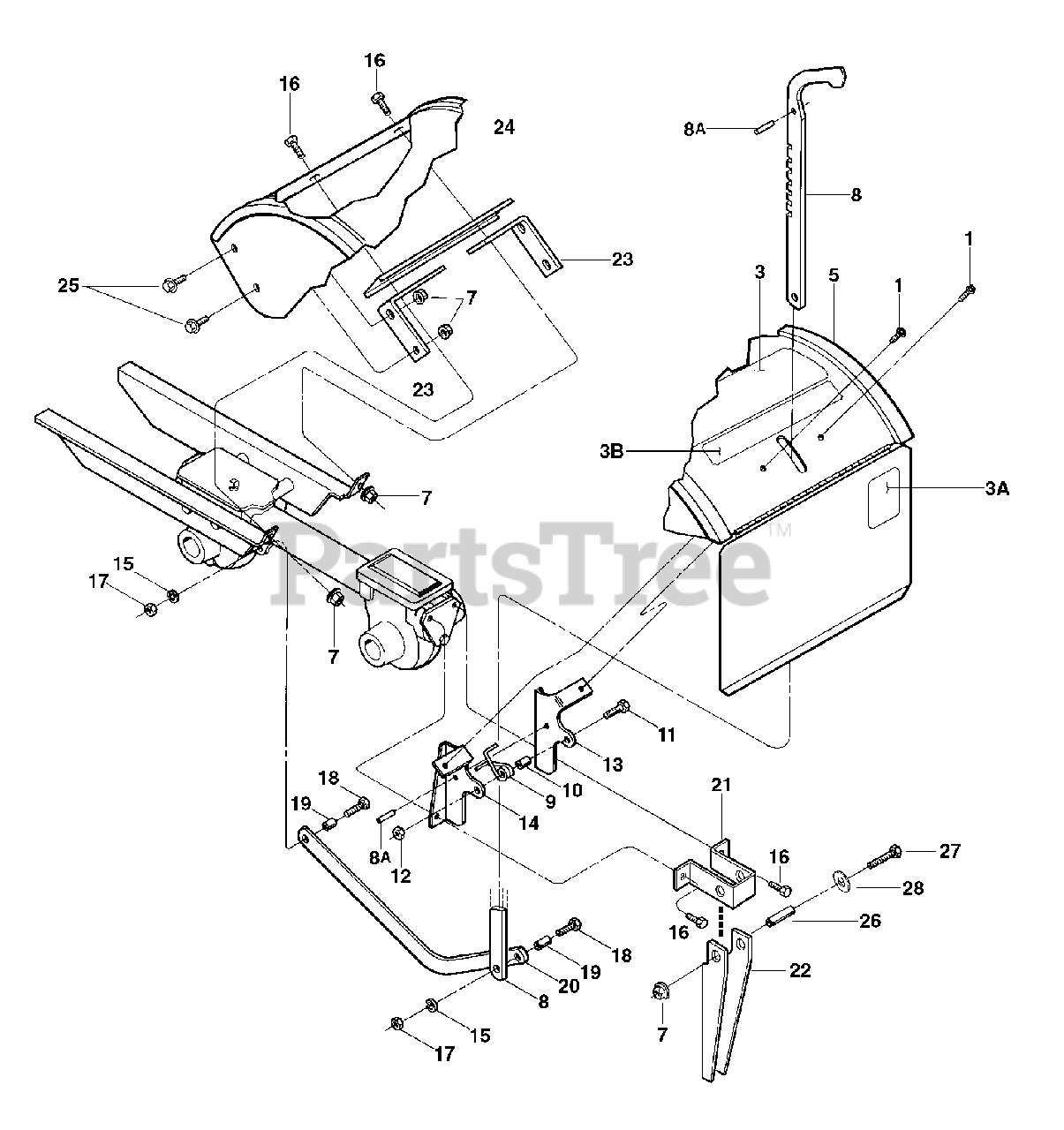

Hood, Bracket And Depth Regulator Parts Diagram

  • Title
1

Troy-Bilt 9552

Bolt-Fl. Hd., Self-Tap, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

3

MTD 1916805

Decal-Hood

$

$

Not available

3A

MTD 1911361

Decal-Warning

$

$

Not available

3B

MTD 1916919

Decal-Logo

$

$

Not available

5

MTD 1917121

Tine Hood,

Note: Model 12190-3HP; Includes tine flap. and Ref. No. 3, 3A, and 3B

$

$

Not available

MTD 1917120

Tine Hood

Note: Model 12191-5HP, MOdel 12193-6.5HP; Includes tine flap and Ref. No. 3, 3A, and 3B

$

$

Not available

7

Troy-Bilt 1186391

Nut-Flange Lock, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1916118001

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$66.99

$

Usually ships in 3-6 days

0

8A

Troy-Bilt 9308

Spirol Pin
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

9

Troy-Bilt 9384

Spring-Depth Regulator
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 11

0

10

Troy-Bilt 9534

Spacer
(Superseded to GW-9534)

$4.49

$

In Stock, Qty 9

0

11

Troy-Bilt 1100069

Bolt-Hex Hd., 1/4-20 x 1
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 13

0

12

Troy-Bilt 9811

Locknut-Hex Hd., 1/4-20

$

$

Currently unavailable

13

Troy-Bilt 1916119001

Bracket-Hood, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

14

Troy-Bilt 1916120001

Bracket-Hood, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 11000242

Lockwasher, 5/16

$

$

Currently unavailable

16

Troy-Bilt 1186331

Bolt-Flanged Hd., 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

17

Troy-Bilt 1186230

Nut-Hex Hd., 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 1100808

Bolt-Hex Hd., 5/16-18 x 1-1/4

$

$

Not available

19

Troy-Bilt 55088

Bushing-Drag Bar
(Superseded to GW-55088)

$

$

Not available

20

Troy-Bilt 1916121001

Drag Bar
(Superseded to 786-04104-0638)

$36.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 1916569001

Bracket-Stop
(Superseded to 786-04191-0637)

$

$

Not available

22

Troy-Bilt 1916570001

Arm-Reverse (Drag Stake)
(Superseded to 786-04092)

$25.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 1916708001

Bracket-Hood Support
(Superseded to 786-04099-0638)

$

$

Not available

24

MTD 1916707001

Bracket-Support Channel

$

$

Not available

25

Troy-Bilt 1186328

Bolt-Hex Hd. 5/16-18 x 5/8
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

26

$

$

Not available

27

Troy-Bilt 1111607

Bolt-Hex Hd. 5/16-18 x 2-1/4
(Superseded to 710-0395)

$4.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 1107382

Washer-5/16 I.D.
(Superseded to 936-0275)

$

$

Not available
