12190 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 121901100101 - 121901199999) Tines Parts Diagram

Tuffy Rear-Tine Tiller

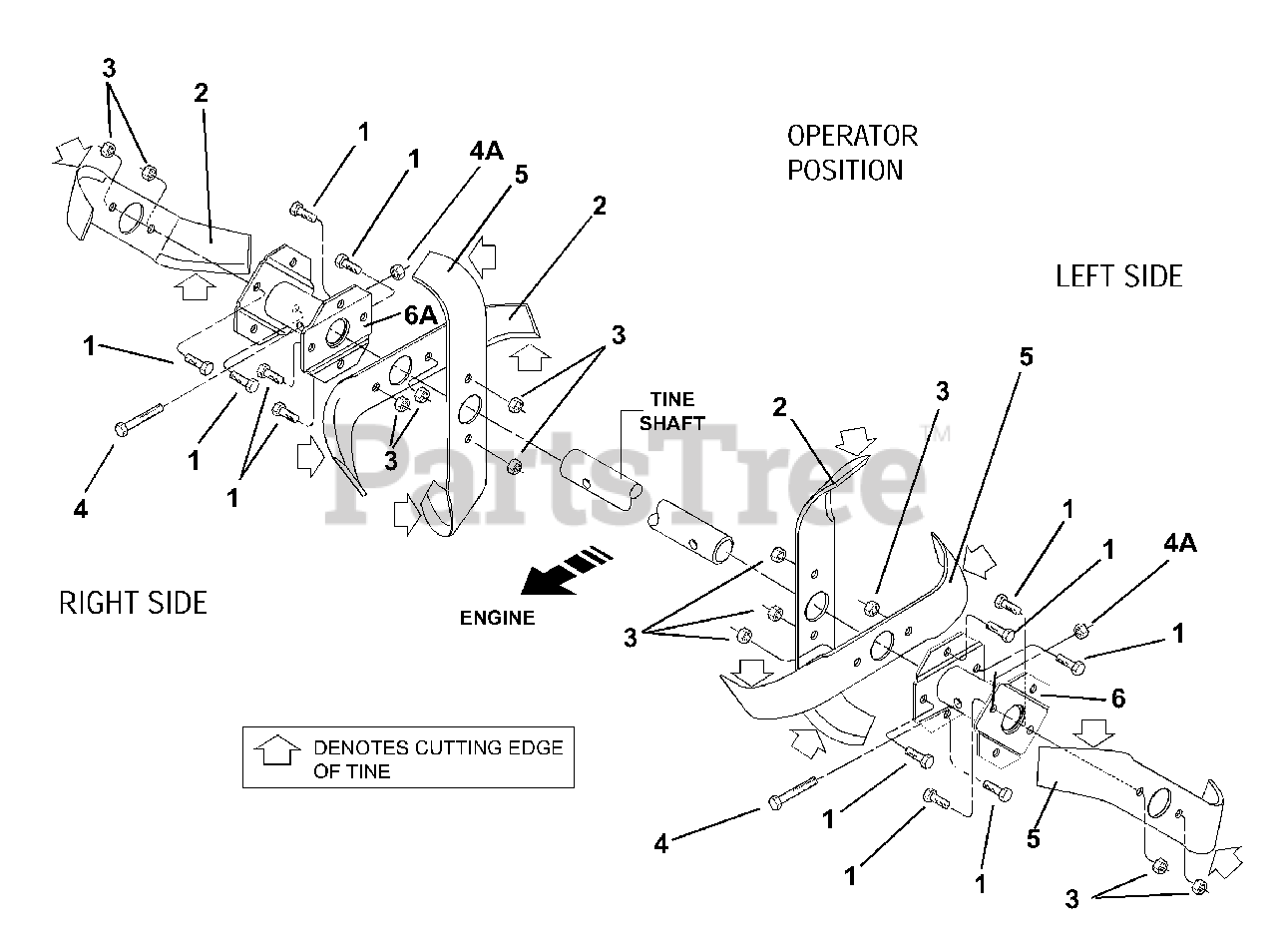

Tines Parts Diagram

  • Title

1

Troy-Bilt 1100044

Bolt-Hex Head, 5/16-18 x 3/4,Grade 5, Tine Mounting
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 1817060

Tine-Twin-Edged, Left-Facing
(Superseded to 742-04032-0637)

$26.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 1732499

Locknut-Hex Hd., 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1982612

Bolt-Hex Hd., 3/8-16 x 2 (tine holder to tiller shaft)
(Superseded to 710-3096)

$7.99

$

In Stock, only 1 left!

0

Troy-Bilt 1916783

Replacement Set of 6 Tines -

Note: including three right-facing tines, three left-facing tines; and all required assembly hardware

$154.99

$

In Stock, Qty 5

0

4A

Troy-Bilt 1733398

Locknut- Hex Hd., 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

5

Troy-Bilt 1817059

Tine-Twin-Edged, Right-Facing
(Superseded to 742-04033-0637)

$26.99

$

Usually ships in 3-6 days

0

6

MTD 1916691001

Tine Holder- left side

Note: Model 12190 - 3HP

$

$

Not available

MTD 1916702001

Tine Holder- left side

Note: Model 12191 - 5HP

$

$

Not available

MTD 1916704001

Tine Holder- left side

Note: Model 12193 - 6.5HP

$

$

Not available

6A

MTD 1916692001

Tine Holder- right side

Note: Model 12190 - 3HP

$

$

Not available

MTD 1916703001

Tine Holder- right side

Note: Model 12191 - 5HP

$

$

Not available

MTD 1916705001

Tine Holder- right side

Note: Model 12193 - 6.5HP

$

$

Not available
