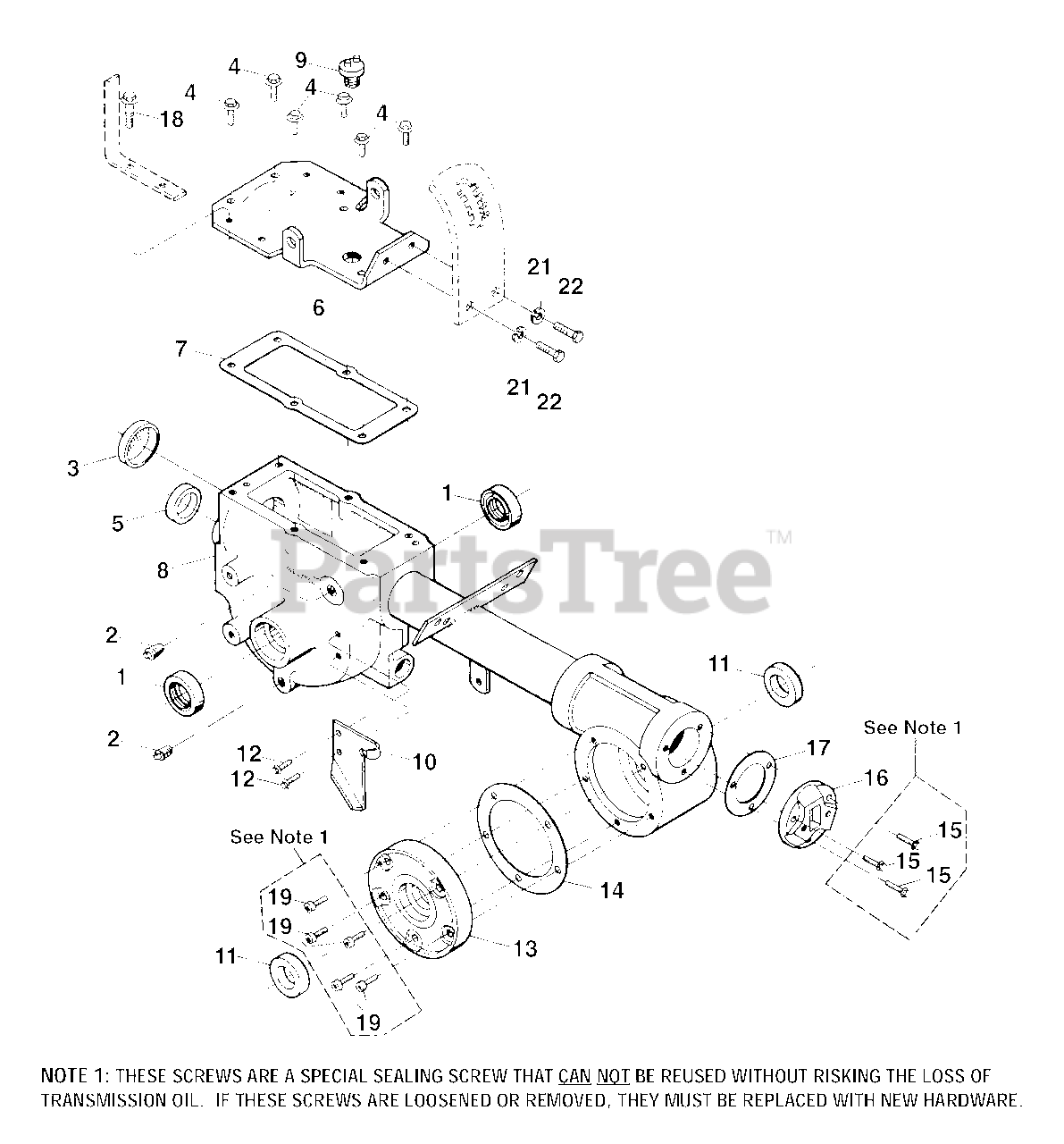

12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Transmission Housing, Covers, Seals, Gaskets And Plugs Parts Diagram

Econo-Horse Rear-Tine Tiller

Transmission Housing, Covers, Seals, Gaskets And Plugs Parts Diagram

  • Title

1

Troy-Bilt 9621

Oil seal, wheel shaft, left and right sides
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

Plug, pipe,1/4
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 97076

Seal, transmission bore
(Superseded to 721-04001)

$10.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 1186329

Screw, flanged hex hd., 5/16-18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 85030

Oil seal, input pinion shaft

$

$

Currently unavailable

6

Troy-Bilt 11513

Transmission cover, top

Note: Incl. (qty. 4) Ref. No. 18 and (qty. 2) Ref. No.'s 21, 22

$

$

Currently unavailable

7

Troy-Bilt 20694

Gasket, top cover
(Superseded to GW-20694P)

$5.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 20893

Transmission case, tube & rear housing assembly
(Superseded to 919-04010)

$456.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9467

Plug
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 20889

Plate, wheel drive cable mounting

$

$

Currently unavailable

11

Troy-Bilt 97073

Oil seal, tiller shaft, left and right sides
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 90038

Screw, flanged hex hd., 5/16-18 x 5/8

$

$

Currently unavailable

13

Troy-Bilt 20873

Cover, left side
(Superseded to GW-20873)

$108.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1129-1

Gasket, cover, .010 thick (fits all covers)
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

15

Troy-Bilt 1915089

Screw Kit

Note: Includes three (3) 1/4-20 x 7/8 self-sealing screws

$

$

Not available

16

Troy-Bilt 1115

Cap, rear bearing

$

$

Currently unavailable

17

Troy-Bilt 1124-2

Gasket, rear bearing cap, .010 thick
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 18

0

18

Troy-Bilt 1186331

Screw, flanged hex hd., 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

19

Troy-Bilt 1915087

Screw Kit

Note: Includes five (5) 1/4-20 x 5/8 self-sealing screws

$

$

Not available

21

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1100068

Screw, hex hd., 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Troy-Bilt 737-04040

Transmission Gear Oil Quart
(Superseded to 490-000-V045)

$19.99

$

In Stock, only 2 left!

0

$

$

Not available
