12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Row Marker Attachment - PN 12589 Parts Diagram

Econo-Horse Rear-Tine Tiller

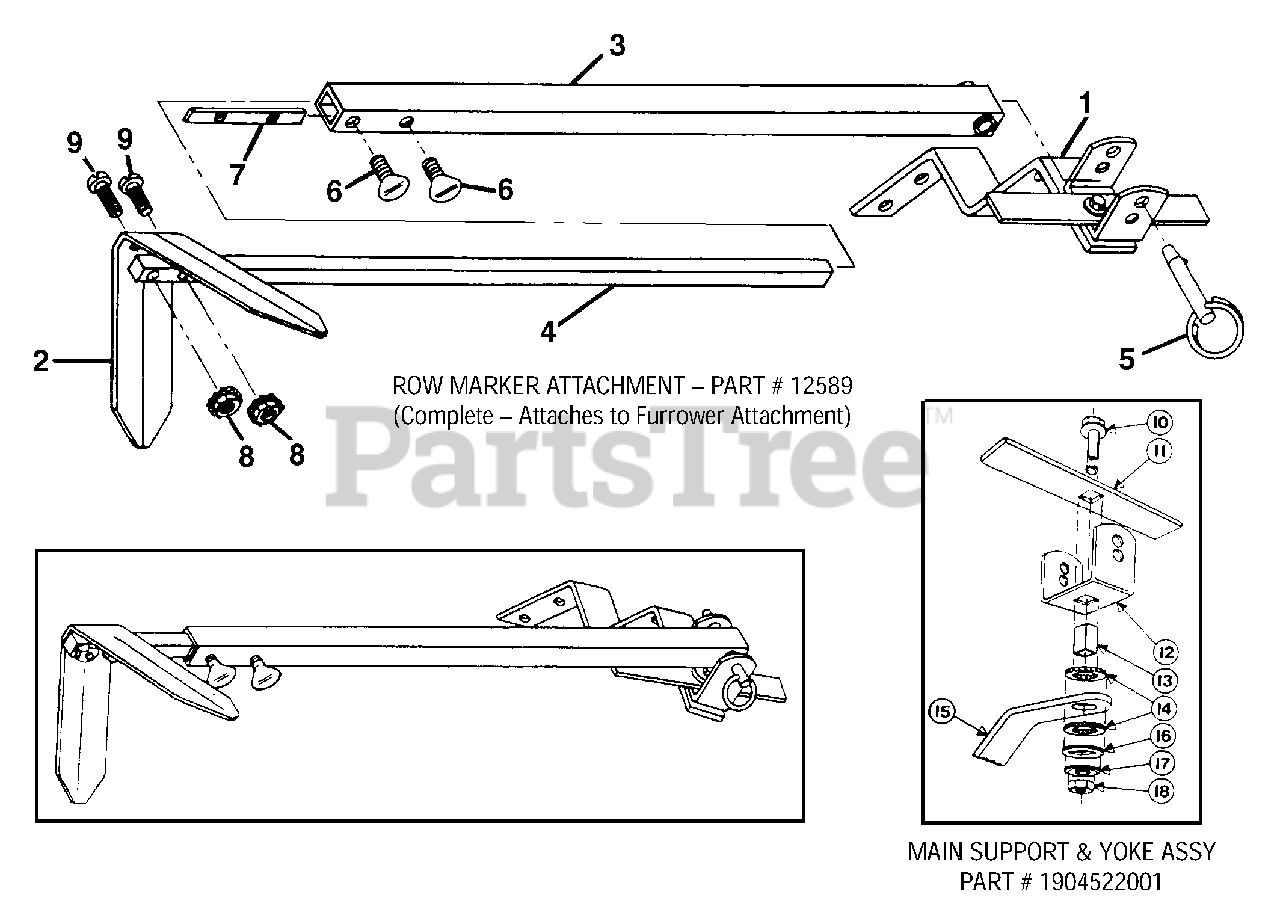

Row Marker Attachment - PN 12589 Parts Diagram

  • Title

12589

Troy-Bilt 12589

Row Marker Attachment

Note: (Complete - Attaches to Furrower Attachment)

$

$

Currently unavailable

1

Troy-Bilt 1569

Main support & yoke assembly Complete

Note: Incl. Ref. No's. 10, 11, 12 ,13, 14, 15, 16, 17 & 18

$

$

Currently unavailable

2

MTD 1594

Marker blade, (blade only)

$

$

Not available

3

MTD 1904524001

Marker arm, main arm

$

$

Not available

4

MTD 1904523001

Marker arm, ext. arm w/stop pin

$

$

Not available

5

Troy-Bilt 9347

Hitch pin
(Superseded to GW-9347)

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

Thumbscrew, 1/"-20 x 1/2

Note: Not available separately. (See Hardware Pkg. No. 1837)

$

$

Currently unavailable

7

MTD 1596

Nut bar

Note: (Incl. in Hardware Pkg. No. 1837)

$

$

Not available

8

MTD 9828

Nut, hex, No. 10-24 w/star washer

Note: Not available separately. (See Hardware Pkg. No. 1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw, round hd., 10-24 x 1

Note: Not available separately. (See Hardware Pkg. No. 1837)

$

$

Not available

MTD 1837

Hardware package

Note: Incl. Ref. No's. 5 (qty. 1), 6 (qty. 2), 7 (qty. 1) 8 (qty. 2), 9 (qty. 2)

$

$

Not available

Troy-Bilt 12582

Row marker attachment & Hiller/Furrower attachment combination-complete

Note: Incl. Part No. 12579 Hiller/Furrower & Part No. 12589 Row Marker

$

$

Currently unavailable

1904522001

Troy-Bilt 1904522001

Row Marker Main Support & Yoke Assembly

$

$

Currently unavailable

10

Troy-Bilt 1186349

Screw-hex flanged locking, 3/8-16 x 1-1/2 Grade 5

$3.99

$

Usually ships in 3-6 days

0

11

MTD 1593

Stop Bar

$

$

Not available

12

MTD 1592

Yoke

$

$

Not available

13

MTD 1591

Tube Key-square

$

$

Not available

14

Troy-Bilt 1590

Washer-friction
(Superseded to GW-1590)

$7.99

$

Usually ships in 3-6 days

0

15

MTD 1588

Main Support

$

$

Not available

16

MTD 1589

Washer-square hole

$

$

Not available

17

MTD 9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut-hex 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0
