12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Handlebar Assembly And Control Levers Parts Diagram

Econo-Horse Rear-Tine Tiller

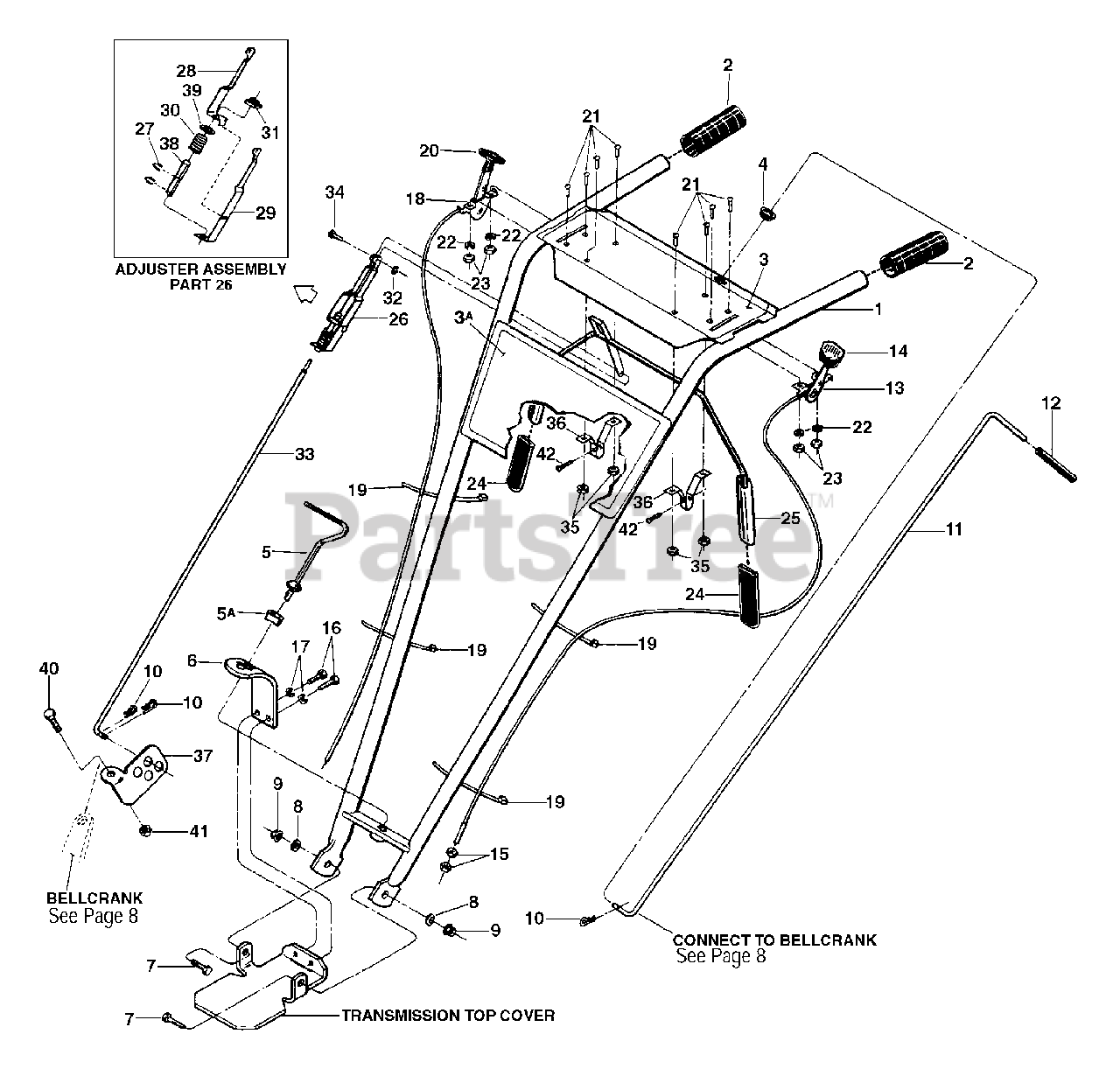

Handlebar Assembly And Control Levers Parts Diagram

  • Title

1

MTD 1916999

Handlebars

Note: (Incl. Ref No's 2, 3, 3A & 4)

$

$

Not available

2

Troy-Bilt 9125

Grip, handlebars
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

MTD 1916935

Decal-Operator Control Panel

$

$

Not available

3A

Troy-Bilt 2723

Decal-Troy-Bilt logo

$

$

Currently unavailable

4

MTD 9251

Grommet, plastic

$

$

Not available

5

MTD 20703

Handle, height adj

$

$

Not available

5A

Troy-Bilt 9955

Washer, keyed
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1900475001

Bracket, handlebar height adjustment
(Superseded to 1900475010)

$21.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1100046

Screw, hex hd., 3/8-16 x 1, GR5
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 9904

Washer-flat, 3/8, S.A.E
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

Locknut, hex hd., 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

Cotter, hairpin
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

11

MTD 20830

Lever, clutch-maneuvering

Note: (Incl. Ref No. 12)

$

$

Not available

12

Troy-Bilt 9198

Grip, clutch lever

$

$

Currently unavailable

13

Troy-Bilt 9442

Wheel gear control & cable assy.
(Superseded to GW-9442P)

Note: (Incl. Ref No's. 14, 15, 19, 21, 22 & 23)

$40.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 9057

Knob, wheel gear control lever
(Superseded to GW-9057)

$8.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1186211

Nut-hex, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 1100068

Screw, hex hd., 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

17

Troy-Bilt 1100243

Lockwasher, 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 9445

Engine throttle control & cable

$

$

Currently unavailable

19

Troy-Bilt 9202

Ties, plastic
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 9212

Knob, engine throttle lever
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

21

Troy-Bilt 1114748

Screw, No. 10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1100240

Lockwasher, No. 10

$

$

Not available

23

Troy-Bilt 1186208

Nut, hex hd. No. 10-32

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 9390

Grip, paddle
(Superseded to GW-9390)

$4.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 20863

Bail, forward clutch control
(Superseded to 1918840)

Note: (Incl. two Ref No. 24)

$116.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 20862

Adjuster assy.
(Superseded to GW-20862)

Note: (Incl. Ref No's. 27, 28, 29, 30, 38 & 39)

$

$

Not available

27

Troy-Bilt 9532

Klip ring
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

28

MTD 20808

Adjuster, Right side

$

$

Not available

29

Troy-Bilt 20809

Adjuster, Left side
(Superseded to GW-20809)

$

$

Not available

30

MTD 9059

Spring, adjuster

$

$

Not available

31

MTD 9522

Nut, rectangular

$

$

Not available

32

MTD 9386

Klip ring

$

$

Not available

33

MTD 20831

Rod, forward clutch
(Superseded to GW-20831)

$

$

Not available

34

Troy-Bilt 97083

Pin, Clevis

$

$

Currently unavailable

35

Troy-Bilt 9853

Sems Nut
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 20806

Bracket, bail support
(Superseded to GW-20806)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 20888

Swivel

$

$

Not available

38

MTD 9432

Bushing

$

$

Not available

39

MTD 9973

Washer

$

$

Not available

40

Troy-Bilt 1100805

Screw, hex hd., 1/4-20 x 3/4
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 9811

Nut, 1/4-20

$

$

Currently unavailable

42

Troy-Bilt 9552

Screw, flanged hex hd., self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
