12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Engine, Support Brackets, Pulleys, Belts And Belt Cover Parts Diagram

Econo-Horse Rear-Tine Tiller

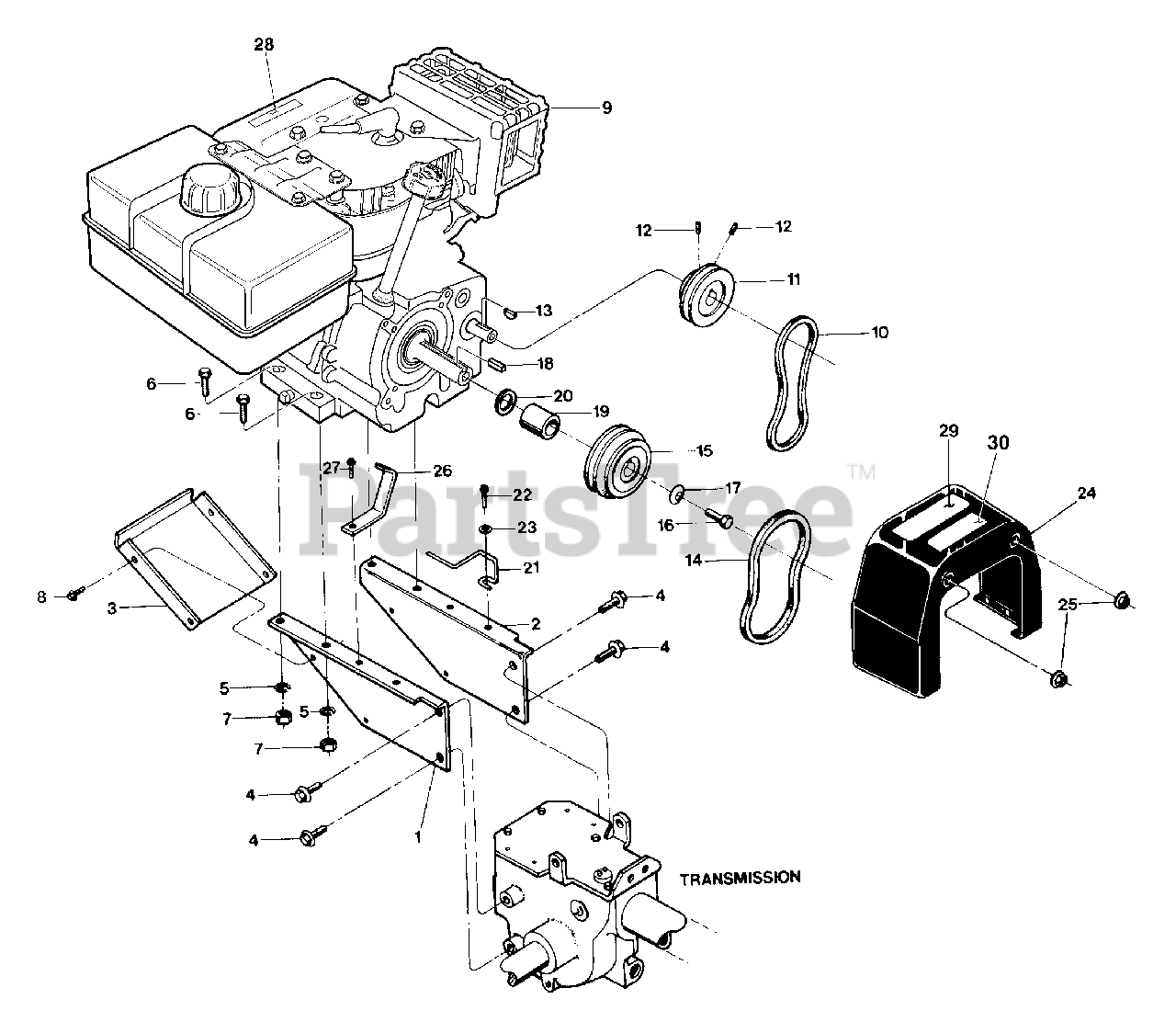

Engine, Support Brackets, Pulleys, Belts And Belt Cover Parts Diagram

  • Title

1

MTD 1916604001

Support bracket, left side

$

$

Not available

2

Troy-Bilt 191660200

Support bracket, right side

$

$

Currently unavailable

3

Troy-Bilt 20673

Support bracket, front
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 1186329

Screw, flanged hex hd., 5/16-18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1100242

Lockwasher, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1100044

Screw, hex hd., 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1186321

Nut, hex hd., 5/16-18

$

$

Currently unavailable

8

Troy-Bilt 1900396

Screw, self-tapping, hex hd., No.10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

9

Tecumseh Engine, recoil start, electronic solid state ignition, 7 Horsepower

Note: See your local authorized engine service dealer for engine parts or service. Refer to the engine nameplate for engine type and code information.

$

$

Not available

10

Troy-Bilt 9022

V-Belt, reverse

$

$

Currently unavailable

11

Troy-Bilt 2477

Reverse Pulley

$

$

Currently unavailable

12

MTD 9561

Set Screw, socket head, 1/4-20 x 1/4

$

$

Not available

13

MTD 9361

Key, Woodruff (#5)

$

$

Not available

14

Troy-Bilt 1909404

V-Belt, forward
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 2476

Forward Pulley

$

$

Currently unavailable

16

Troy-Bilt 1100009

Screw, hex head, 3/8-24 x 1, Grade 5
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

17

MTD 9925

Washer, disc spring

$

$

Not available

18

Troy-Bilt 9301

Key, 3/16 square x 1
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 50141

Spacer

$

$

Currently unavailable

20

Troy-Bilt 1138-2

Shim
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

21

MTD 20555

Belt guide

$

$

Not available

22

Troy-Bilt 9573

Screw, hex head, 1/4-20 x 3/4, self tapping
(Superseded to 1754128)

$3.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 9900

Washer, flat, 1/4 S.A.E

$

$

Currently unavailable

24

Troy-Bilt 1904567

Cover
(Superseded to 731-05290)

Note: (Incl. Ref. No's. 28, 30)

$26.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1186391

Nut, Whiz Lock, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

26

MTD 20654

Belt Guide

$

$

Not available

27

Troy-Bilt 9552

Screw, flanged hex head, 1/4-20 x 1/2, self-tapping
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

28

MTD 1900766

Decal, Hot Surface/Belt Cover

$

$

Not available

29

MTD 1904557

Decal, Belt Cover

$

$

Not available

30

MTD 1900764

Decal, Belt Position

$

$

Not available

$

$
