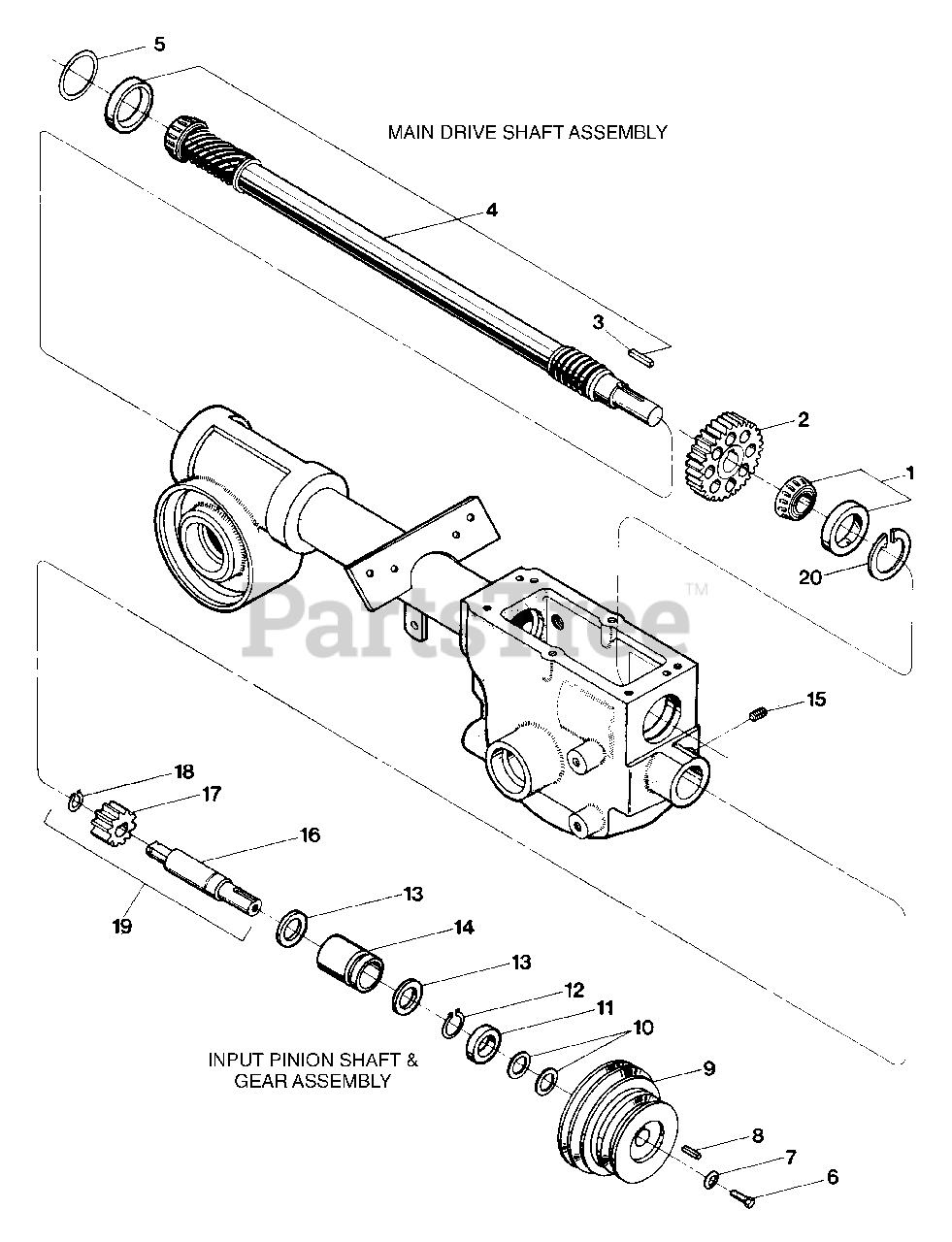

12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Drive Shaft, Input Pinion Shaft And gear Assemblies Parts Diagram
Econo-Horse Rear-Tine Tiller
Drive Shaft, Input Pinion Shaft And gear Assemblies Parts Diagram
$47.99
$
$39.99
$
$3.99
$
MTD 11603
Note: Incl. Part No. 1714 (pressed-on rear bearing w/race) & Ref. No. 3
$
$
Not available
Troy-Bilt 1224-1
Note: Shim between drive shaft rear bearing and rear bearing cap to achieve 5 to 10 thousandths of an inch (.005"-.010") end play on drive shaft.
$4.49
$
Troy-Bilt 1224-2
Note: Shim between drive shaft rear bearing and rear bearing cap to achieve 5 to 10 thousandths of an inch (.005"-.010") end play on drive shaft.
$4.49
$
Troy-Bilt 1224-3
Note: Shim between drive shaft rear bearing and rear bearing cap to achieve 5 to 10 thousandths of an inch (.005"-.010") end play on drive shaft.
$4.49
$
Troy-Bilt 1325C
Note: Includes (Qty. 2) Part No. 1224-1, (Qty. 2) Part No. 1224-2 & (Qty. 1) Part No. 1224-3
$15.99
$
$4.49
$
$6.99
$
$3.99
$
Troy-Bilt 20507
$
$
Currently unavailable
$4.99
$
Troy-Bilt 85030
$
$
Currently unavailable
$3.99
$
$
$
Not available
$37.99
$
$3.49
$
$84.99
$
$22.99
$
$6.99
$
$
$
Not available
$4.49
$
$
$
Not available
