12185 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: 121851100101 - 121851199999) Bumper Assembly Complete - PN 12596 Parts Diagram

Econo-Horse Rear-Tine Tiller

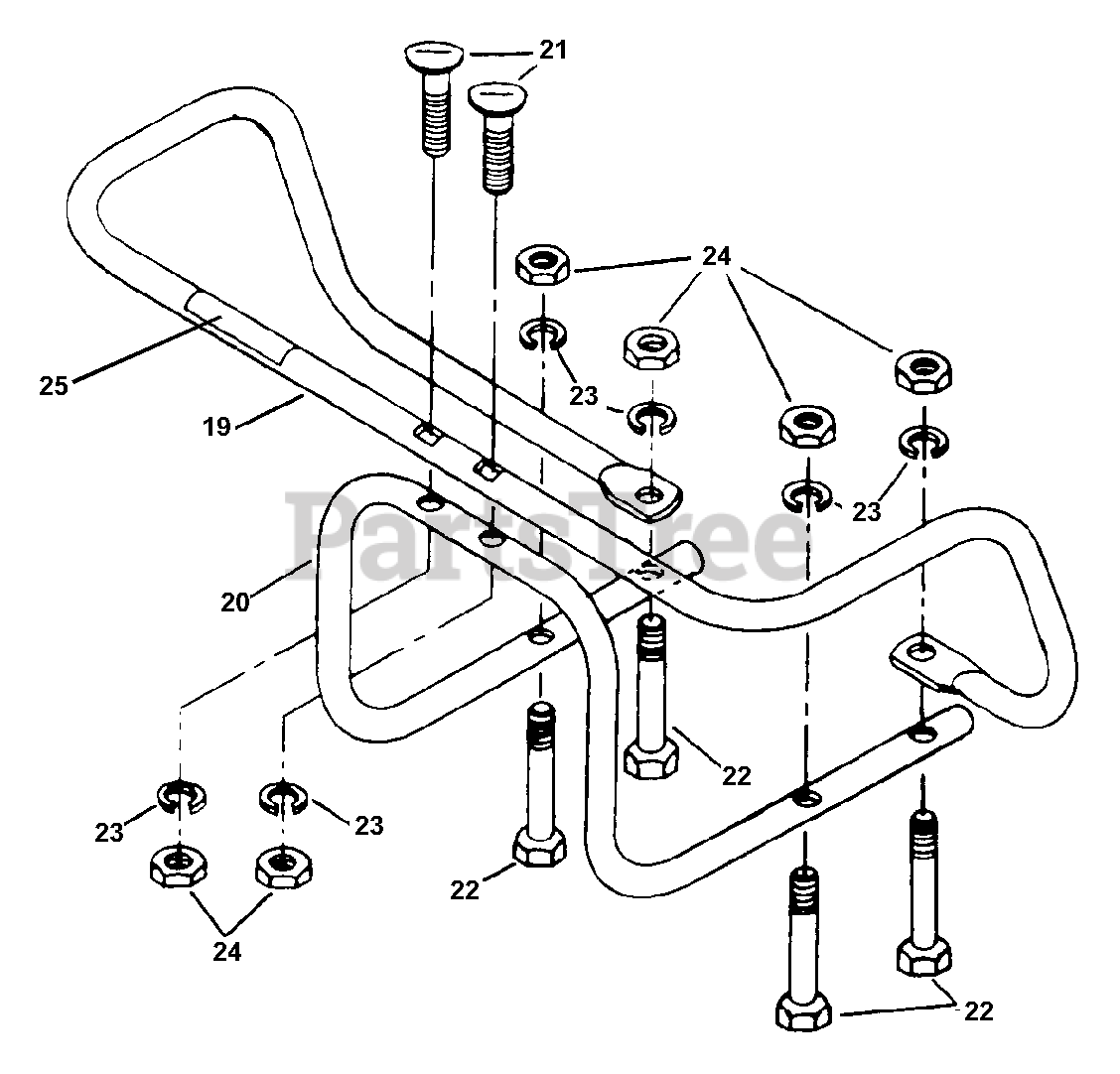

Bumper Assembly Complete - PN 12596 Parts Diagram

  • Title

19

MTD 1916714001

Bumper, top section

$

$

Not available

20

Troy-Bilt 1904758001

Bumper, bottom section
(Superseded to 749-04193-0637)

$54.99

$

In Stock, Qty 6

0

21

Troy-Bilt 1731025

Bolt-curved head, 5/16-18 x 2" (special bolt)
(Superseded to 710-1174)

Note: Also see hardware kit

$7.49

$

In Stock, Qty 20+

0

22

MTD 1111608

Bolt, hex hd., 5/16"-18 x 2- 1/2"

$

$

Not available

23

Troy-Bilt 1100242

Lockwasher, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1186230

Nut-hex., 5/16"-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1448

Decal-caution
(Superseded to GW-1448)

$6.49

$

Usually ships in 3-6 days

0

MTD 1915811

Hardware Kit

Note: Includes: two #1731025 curved head bolts; four #1111608 hex hd. bolts; six #1100242 lockwashers; six #1186230 hex nuts

$

$

Not available

Troy-Bilt 12596

Bumper Assembly Complete

$

$

Currently unavailable
