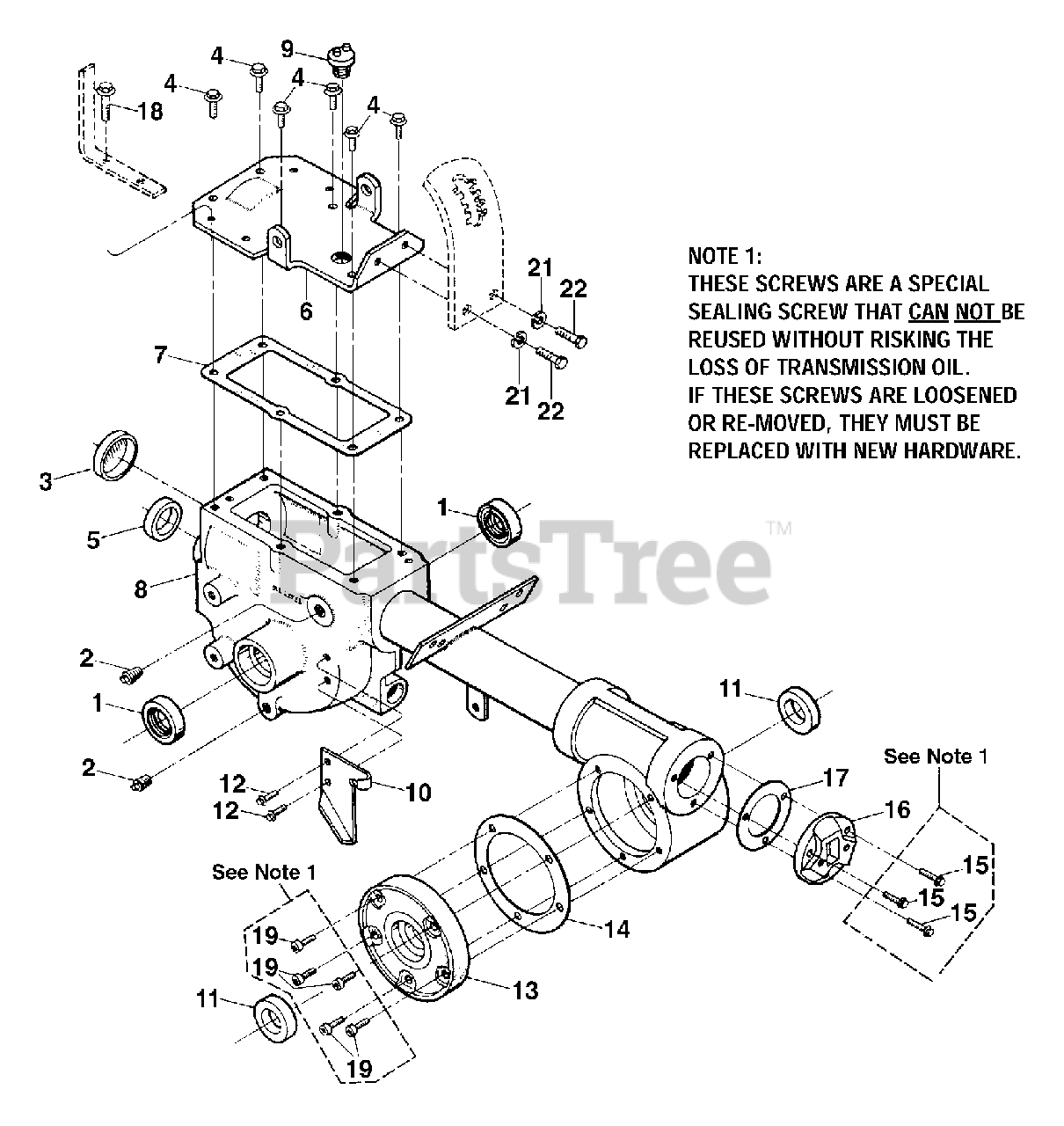

12183 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121831100101 - 121831199999) Transmission Housing, Covers, Seals, Gaskets & Plugs Parts Diagram

Pony Rear-Tine Tiller

Transmission Housing, Covers, Seals, Gaskets & Plugs Parts Diagram

  • Title

1

Troy-Bilt 9621

Oil Seal-double lip, wheel shaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9726

Plug-pipe, 1/4
(Superseded to 1105620)

$4.49

$

In Stock, only 3 left!

0

3

Troy-Bilt 97076

Seal-transmission bore
(Superseded to 721-04001)

$10.99

$

In Stock, only 3 left!

0

4

Troy-Bilt 1186329

Screw- flanged hex hd., 5/16-18 x 3/4
(Superseded to 710-04043)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 85030

Oil Seal-input pinion shaft

$

$

Currently unavailable

6

Troy-Bilt 11513

Cover-top of transmission

Note: (Incl. four of Ref. No. 18 and two each of Ref. No.'s 21 and 22)

$

$

Currently unavailable

7

Troy-Bilt 20694

Gasket-transmission top cover
(Superseded to GW-20694P)

$5.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 20893

Transmission case, tube and rear housing assembly
(Superseded to 919-04010)

$456.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 9467

Plug-gear oil fill hole
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

10

Troy-Bilt 20889

Plate-wheel drive cable mounting

$

$

Currently unavailable

11

Troy-Bilt 97073

Oil Seal-tiller shaft
(Superseded to 921-04035)

$11.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 90038

Screw- flanged hex hd., 5/16-18 x 5/8

Note: Specify GRADE 5 if ordering part locally.

$

$

Currently unavailable

13

Troy-Bilt 20873

Cover-tiller housing, left side
(Superseded to GW-20873)

$108.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1129-1

Gasket-tiller housing cover, .010
(Superseded to GW-1129-1099)

$8.99

$

In Stock, Qty 17

0

15

Troy-Bilt 1915089

Screw Kit:

Note: Includes three (3) 1/4-20 x 7/8 self-sealing screws

$

$

Not available

16

Troy-Bilt 1115

Cap-rear bearing

$

$

Currently unavailable

17

Troy-Bilt 1124-2

Gasket-rear bearing cap, .010 thick
(Superseded to GW-1124-2099)

$4.99

$

In Stock, Qty 18

0

18

Troy-Bilt 1186331

Screw-flanged hex hd., 5/16-18 x 1
(Superseded to 710-04048)

Note: Specify GRADE 5 if ordering part locally.

$4.99

$

In Stock, Qty 7

0

19

Troy-Bilt 1915087

Screw Kit:

Note: Includes five (5) 1/4-20 x 5/8 self-sealing screws

$

$

Not available

21

Troy-Bilt 1100243

Lockwasher-3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 1100068

Screw-hex hd., 3/8-16 x 3/4
(Superseded to 710-0216)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 14

0

$

$

Not available
