12183 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121831100101 - 121831199999) Row Marker Main Support & Yoke Assembly - P/N 1904522001 Parts Diagram

Pony Rear-Tine Tiller

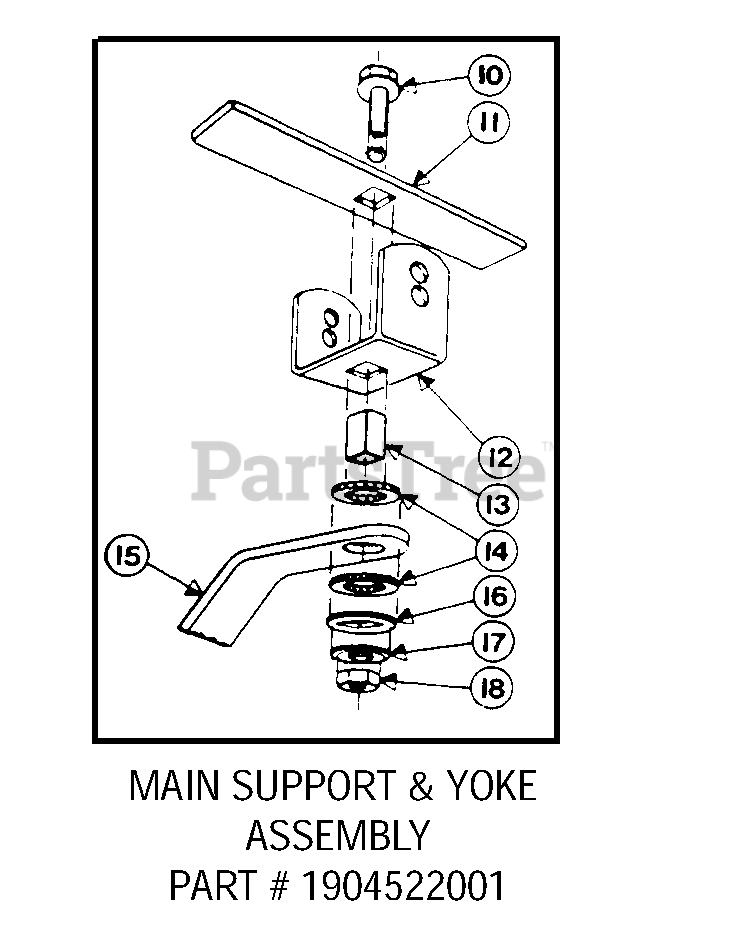

Row Marker Main Support & Yoke Assembly - P/N 1904522001 Parts Diagram

  • Title
10

Troy-Bilt 1186349

Screw-hex flanged locking, 3/8-16 x 1-1/2

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

Usually ships in 3-6 days

0

11

MTD 1593

Stop Bar

$

$

Not available

12

MTD 1592

Yoke

$

$

Not available

13

MTD 1591

Tube Key-square

$

$

Not available

14

Troy-Bilt 1590

Washer-friction
(Superseded to GW-1590)

$7.99

$

Usually ships in 3-6 days

0

15

MTD 1588

Main Support

$

$

Not available

16

MTD 1589

Washer-square hole

$

$

Not available

17

MTD 9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut-hex 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

1904522001

Troy-Bilt 1904522001

Row Marker Main Support & Yoke Assembly

$

$

Currently unavailable
