12183 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121831100101 - 121831199999) Row Marker Attachment - P/N 12589 Parts Diagram

Pony Rear-Tine Tiller

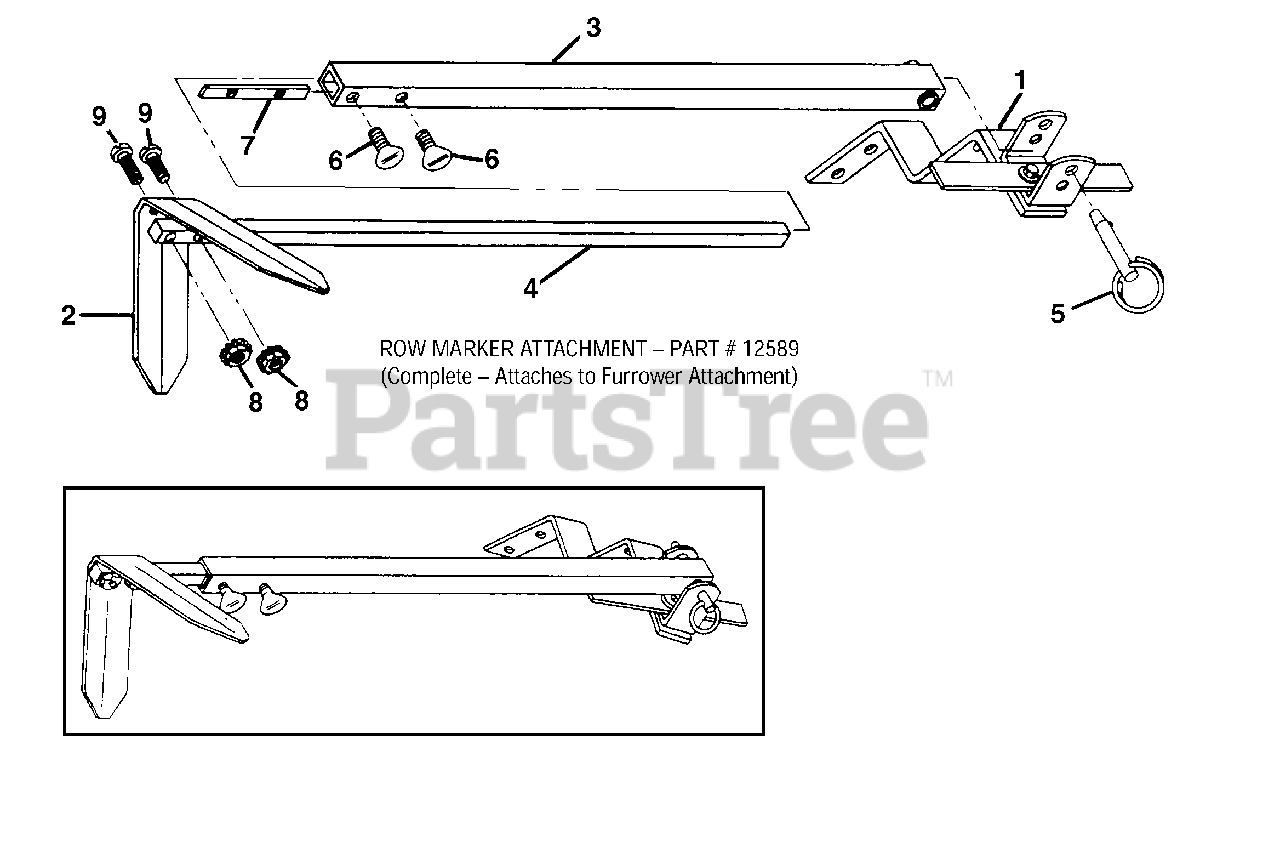

Row Marker Attachment - P/N 12589 Parts Diagram

  • Title

1

Troy-Bilt 1904522001

Main Support & Yoke Assy-

Note: Complete.

$

$

Currently unavailable

2

MTD 1594

Marker Blade-blade only

$

$

Not available

3

MTD 1904524001

Marker Arm-main arm

$

$

Not available

4

MTD 1904523001

Marker Arm-extension arm with stop pin

$

$

Not available

5

Troy-Bilt 9347

Hitch Pin-
(Superseded to GW-9347)

Note: (Incl. in Hardware Pkg #1837)

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

Thumbscrew-1/4-20 x 1/2, not avail. sep.

Note: (See hardware pkg. #1837)

$

$

Currently unavailable

7

MTD 1596

Nut Bar-

Note: (Incl. in hardware pkg #1837)

$

$

Not available

8

MTD 9828

Nut-hex, 10-24 w/attached start washers, not avail. sep.

Note: (See hardware pkg #1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd.,10-24 x 1, not avail. sep.

Note: (See hardware pkg #1837)

$

$

Not available

MTD 1837

Hardware Package-

Note: Includes: one #9347 hitch pin (Ref. 5), two #9786 thumbscrews (Ref. 6), one #1596 nut bar (Ref. 7), two #9828 hex nuts (Ref. 8), two 1100135 screws (Ref. 9)

$

$

Not available

Troy-Bilt 12582

Row Marker Attachment & Pony Hiller/Furrower Attachment-

Note: Complete: incl. #12579 Pony Hiller/Furrower and #12589 Row Marker

$

$

Currently unavailable

12589

Troy-Bilt 12589

Row Marker Attachment-

Note: Complete: attaches to furrower attachment #12579, includes #1904522001 Main Support & Yoke Assy.

$

$

Currently unavailable
