12183 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121831100101 - 121831199999) Handlebar Assembly & Control Levers Parts Diagram

Pony Rear-Tine Tiller

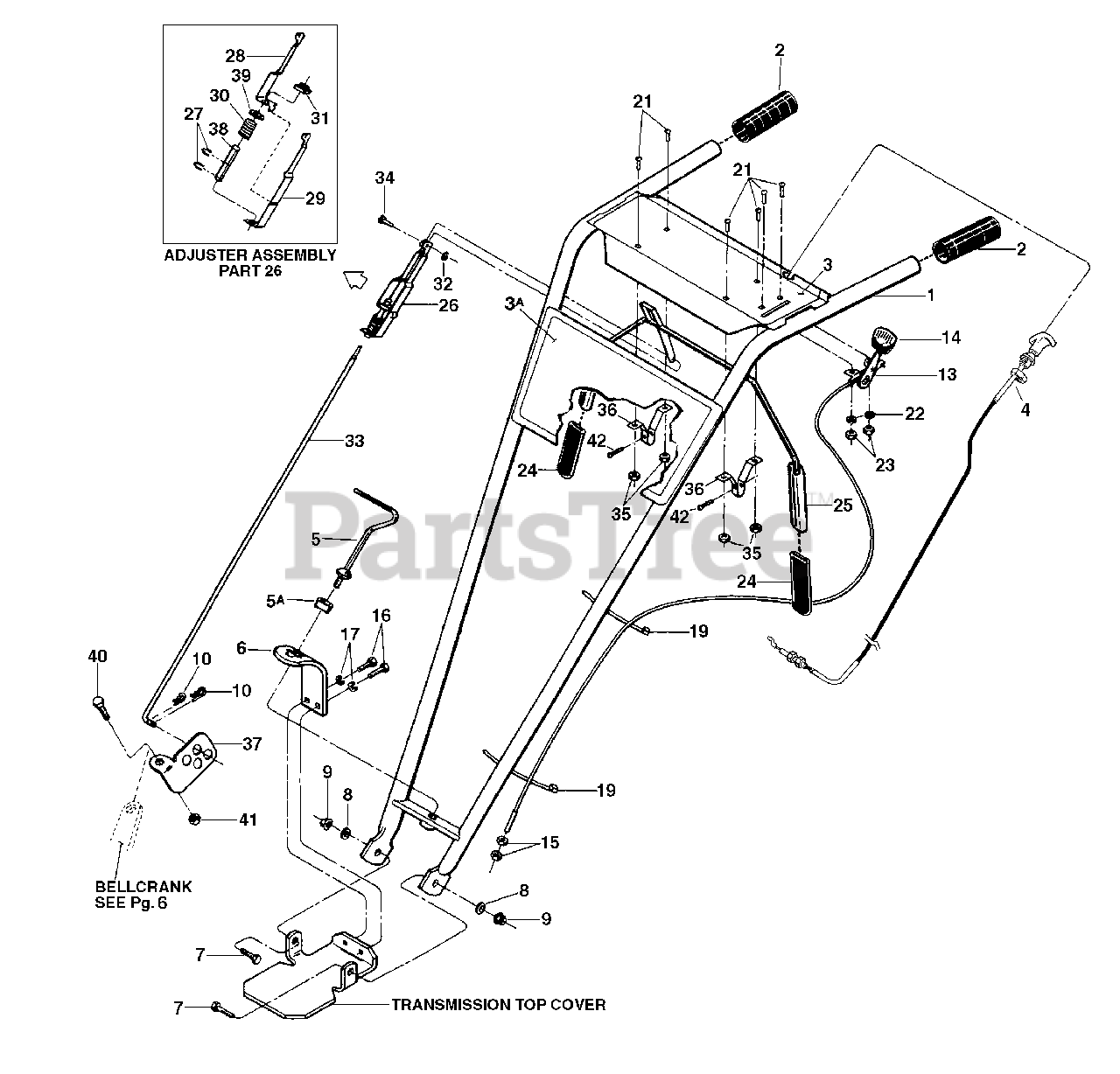

Handlebar Assembly & Control Levers Parts Diagram

  • Title

1

MTD 1917141

Handlebars-

Note: (Incl. Ref. No.'s 2, 3 and 3A)

$

$

Not available

2

Troy-Bilt 9125

Grip-handlebars
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

3

MTD 1916931

Decal-for operator control panel

$

$

Not available

3A

MTD 1916930

Decal-Troy-Bilt Pro Line

$

$

Not available

4

Troy-Bilt 1916784

Reverse Cable Assembly
(Superseded to 1916784P)

$68.99

$

In Stock, only 1 left!

0

5

MTD 20703

Handle, Height Adjustment

$

$

Not available

5A

Troy-Bilt 9955

Washer-keyed
(Superseded to 736-04445)

$3.99

$

In Stock, Qty 8

0

6

Troy-Bilt 1900475001

Bracket-handlebar height adjust
(Superseded to 1900475010)

$21.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1100046

Screw-hex hd., 3/8-16 x 1
(Superseded to 710-0514)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 9904

Washer-plain (flat) 3/8, S.A.E.
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

9

Troy-Bilt 9837

Locknut-hex, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

10

Troy-Bilt 9338

air Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

?11

MTD 20830

Maneuvering Clutch Lever-

Note: Complete

$

$

Not available

?12

Troy-Bilt 9198

Grip-maneuvering clutch lever

$

$

Currently unavailable

13

Troy-Bilt 9442

Wheel Gear Control & Cable Assy.
(Superseded to GW-9442P)

Note: (Incl. Ref. No.'s 14, 15, 19, 21, 22, and 23)

$40.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 9057

Knob-wheel gear control lever
(Superseded to GW-9057)

$8.49

$

In Stock, only 1 left!

0

15

Troy-Bilt 1186211

Nut-hex, 5/16-24, wheel gear cable adjustment
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 1100068

Screw-hex hd., 3/8-16 x 3/4
(Superseded to 710-0216)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 16

0

17

Troy-Bilt 1100243

Lockwasher-3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 9202

Ties-plastic
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 1114748

Screw-round hd, No. 10-32 x 1/2

$5.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1100240

Lockwasher-No. 10

$

$

Not available

23

Troy-Bilt 1186208

Nut-hex, No. 10-32

$6.49

$

Usually ships in 3-6 days

0

24

Troy-Bilt 9390

Grip-paddle
(Superseded to GW-9390)

$4.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 20863

Bail-forward clutch control
(Superseded to 1918840)

Note: (Incl. two Grips, Ref. No. 24)

$116.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 20862

Adjuster Assembly
(Superseded to GW-20862)

Note: (Incl. Ref. No.'s 27, 28, 29, 30, 38 and 39)

$

$

Not available

27

Troy-Bilt 9532

Klip Ring
(Superseded to GW-9532)

$3.99

$

Usually ships in 3-6 days

0

28

MTD 20808

Adjuster, Right Side

$

$

Not available

29

Troy-Bilt 20809

Adjuster, Left Side
(Superseded to GW-20809)

$

$

Not available

30

MTD 9059

Spring-Adjuster

$

$

Not available

31

MTD 9522

Nut-rectangular

$

$

Not available

32

MTD 9386

Klip Ring

$

$

Not available

33

MTD 20831

Rod-forward clutch
(Superseded to GW-20831)

$

$

Not available

34

Troy-Bilt 97083

Pin-Clevis

$

$

Currently unavailable

35

Troy-Bilt 9853

Sems Nut
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 20806

Bracket-bail support
(Superseded to GW-20806)

$8.99

$

Usually ships in 3-6 days

0

37

MTD 20888

Swivel

$

$

Not available

38

MTD 9432

Bushing

$

$

Not available

39

MTD 9973

Washer

$

$

Not available

40

Troy-Bilt 1100805

Screw-hex hd., 1/4-20 x 3/4
(Superseded to 710-3015)

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 9811

Nut-1/4-20

$

$

Currently unavailable

42

Troy-Bilt 9552

Screw-flanged hex hd, self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

In Stock, Qty 20+

0
