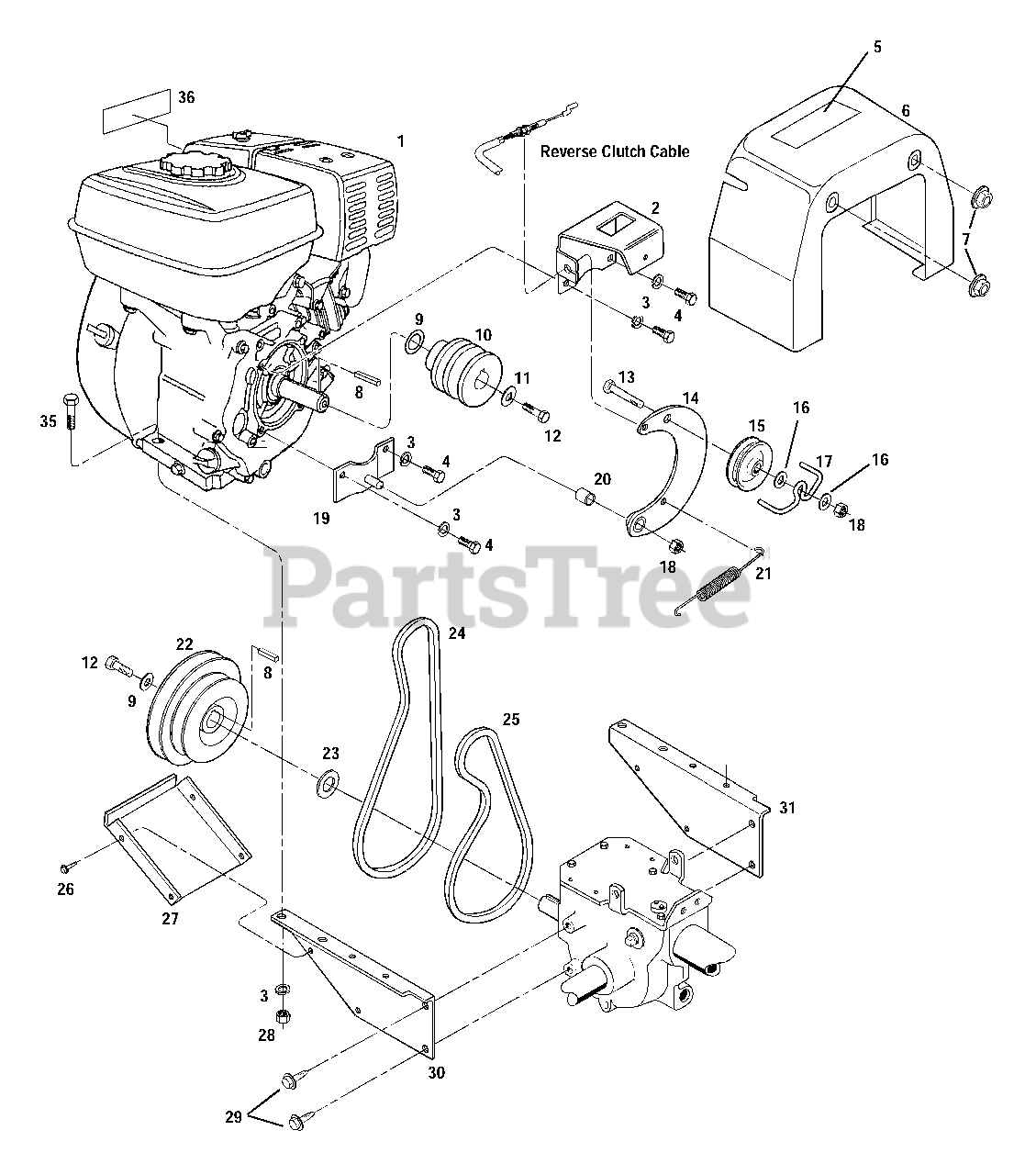

12183 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121831100101 - 121831199999) Engine, Support Brackets, Pulleys, Belts & Belt Cover Parts Diagram

Pony Rear-Tine Tiller

Engine, Support Brackets, Pulleys, Belts & Belt Cover Parts Diagram

  • Title

1

Engine-5.5 HP, standard recoil start

Note: See your local authorized engine service dealer for engine parts of service. Refer to engine nameplate for engine type and code information.

$

$

Not available

2

Troy-Bilt 1917326001

Bracket, Clutch Cable
(Superseded to 786-04070-0637)

$

$

Not available

3

Troy-Bilt 1100242

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

MTD 1111696

Screw-hex hd., 5/16-24 x 1/2

$

$

Not available

5

MTD 1904557

Decal-Hot surfaces/belt warning

$

$

Not available

6

Troy-Bilt 1917139

Cover-
(Superseded to 731-05290)

Note: (Incl. Ref. No. 5)

$26.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1186391

Nut-5/16-18, Flange Lock
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1108841

Key-3/16 x 1-1/2
(Superseded to 914-0133)

$

$

Not available

9

Troy-Bilt 1138-1

Washer-Disc Spring
(Superseded to 736-04187)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1916520

Pulley, Engine Drive
(Superseded to 619-04130)

$55.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 9944

Washer, Belleville
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 9572

Screw-hex hd., 5/16-24 x 1-1/8
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

13

MTD 1111606

Screw-hex hd., 5/16-18 x 2

$

$

Not available

14

MTD 1916578001

Reverse Idler Arm

$

$

Not available

15

Troy-Bilt 1916535

Pulley, Reverse Idler
(Superseded to 756-04169)

$25.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 1107382

Washer, Flat, 5/16
(Superseded to 936-0275)

$

$

Not available

17

Troy-Bilt 1916725

Belt Guide
(Superseded to 732-04081)

$10.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 1110107

Locknut, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

19

MTD 1916559001

Bracket, Reverse Idler

$

$

Not available

20

MTD 1916536

Bushing

$

$

Not available

21

Troy-Bilt 1916728

Spring, Reverse Return
(Superseded to 732-04077)

$10.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 1916522

Pulley, Transmission
(Superseded to 619-04123)

$165.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1440

Support Washer
(Superseded to 736-04079)

$4.99

$

In Stock, Qty 7

0

24

Troy-Bilt 1916753

Reverse Drive Belt
(Superseded to 954-04095)

$18.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 1909404

Forward Drive Belt
(Superseded to 954-04094)

$30.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1900396

Screw-hex hd., #10-32 x 1/2, self-tapping

$5.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 1916189001

Guard, Belts/Pullyes
(Superseded to 786-04080-0638)

$20.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 1186329

Screw-flanged hex hd., 5/16-18 x 3/4
(Superseded to 710-04043)

Note: Specify GRADE 5 if ordering part locally.

$4.49

$

Usually ships in 3-6 days

0

30

Troy-Bilt 1916797001

Support Bracket-engine, left side
(Superseded to 786-04066-0637)

$44.99

$

In Stock, only 1 left!

0

31

Troy-Bilt 1916796001

Support Bracket-engine, right side
(Superseded to 786-04067-0637)

$26.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 1100799

Screw-hex hd., 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

36

MTD 1917131

Decal-Stabilization

$

$

Not available
