12183 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121831100101 - 121831199999) Bolo Tines, Wheels Parts Diagram

Pony Rear-Tine Tiller

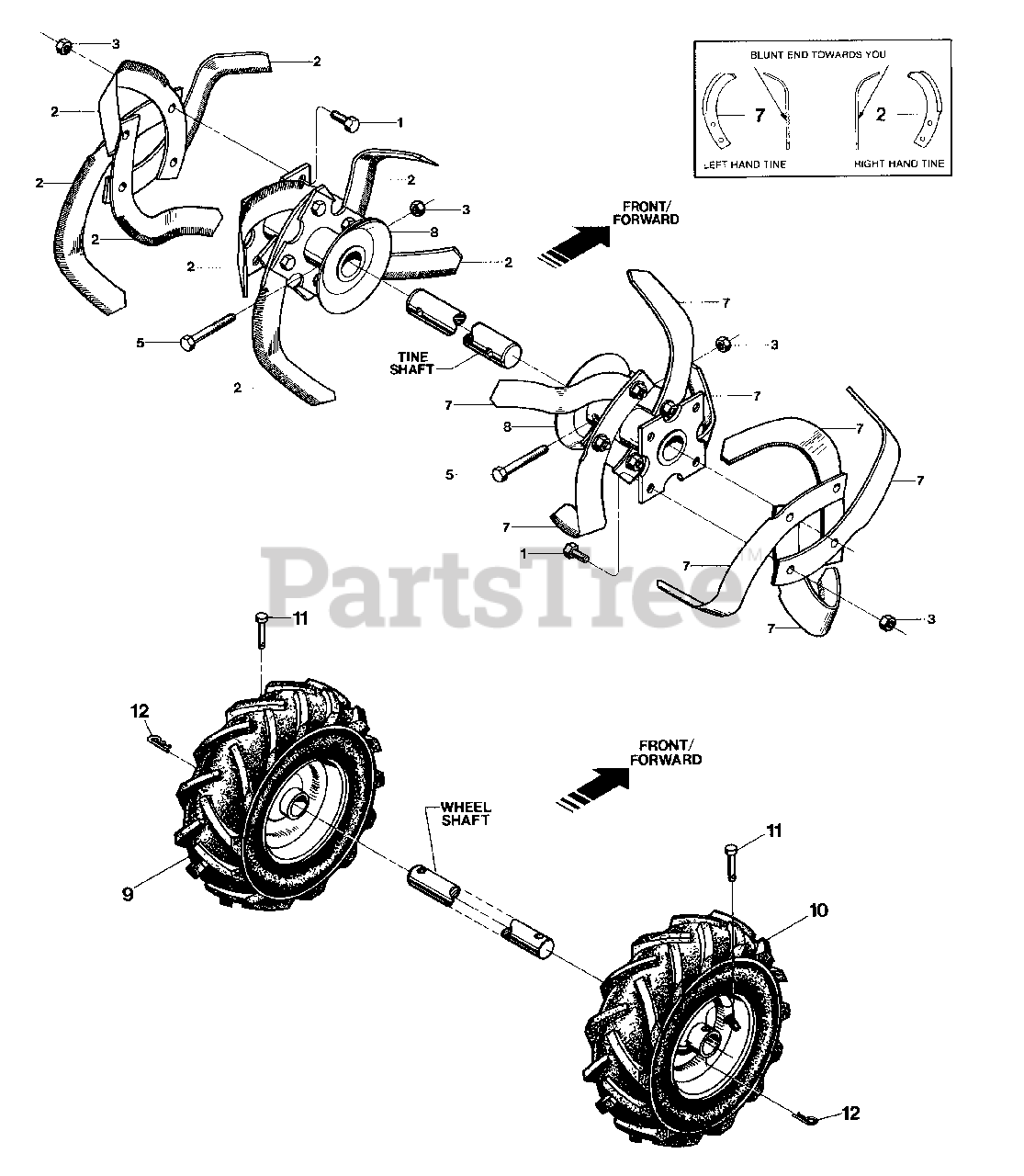

Bolo Tines, Wheels Parts Diagram

  • Title

1

Troy-Bilt 1100043

Screw-hex hd., 3/8-16 x 1-1/4
(Superseded to 710-3005)

Note: Specify GRADE 5 if ordering part locally.

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 1270-2A

Bolo Tine-single, right hand tine
(Superseded to 742-04118-0637)

Note: Used on left side of tiller

$

$

Not available

3

Troy-Bilt 1733398

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

5

Troy-Bilt 1982612

Screw-hex hd., 3/8-16 x 2, GRADE 8
(Superseded to 710-3096)

$7.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1270-1A

Bolo Tine-single, left hand tine
(Superseded to 742-04119-0637)

Note: Used on right side of tiller

$

$

Not available

8

Troy-Bilt 1902154001

Tine Holder-
(Superseded to 686-04067-0638)

Note: For bolo tines, left and right sides

$102.99

$

In Stock, only 1 left!

0

Troy-Bilt 1901118

Replacement set of 16 Bolo Tines-
(Superseded to 1901118A)

Note: Includes eight each of right hand and left hand tines, and sixteen each of Ref. No.'s 1 and 3

$

$

Not available

9

MTD 2706-01

Wheel & Tire Assy-left side

$

$

Not available

10

MTD 2706-02

Wheel & Tire Assy-right side

$

$

Not available

11

Troy-Bilt 9380

Clevis Pin-.312 x 1-3/4 long
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

12

Troy-Bilt 9338

Hitch Pin
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0
