12181 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121811100101 - 121811199999) Wheel Shaft, Eccentric Shaft & Tiller Shaft Assemblies Parts Diagram

Pony Rear-Tine Tiller

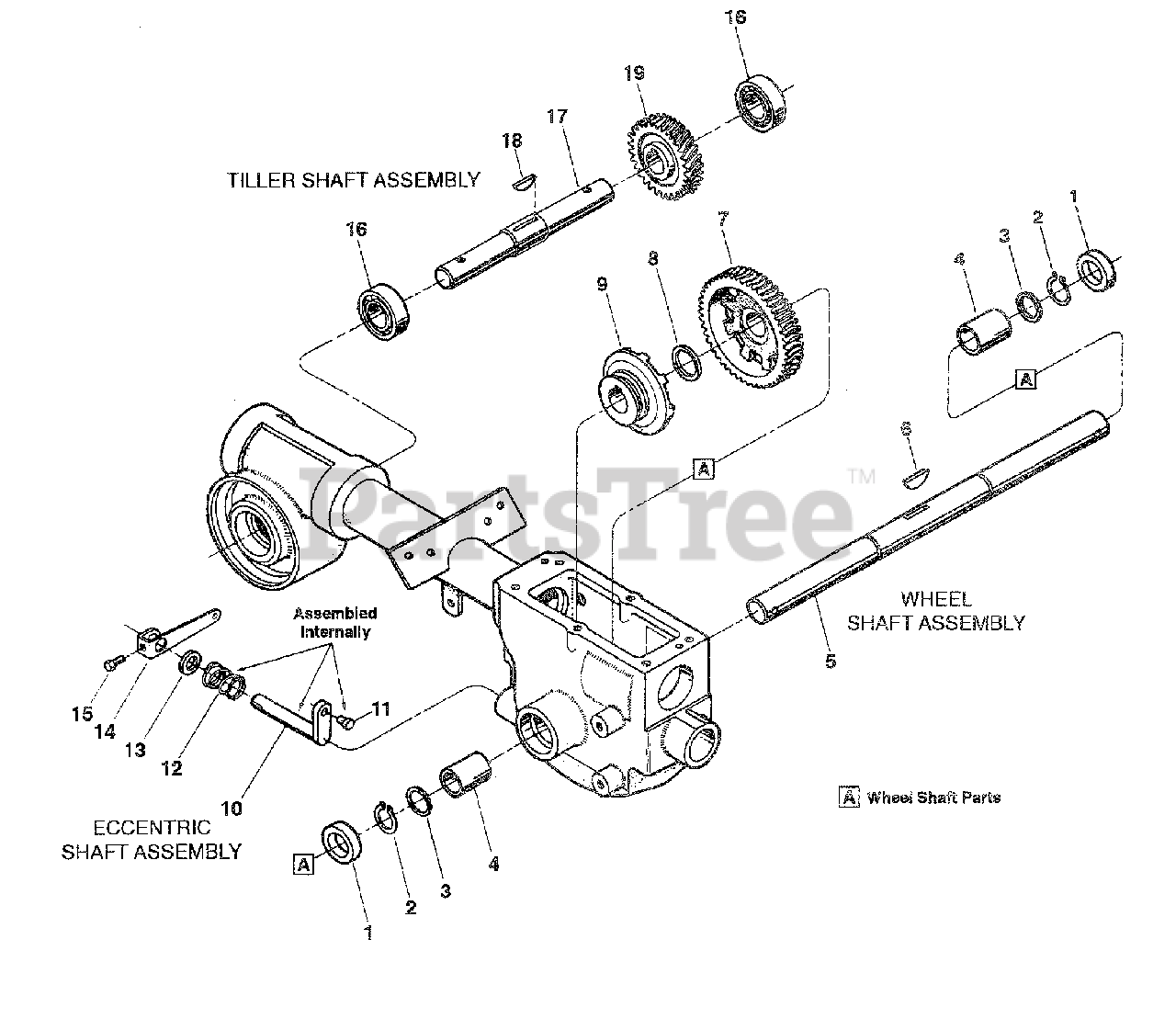

Wheel Shaft, Eccentric Shaft & Tiller Shaft Assemblies Parts Diagram

  • Title

1

Troy-Bilt 9621

Oil Seal-left and right sides
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 9511

Ring-retaining, heavy-duty, external
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 19

0

3

Troy-Bilt 1166-1

Shim-1-1/64 I.D., .062 thick
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-2

Shim-as above, but .030 thick
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 1166-3

Shim-as above, but .015 thick
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

Troy-Bilt 1166-4

Shim-as above, but .010 thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 14

0

4

Troy-Bilt 1086

Bushing
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 10

0

5

Troy-Bilt 2494

Wheel Shaft (axle)-
(Superseded to 753-05579)

Note: Incl. Ref. No. 6

$

$

Not available

6

Troy-Bilt 9373

Key-hi-pro (1/4 x 1-5/16), clutch to wheel shaft
(Superseded to GW-9373)

$10.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 20914

Gear-wheel drive (worm gear), cast iron
(Superseded to GW-20914)

$194.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 9935

Shim-between key and gear (1.016 I.D. x 1.468 O.D. x .062 thick)
(Superseded to GW-9935)

$3.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 20712

Clutch-wheel drive, cast iron
(Superseded to GW-20712)

$89.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 20879

Eccentric Shaft wheel clutch shifting
(Superseded to 611-04002)

$81.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 1442

Pin-eccentric shaft
(Superseded to 738-04448)

$8.49

$

In Stock, Qty 5

0

12

Troy-Bilt 9055

Spring
(Superseded to GW-9055)

$7.49

$

In Stock, only 1 left!

0

13

Troy-Bilt 9622

Oil Seal-eccentric shaft
(Superseded to 921-04034)

$10.99

$

In Stock, Qty 20+

0

14

MTD 20757

Lever-eccentric shaft

$

$

Not available

15

Troy-Bilt 11000804

Screw-hex hd., 1/4-20 x 1/2

$

$

Currently unavailable

16

Troy-Bilt 97074

Ball Bearing-
(Superseded to 941-3037)

Note: For tiller shaft

$41.99

$

In Stock, Qty 14

0

17

Troy-Bilt 20896

Tiller Shaft-
(Superseded to GW-20896)

Note: Incl. Ref No. 18

$110.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 1104

Key-woodruff, 1/4 x 1-1/4,
(Superseded to GW-1104)

Note: For tiller shaft/worm gear

$9.49

$

In Stock, only 1 left!

0

19

Troy-Bilt 20913

Worm Gear-bronze, tiller drive
(Superseded to GW-20913)

$201.99

$

Usually ships in 3-6 days

0

$

$

Not available
