12181 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121811100101 - 121811199999) Drive Shaft, Input Pinion Shaft & Gear Assemblies Parts Diagram

Pony Rear-Tine Tiller

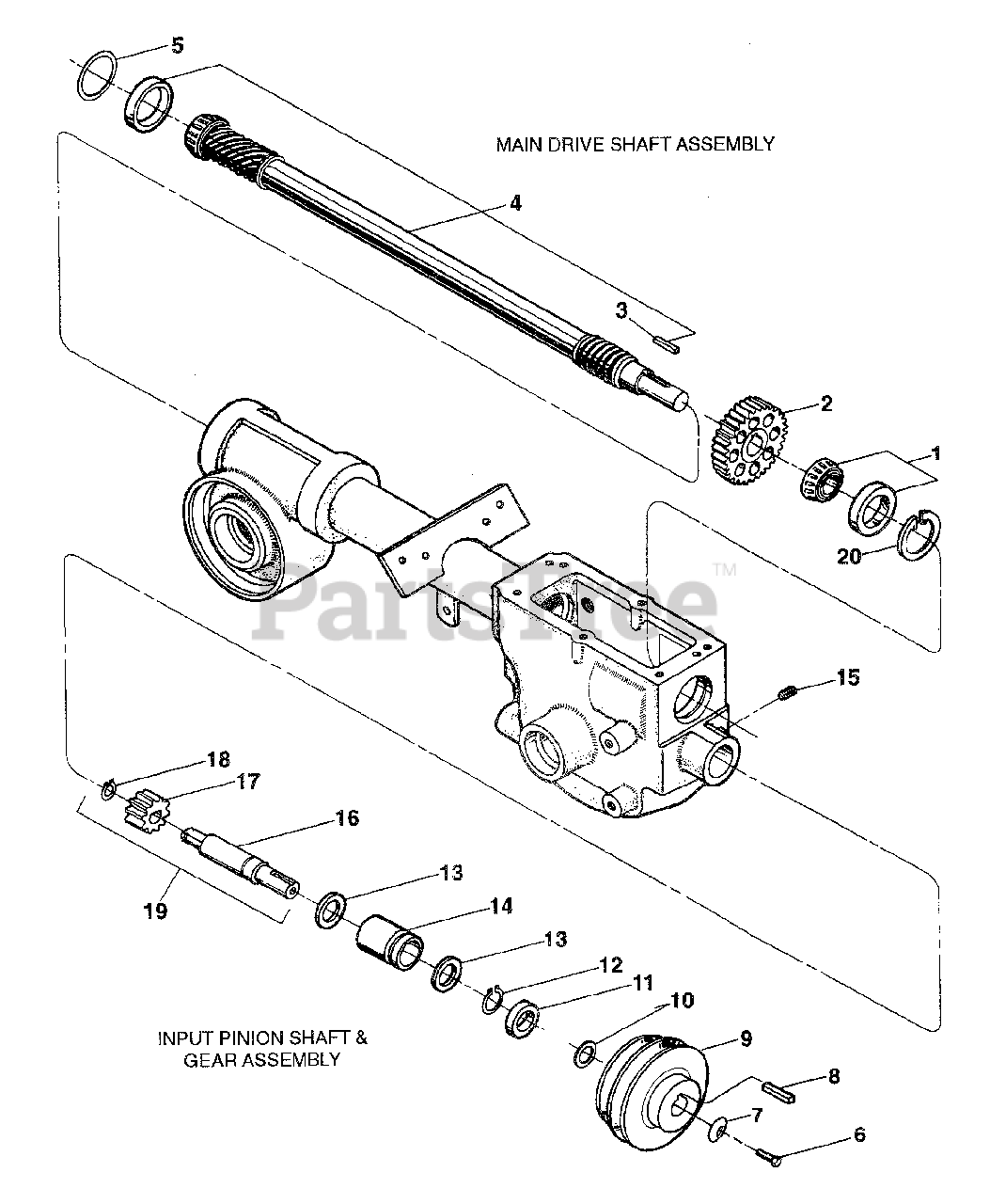

Drive Shaft, Input Pinion Shaft & Gear Assemblies Parts Diagram

  • Title
1

Troy-Bilt 1714

Bearing-tapered roller with race
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

2

Troy-Bilt 20718

Gear-spur, main drive shaft
(Superseded to 717-04690)

$39.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 9301

Key-3/16 sq. x 1
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

4

MTD 11603

Drive Shaft

Note: Main drive shaft is one-piece with integral, single-lead work-hardened worm at front to drive the wheel worm gear, and integral six-lead work-hardened worm at rear to drive the tiller gear (also includes pressed-on #1714 rear roller bearing, race for bearing and #9301 key)

$

$

Not available

5

Troy-Bilt 1224-1

Shim-rear bearing cap, .010 thick
(Superseded to 736-04308)

Note: Shim between drive shaft rear bearing and rear bearing cap to achieve 5-to-10 thousandths of an inch (.005-.010) end play on drive shaft.

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1224-2

Shim-same as above, but .030 thick
(Superseded to 736-04307)

Note: Shim between drive shaft rear bearing and rear bearing cap to achieve 5-to-10 thousandths of an inch (.005-.010) end play on drive shaft.

$4.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 1224-3

Shim-same as above, but .005 thick
(Superseded to 736-04306)

Note: Shim between drive shaft rear bearing and rear bearing cap to achieve 5-to-10 thousandths of an inch (.005-.010) end play on drive shaft.

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1325C

Shim Set-
(Superseded to GW-1325C)

Note: Includes the following shims: two 1224-1; two 1224-2; one #1224-3

$15.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 9572

Screw-hex hd., 5/16-24 x 1-1/8
(Superseded to 710-0672)

$4.49

$

In Stock, Qty 18

0

7

Troy-Bilt 9944

Washer-disc spring (concave surface faces pulley)
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1108841

Key-3/16 sq. x 1-1/2
(Superseded to 914-0133)

$

$

Not available

9

Troy-Bilt 20880

Pulley-transmission drive

$

$

Currently unavailable

10

Troy-Bilt 1440

Washer-support
(Superseded to 736-04079)

$4.99

$

In Stock, Qty 7

0

11

Troy-Bilt 85030

Oil Seal-input pinion shaft, front.

$

$

Currently unavailable

12

Troy-Bilt 9500

Ring-retaining (snap ring), external
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 9953

Washer-thrust
(Superseded to GW-9953)

$

$

Not available

14

Troy-Bilt 9428

Bushing
(Superseded to GW-9428)

$37.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 9677

Set Screw-5/16-18 x 3/8
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

16

Troy-Bilt 20791

Input Pinion-steel shaft
(Superseded to 711-05388)

$84.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 20792

Gear-input pinion
(Superseded to 717-04689)

$22.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 9093

Retainer-snap ring, external
(Superseded to GW-9093)

$6.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 20799

Pinion Assy-
(Superseded to GW-20799)

Note: (Incl. one each of Ref. No.'s 16, 17 and 18

$

$

Not available

20

Troy-Bilt 9517

Retainer-snap ring, internal
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+
