12181 - Troy-Bilt Pony Rear-Tine Tiller (SN: 121811100101 - 121811199999) Bumper Attachment - PN 12593 Parts Diagram

Pony Rear-Tine Tiller

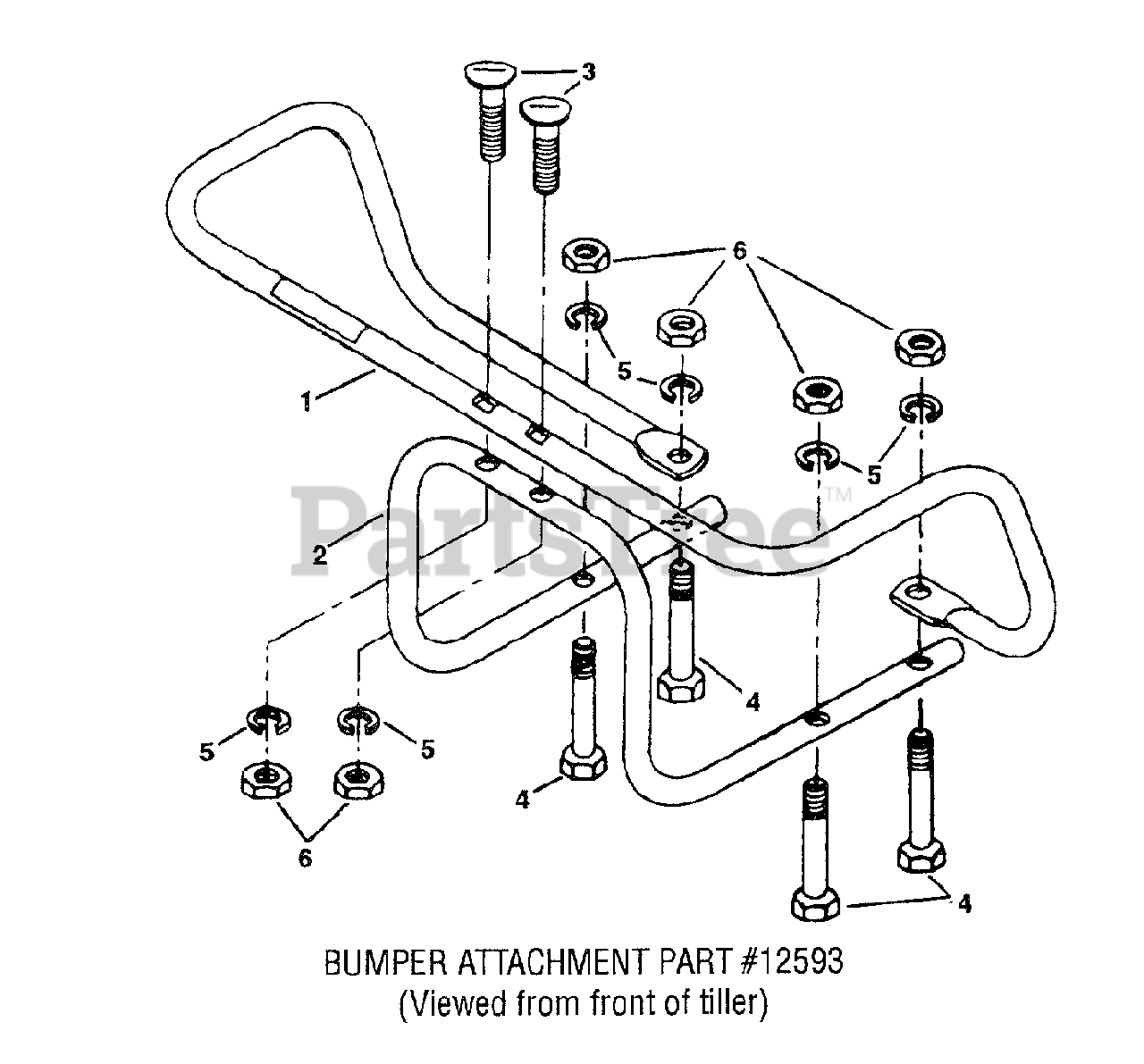

Bumper Attachment - PN 12593 Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

2

UNKNOWN

$

$

Not available

3

UNKNOWN

$

$

Not available

4

UNKNOWN

$

$

Not available

5

UNKNOWN

$

$

Not available

6

UNKNOWN

$

$

Not available

?19

Troy-Bilt 1904757001

Bumper-top section
(Superseded to 749-04193-0637)

$54.99

$

In Stock, Qty 6

0

?20

Troy-Bilt 1904758001

Bumper-bottom section
(Superseded to 749-04193-0637)

$54.99

$

In Stock, Qty 6

0

?21

Troy-Bilt 1731025

Bolt-curved head, 5/16-18 x 2 (special bolt)
(Superseded to 710-1174)

Note: Also see #1915811 hardware kit

$7.49

$

In Stock, Qty 20+

0

?22

MTD 1111608

Bolt-hex hd., 5/16-18 x 2-1/2,

Note: Not avail. separately (order #1915811 hardware kit; Specify GRADE 5 if ordering part locally.

$

$

Not available

?23

Troy-Bilt 1100242

Lockwasher-5/16,
(Superseded to 936-0119)

Note: Not avail. separately (order #1915811 hardware kit

$4.99

$

In Stock, Qty 20+

0

?24

Troy-Bilt 1186230

Nut-hex, 5/16-18,
(Superseded to 912-3010)

Note: Not avail separately (order #1915811 hardware kit

$4.49

$

In Stock, Qty 20+

0

MTD 1915811

Hardware Kit:

Note: Two #1731025 curved head bolts; four #1111608 hex hd. bolts; six #1100242 lock washers; six #1186230 hex nuts

$

$

Not available

12593

Troy-Bilt 12593

Bumper Attachment

$

$

Currently unavailable
