12181 (21A-530-081) - Troy-Bilt Pony Rear-Tine Tiller (SN: 1100101 - 1199999) Row Marker Attachment & Yoke Assembly Parts Diagram

Pony Rear-Tine Tiller

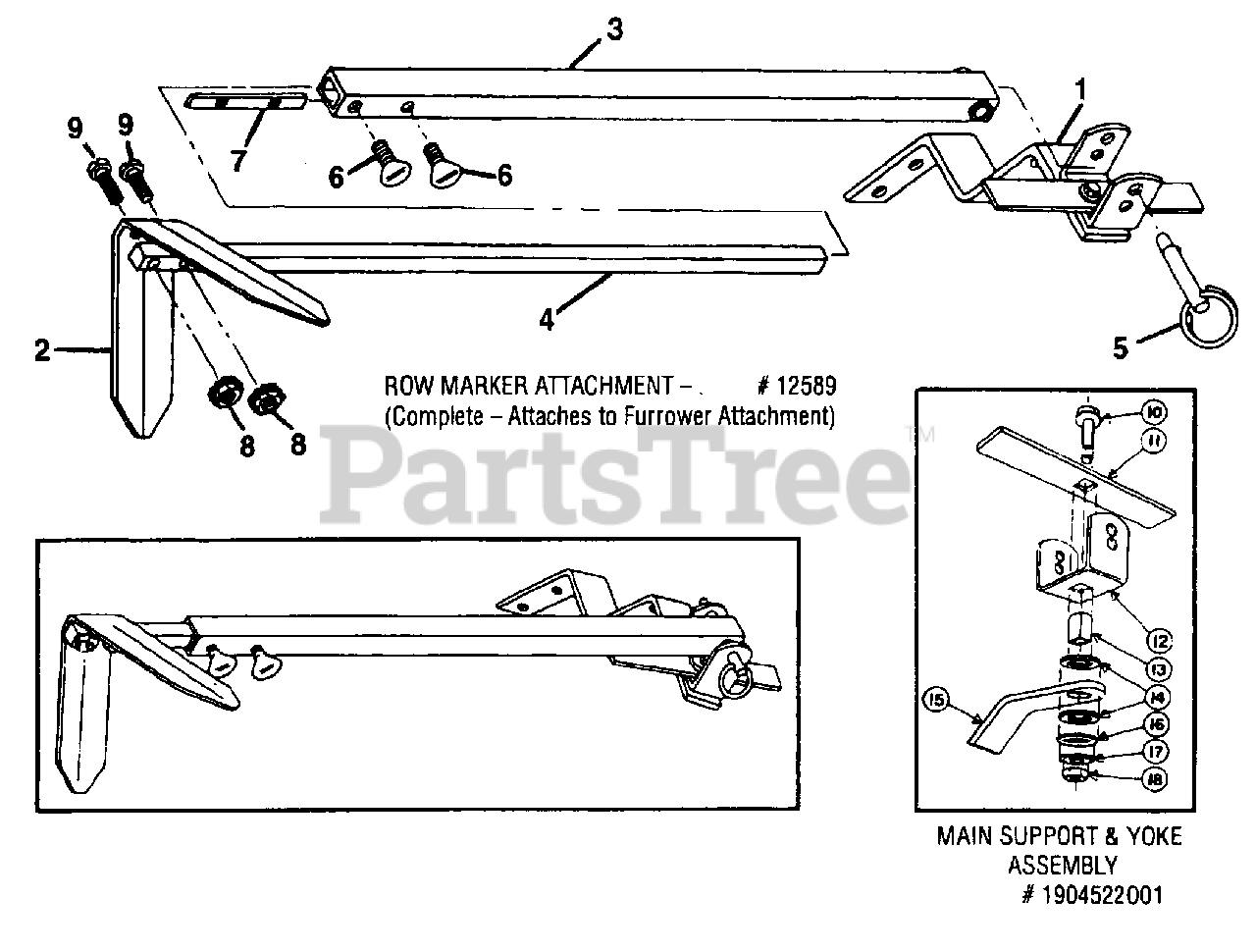

Row Marker Attachment & Yoke Assembly Parts Diagram

  • Title

Troy-Bilt 12589

Row Marker Attachment

$

$

Currently unavailable

1

Troy-Bilt 1904522001

Main Support & Yoke Assy- complete.

Note: (Incl. Ref. No.'s 10,11,12,13,14,15,16,17 & 18.)

$

$

Currently unavailable

2

MTD 1594

Marker Blade-blade only

$

$

Not available

3

MTD 1904524001

Marker Arm-main arm

$

$

Not available

4

MTD 1904523001

Marker Arm-extension arm with stop pin

$

$

Not available

5

Troy-Bilt 9347

Hitch Pin
(Superseded to GW-9347)

Note: (Incl. in Hardware Pkg #1837)

$14.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 9786

Thumbscrew - 1/4-20 x 1/2

Note: (Not avail. sep.) (See hardware pkg. #1837)

$

$

Currently unavailable

7

MTD 1596

Nut Bar

Note: (Incl. in hardware pkg #1837)

$

$

Not available

8

MTD 9828

Nut-hex, 10-24

Note: (W/attached start washers, not avail. sep.)(See hardware pkg #1837)

$

$

Not available

9

Troy-Bilt 1100135

Screw-round hd., 10-24 x 1

Note: (Not avail. sep.)(See hardware pkg #1837)

$

$

Not available

MTD 1837

Hardware Package

$

$

Not available

Troy-Bilt 12582

Row Marker Attachment & Pony Hiller/Furrower Attachment- complete.

$

$

Currently unavailable

Troy-Bilt 12589

Row Marker Attachment - complete

$

$

Currently unavailable

10

Troy-Bilt 1186349

Screw- hex flanged locking, 3/8-16 x 1-1/2

Note: (Specify GRADE 5 if ordering part locally)

$3.99

$

Usually ships in 3-6 days

0

11

MTD 1593

Stop Bar

$

$

Not available

12

MTD 1592

Yoke

$

$

Not available

13

MTD 1591

Tube Key-square

$

$

Not available

14

Troy-Bilt 1590

Washer-friction
(Superseded to GW-1590)

$7.99

$

Usually ships in 3-6 days

0

15

MTD 1588

Main Support

$

$

Not available

16

MTD 1589

Washer-square hole

$

$

Not available

17

MTD 9925

Washer-disc spring

$

$

Not available

18

Troy-Bilt 1186231

Nut-hex 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0
