12181 (21A-530-081) - Troy-Bilt Pony Rear-Tine Tiller (SN: 1100101 - 1199999) Hood, Bracket & Depth Regulator Parts Diagram

Pony Rear-Tine Tiller

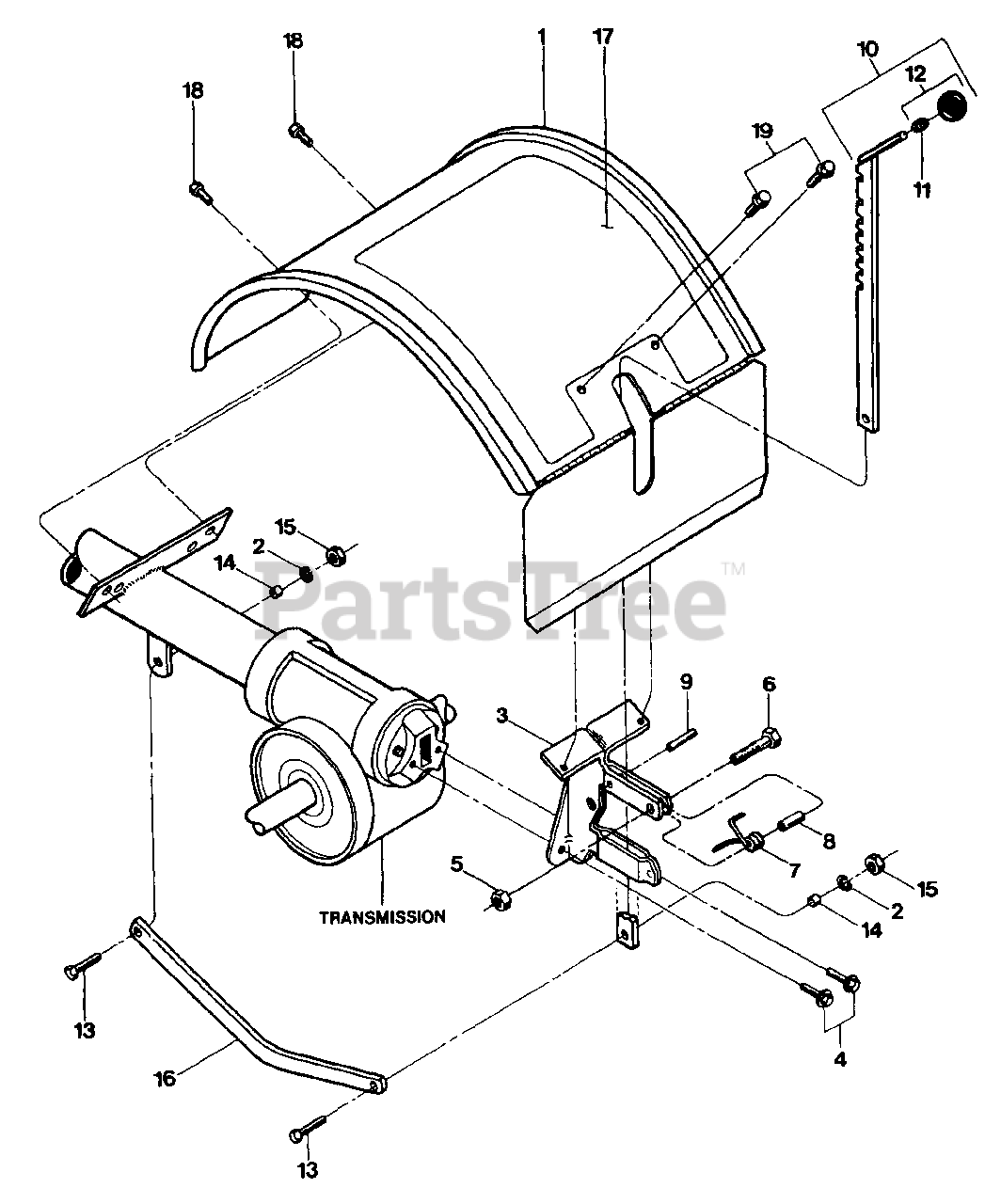

Hood, Bracket & Depth Regulator Parts Diagram

  • Title

1

Troy-Bilt 1917142

Hood-tine cover, with hinged flap
(Superseded to 686-04078-0638)

Note: (Incl. Ref. No. 17)

$184.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 1100243

Lockwasher-3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 2527

Bracket-hood & depth regulator
(Superseded to GW-2527)

Note: (Incl. Ref. No. 9)

$158.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 90038

Screw-flanged hex hd., 5/16-18 x 5/8

Note: (Specify Grade 5 if ordering locally.)

$

$

Currently unavailable

5

Troy-Bilt 9811

Locknut-hex, 1/4-20

$

$

Currently unavailable

6

Troy-Bilt 1100069

Screw-hex hd., 1/4-20 x 1
(Superseded to 710-0597)

Note: (Specify Grade 5 if ordering locally.)

$3.99

$

In Stock, Qty 14

0

7

Troy-Bilt 9384

Spring-depth regulator plunger
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 11

0

8

Troy-Bilt 9438

Spacer

$

$

Currently unavailable

9

Troy-Bilt 9308

Roll Pin-1/4 x 1 (spiral)
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

10

Troy-Bilt 1117A

Bar Assembly-depth adjustment
(Superseded to 1900864)

Note: (Incl. Ref. No's. 11 and 12)

$86.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 9120

Ring-retaining, tolerance ring
(Superseded to GW-9120)

$6.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 9119

Knob-depth regulator
(Superseded to GW-9119)

Note: (Incl. Ref. No. 11)

$11.99

$

In Stock, Qty 8

0

13

Troy-Bilt 1100043

Screw-hex hd, 3/8-16 x 1-1/4
(Superseded to 710-3005)

Note: (Specify Grade 5 if ordering locally.)

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1113-1

Bushing-spacer, drag bar
(Superseded to GW-1113-1099)

$5.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 1186231

Nut-hex, 3/8-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 20775

Drag Bar-depth regulator
(Superseded to 1916185001)

$

$

Not available

17

MTD 1916934

Decal-tiller operating instructions

$

$

Not available

18

Troy-Bilt 9553

Screw-hex hd, self-tapping, 5/16-18 x 1/2
(Superseded to 710-0607)

Note: (Specify Grade 5 if ordering locally.)

$6.99

$

In Stock, Qty 11

0

19

Troy-Bilt 9552

Screw-flanged hex hd, self-tapping, 1/4-20 x 1/2
(Superseded to 710-0599)

Note: (Specify Grade 5 if ordering locally.)

$4.49

$

In Stock, Qty 20+

0
