12181 (21A-530-081) - Troy-Bilt Pony Rear-Tine Tiller (SN: 1100101 - 1199999) Forward Idler Assembly Parts Diagram

Pony Rear-Tine Tiller

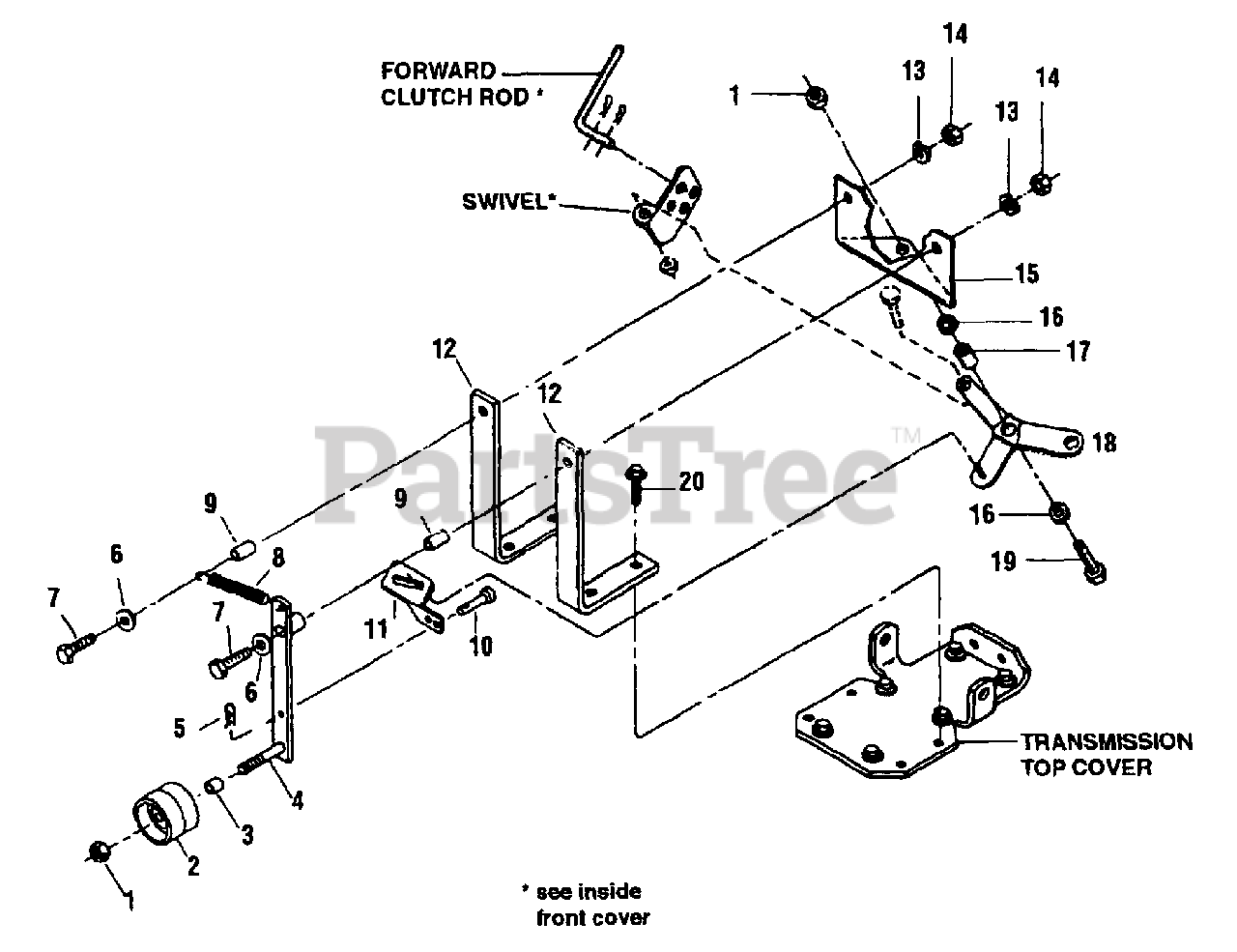

Forward Idler Assembly Parts Diagram

  • Title

1

Troy-Bilt 1110108

Locknut-hex, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

2

Troy-Bilt 9090

Pulley-idler, forward tiller
(Superseded to 756-04170)

$35.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 20532

Spacer
(Superseded to GW-20532)

$

$

Not available

4

MTD 20899

Idler Arm-left, forward tiller direction

$

$

Not available

5

Troy-Bilt 9338

Hairpin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0

6

MTD 20545

Washer-plain, 5/16

$

$

Not available

7

Troy-Bilt 1111607

Screw-hex hd., 5/16-18 x 2-1/4
(Superseded to 710-0395)

Note: (Specify GRADE 5 if ordering part locally)

$4.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 1492

Spring
(Superseded to GW-1492099)

$10.99

$

In Stock, only 3 left!

0

9

MTD 9479

Pivot Bushing

$

$

Not available

10

MTD 9340

Pin

$

$

Not available

11

MTD 20517-01

Forward Link

$

$

Not available

12

MTD 20751

Mounting Bar

$

$

Not available

13

Troy-Bilt 1100242

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 1186230

Nut-hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

15

MTD 20842

Shifting Base
(Superseded to GW-20842)

$

$

Not available

16

Troy-Bilt 20553

Spacer-Bushing
(Superseded to GW-20553)

$

$

Not available

17

Troy-Bilt 20532

Bushing-bellcrank
(Superseded to GW-20532)

$

$

Not available

18

Troy-Bilt 20838

Bellcrank
(Superseded to 1916196001)

$43.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 1100043

Screw-hex hd., 3/8-16 x 1-1/4
(Superseded to 710-3005)

Note: (Specify GRADE 5 if ordering part locally)

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 1186331

Screw-flanged hex hd., 5/16-18 x 1
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0
