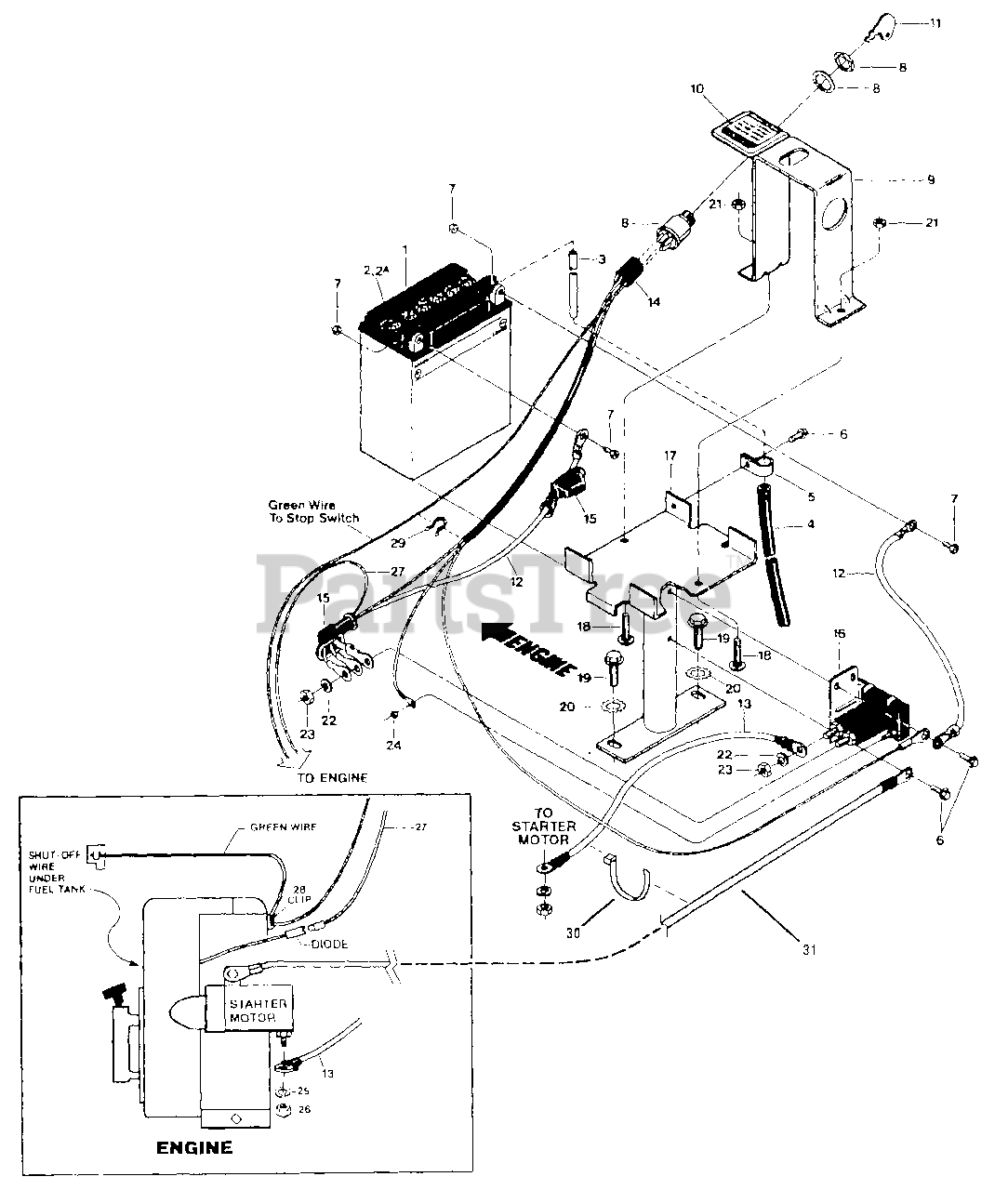

12181 (21A-530-081) - Troy-Bilt Pony Rear-Tine Tiller (SN: 1100101 - 1199999) Electric Start Assembly Parts Diagram

Pony Rear-Tine Tiller

Electric Start Assembly Parts Diagram

  • Title

1

MTD GW-96512

Battery-12 volt, 9 ampere

Note: (Incl. Ref. No. 7)

$

$

Not available

2

MTD 9462

Cap-battery, yellow replacement cap

$

$

Not available

2A

MTD 9248

Cap-battery, white replacement cap

$

$

Not available

3

MTD 9009

Vent Tube-battery

$

$

Not available

4

MTD 1475

Shield-vent tube (hard plastic)

$

$

Not available

5

MTD 9224

Clamp-vent tube shield

$

$

Not available

6

Troy-Bilt 9552

Screw-flanged hex hd., self-threading, 1/4-20 x 1/2
(Superseded to 710-0599)

Note: (Specify GRADE 5 if ordering part locally.)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 11361

Battery Hdwr Kit

Note: (Consists of two M6 x 11mm bolts and two M6 nuts (metric bolts and nuts))

$

$

Currently unavailable

8

Troy-Bilt 1908112

Switch, Ignition
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

9

MTD 1904570

Battery Hold-Down Clamp

Note: (With attached ignition switch mounting plate (Incl. decal, Ref. No. 10))

$

$

Not available

10

Troy-Bilt 1904548

Decal-ignition switch instructions
(Superseded to 777S30648)

$4.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 96520

Key-ignition, one pair
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

12

MTD 96509

Cable-battery

$

$

Not available

13

Troy-Bilt 96510

Cable-solenoid to starter motor
(Superseded to GW-96510)

$11.99

$

In Stock, only 1 left!

0

14

MTD 1908118

Wire Harness & Connecting Terminal Assy

Note: (Available as complete assembly only).

$

$

Not available

15

Troy-Bilt 97020

Boot-terminal insulating
(Superseded to GW-97020)

$

$

Not available

16

Troy-Bilt 96514

Solenoid
(Superseded to GW-96514099)

Note: (Includes nuts and washers for cables and wires)

$48.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 20837

Bracket-battery
(Superseded to GW-20837)

$

$

Not available

18

Troy-Bilt 1186023

Screw-round hd., square neck, 1/4-20 x 1-1/4

$

$

Currently unavailable

19

Troy-Bilt 1186331

Screw-flanged hex hd., 5/16-18 x 1
(Superseded to 710-04048)

Note: (Specify GRADE 5 if ordering part locally.)

$4.99

$

In Stock, Qty 7

0

20

Troy-Bilt 1177548

Lockwasher, external tooth
(Superseded to 736-0607)

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 1186389

Locknut-hex, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1100242

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1186211

Nut-hex, 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

24

Troy-Bilt 9853

Locknut-hex, #10-32
(Superseded to GW-9853)

$6.99

$

Usually ships in 3-6 days

0

25

Lockwasher-#10

Note: (Not available from factory)

$

$

Not available

26

Nut-hex, #10-24

Note: (Not available from factory)

$

$

Not available

27

Troy-Bilt 1901894

Wire Assembly-recharging

$

$

Not available

28

Troy-Bilt 9218

Clip-holds recharging line
(Superseded to GW-9218)

$

$

Not available

29

Troy-Bilt 9265

Tie - plastic, wire retaining
(Superseded to GW-9265)

$

$

Not available

30

Troy-Bilt 9202

Tie - plastic, wire retaining
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

31

Troy-Bilt 1901202

Cable - ground wire to starter motor bracket

$34.99

$

Usually ships in 3-6 days

0
