12180 (21A-520-081) - Troy-Bilt Bronco Rear-Tine Tiller Drive Shaft Assembly Parts Diagram

Bronco Rear-Tine Tiller

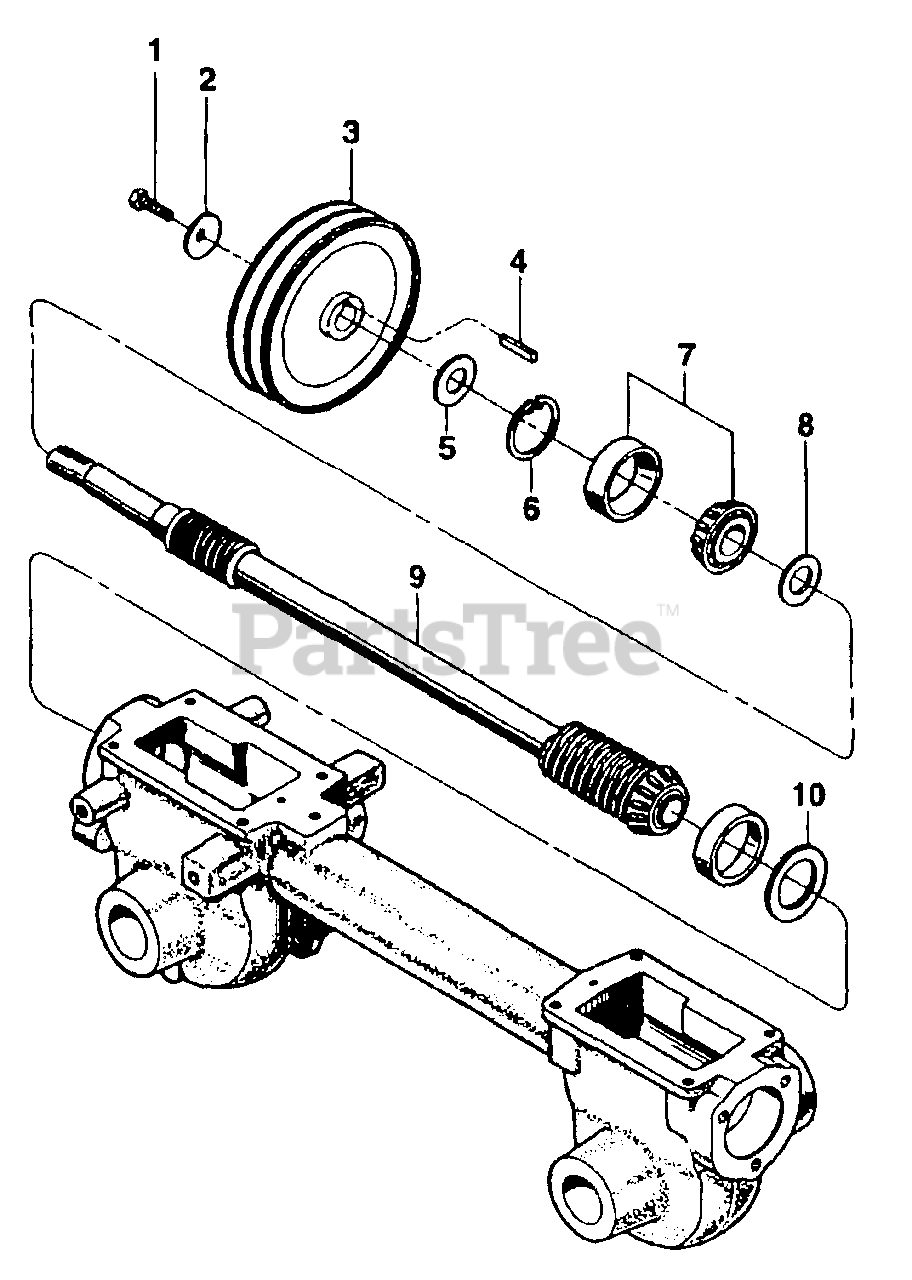

Drive Shaft Assembly Parts Diagram

  • Title

1

MTD 1100005

Hex Screw, 5/16-24 x 1, Grade 5

$

$

Not available

2

Troy-Bilt 9944

Washer, Belleville
(Superseded to 736-04193)

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 1916532

Pulley, Transmission
(Superseded to 656-04005A)

$

$

Not available

4

Troy-Bilt 9301

Key-Transmission Pulley, 3/16 x 1
(Superseded to GW-9301099)

$3.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 50027

Support Washer, Front
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

6

Troy-Bilt 9517

Snap Ring
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1714

Bearing, Tapered Roller (with race).
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 18

0

8

Troy-Bilt 50043

Support Washer, Rear
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 11

0

9

Troy-Bilt 1904281

Drive Shaft Assembly

$

$

Not available

10

Troy-Bilt 1224-1

Shim, Rear Bearing Cap, .010 thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1224-2

Shim, Same as above except .030 thick
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

Troy-Bilt 1224-3

Shim, Same as above except .005 thick
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 6

0

Troy-Bilt 1224-4

Shim, Same as above except .062 thick
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 16

0

Troy-Bilt 1325C

Shim Set
(Superseded to GW-1325C)

$15.99

$

In Stock, only 2 left!

0
