12180 (21A-520-081) - Troy-Bilt Bronco Rear-Tine Tiller Bolo Tines, Wheels Parts Diagram

Bronco Rear-Tine Tiller

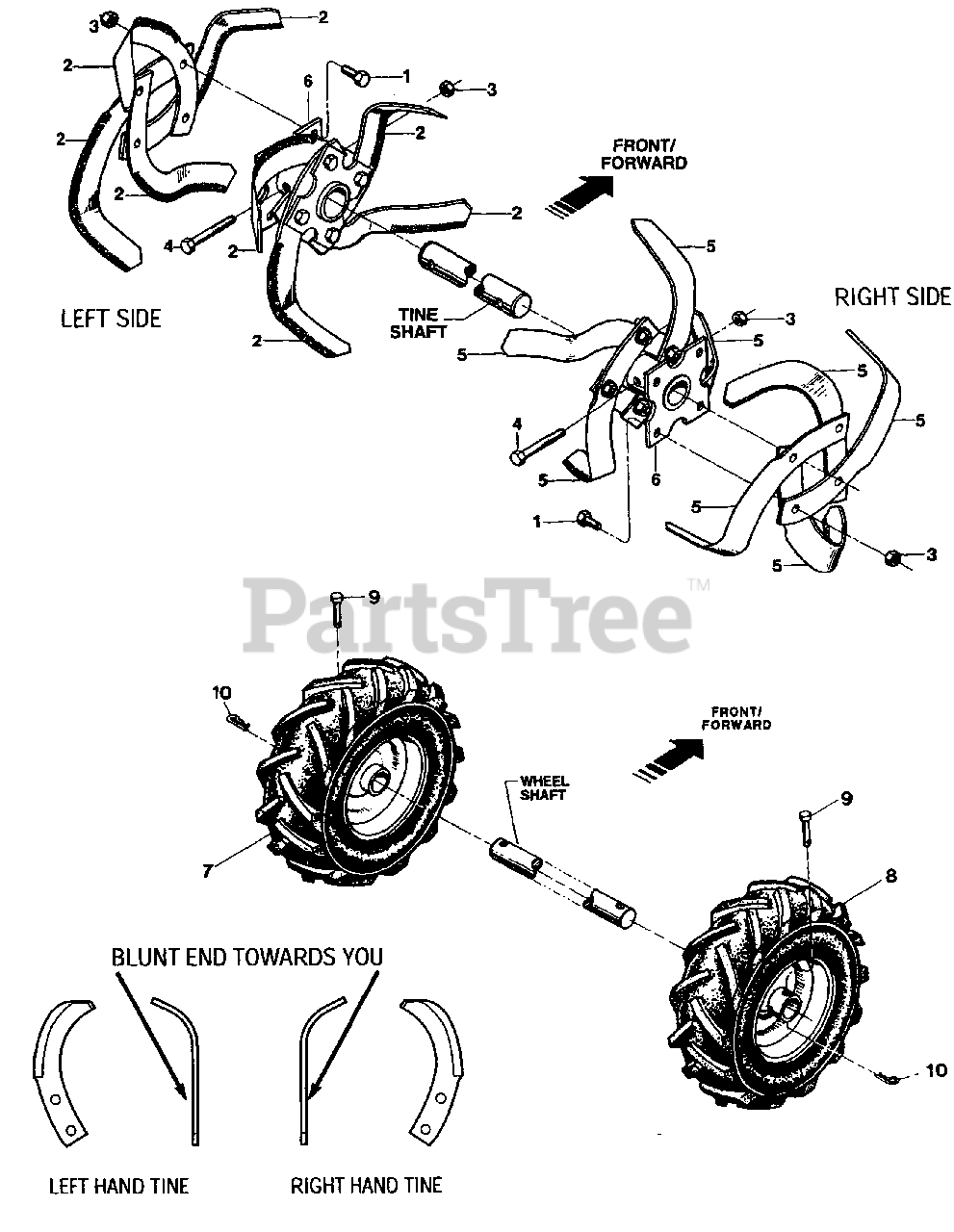

Bolo Tines, Wheels Parts Diagram

  • Title

1

Troy-Bilt 9711

Hex Screw, 3/8-16 x 1, Grade 5, Tine Mounting

$

$

Currently unavailable

2

Troy-Bilt 50049-01

Bolo Tine-Single, Right Hand tine
(Superseded to 742-04226-0637)

Note: (Used on left side of tiller.)

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1733398

Hex Locknut, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

4

MTD 9555

Hex Screw, 3/8-16 x 1-3/4

Note: (Tine holder to tiller shaft)

$

$

Not available

Troy-Bilt 1901

Replacement Set of 16 Bolo Tines
(Superseded to GW-1901)

$

$

Not available

5

Troy-Bilt 50049-02

Bolo Tine-Single, Left Hand tine
(Superseded to 742-04227-0637)

Note: (Used on right side of tiller.)

$16.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1916747001

Tine Holder
(Superseded to 686-05008-0637)

Note: (For bolo tines, left & right sides)

$41.99

$

Usually ships in 3-6 days

0

7

MTD 20918-01

Wheel & Tire Assy-Left Side
(Superseded to 634-04201-0911)

$

$

Not available

8

MTD 20918-02

Wheel & Tire Assy-Right Side
(Superseded to 634-04202-0911)

$

$

Not available

9

Troy-Bilt 9380

Clevis Pin - .312" x 1-3/4
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt 9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0
