12168 - Troy-Bilt Versatiller Rear-Tine Tiller (SN: 121681100101 - 121681199999) Wheels, Tines Assembly Parts Diagram

Versatiller Rear-Tine Tiller

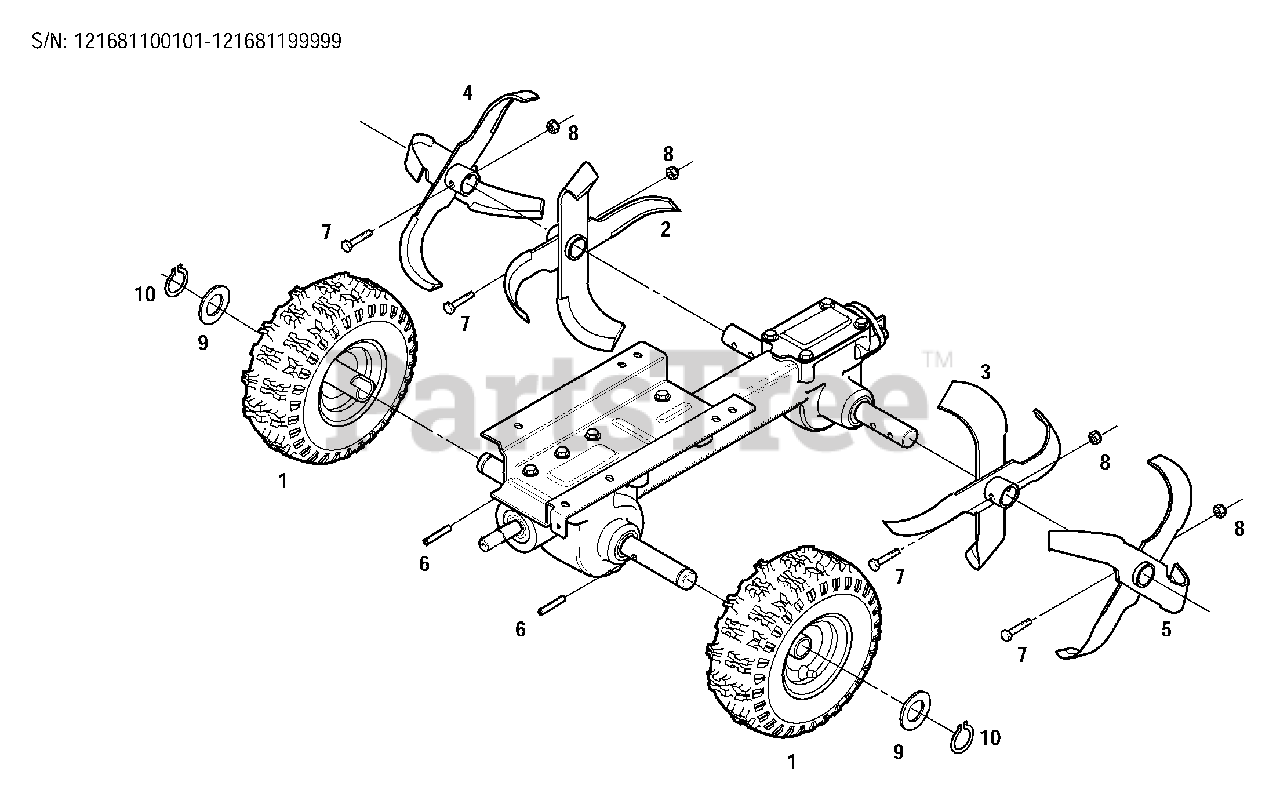

Wheels, Tines Assembly Parts Diagram

  • Title
1

MTD 1911343

Tire/Wheel Assy

$

$

Not available

2

MTD 1911388001

Tine Assy, R/H Inside

$

$

Not available

3

MTD 1911387001

Tine Assy, L/H Inside

$

$

Not available

4

MTD 1911389001

Tine Assy, R/H Outside

$

$

Not available

5

MTD 1911386001

Tine Assy, L/H Outside

$

$

Not available

6

Troy-Bilt 1915072

Spring Pin

$3.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1100799

Screw, Hex Head, 5/16-18
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1110107

Nut, Hex Lock, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

9

Troy-Bilt 1185816

Washer, 1.5 x 1.0 x .060

$3.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt GW-9511

Retaining Ring, External, .906
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0
