12168 - Troy-Bilt Versatiller Rear-Tine Tiller (SN: 121681100101 - 121681199999) Handlebar, Mounting Plate, Tine Hood Assembly Parts Diagram

Versatiller Rear-Tine Tiller

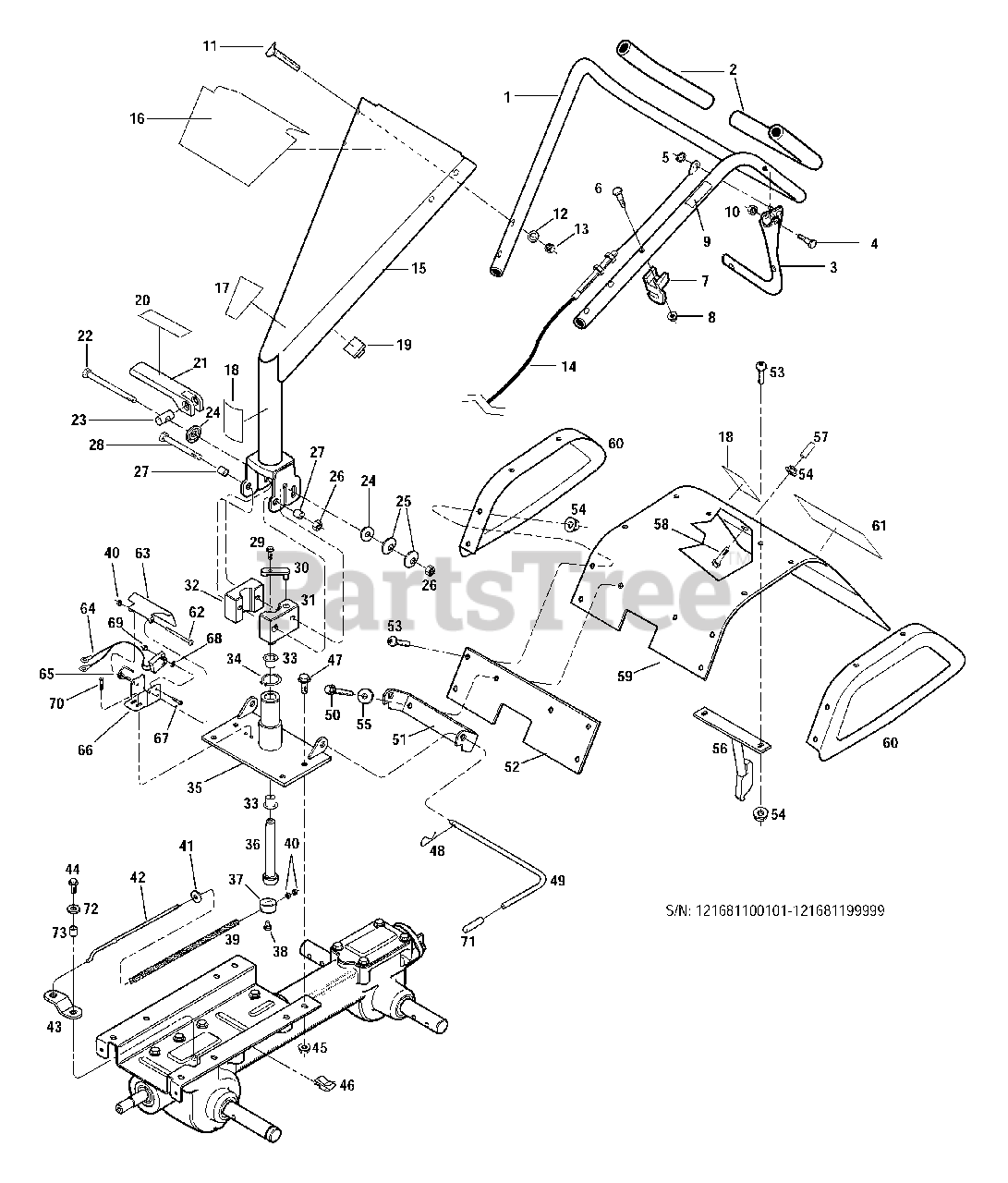

Handlebar, Mounting Plate, Tine Hood Assembly Parts Diagram

  • Title

1

MTD 1911457

Upper Handlebar

Note: (Incl. Ref. 2 & 9)

$

$

Not available

2

MTD 1915269

Upper Handlebar Foam Grip

$

$

Not available

3

MTD 1911383001

Bail-Control

$

$

Not available

4

Troy-Bilt 1100811

Screw, 1/4-20 x 1-1/2
(Superseded to 710-0606)

$5.49

$

In Stock, Qty 9

0

5

MTD 1911437

Ring-Grip, 1/4" ID

$

$

Not available

6

MTD 1983658

Screw, 1/4-20

$

$

Not available

7

Troy-Bilt 1749977

Bracket, Cable
(Superseded to 1749977001)

$

$

Not available

8

Troy-Bilt 1185814

Hex Nut, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

9

MTD 1911359

Decal, Bail

$

$

Not available

10

Troy-Bilt GW-9811

Hex Nut, 1/4-20 Nylon
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

11

Troy-Bilt GW-9854

Screw, Curved Head, 5/16-18 x 2
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

12

Troy-Bilt 1100242

Washer, Springlock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 1911440

Control Cable

$

$

Not available

15

MTD 1911458

Lower Handlebar

Note: (Incl. Ref. 15, 16, 17)

$

$

Not available

16

MTD 1911362

Decal, Handlebar Logo/Instruction

$

$

Not available

17

MTD 1911421

Decal, Horsepower

$

$

Not available

18

MTD 1911361

Decal, Tine Warning

$

$

Not available

19

MTD 1724879

Cord Clip

$

$

Not available

20

MTD 1911483

Decal, Locking Lever

$

$

Not available

21

MTD 1911368001

Locking Lever

$

$

Not available

22

Troy-Bilt 1915433

Locking Bolt, 3/8-16 x 4-1/4
(Superseded to 710-0693)

$14.99

$

In Stock, only 2 left!

0

23

MTD 1915434

Pivot

$

$

Not available

24

MTD 1915432

Washer-Heat Treated
(Superseded to 1911505)

$

$

Not available

25

94022

Washer-Belleville

$

$

Not available

26

Troy-Bilt 1110108

Hex Nut, 3/8-16, Nylock
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

27

MTD GW-9091

Bushing, 1/2" Dia

$

$

Not available

28

Troy-Bilt 1911403

Screw, Hex Head, 3/8-16 x 3-1/4

$

$

Not available

29

Troy-Bilt 1186310

Screw, 1/4-20 x 5/8 Self-Tapping

$3.99

$

Usually ships in 3-6 days

0

30

MTD 1915429

Engage/Disengage Arm

$

$

Not available

31

Troy-Bilt 1915431001

Clamp

$

$

Currently unavailable

32

Troy-Bilt 1915430001

Clamp

$

$

Currently unavailable

33

Troy-Bilt 1911381

Nylon Bushing
(Superseded to 941-0591)

$

$

Not available

34

Troy-Bilt 1118816

Retaining Ring-External
(Superseded to 716-0116)

$4.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 1915443001

Base Plate Weldment

$

$

Currently unavailable

36

Troy-Bilt 1915428

Shaft

$

$

Not available

37

MTD 1911352

Linkage Rod Holder

$

$

Not available

38

MTD 1911353

Bolt, 1/4 x 3/4

$

$

Not available

39

MTD 1911351

Spring, Compression

$

$

Not available

40

Troy-Bilt 1737938

Hex Lock Nut, #10-24
(Superseded to 1983039)

$

$

Not available

41

94019

Washer, Flat, .188

$

$

Not available

42

MTD 1911350

Adjusting Rod

$

$

Not available

43

MTD 1911365

Lever, Wheel Drive

$

$

Not available

44

Troy-Bilt 1186308

Hex Head Screw, 1/4-20 x 1/2
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 1186391

Hex Flange Lock Nut, 5/18-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

46

Troy-Bilt GW-9218

Wire Clip

$

$

Not available

47

Troy-Bilt 1186329

Screw, Hex Flange Lock, 5/16-18 x 3/4
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 97111

Hair Pin

$

$

Currently unavailable

49

MTD 1911379

Latch Pin

$

$

Not available

50

Troy-Bilt 1111600

Screw, 1/4-20UNC-2A x 7/8
(Superseded to 710-0206)

$4.49

$

Usually ships in 3-6 days

0

51

MTD 1911377010

Front Latch-Hood

$

$

Not available

52

MTD 1011438010

Hood Reinforcement Plate

$

$

Not available

53

Troy-Bilt 1911402

Screw, Button Head, 1/4-20 x 1/2

$

$

Not available

54

Troy-Bilt 1186389

Lock Nut

$3.49

$

Usually ships in 3-6 days

0

55

Troy-Bilt 1107381

Washer-Flat
(Superseded to 936-3020)

$

$

Not available

56

MTD 1911385010

Rear Post Weldment

$

$

Not available

57

MTD 1911472

Bumper, Caplug

$

$

Not available

58

MTD 1911473

Screw, Hex Head, 1/4-20 x 1-1/4

$

$

Not available

59

MTD 1911461010

Hood Assembly

$

$

Not available

60

MTD 1911336010

Hood Side

$

$

Not available

61

MTD 1911360

Decal, Hood Logo

$

$

Not available

62

MTD 1911467

Screw, #10-24 x 2-1/4

$

$

Not available

63

MTD 1915454001

Cover-Switch

$

$

Not available

64

MTD 1911428

Switch-Interlock

$

$

Not available

65

MTD 1911451

Spring, Switch

$

$

Not available

66

MTD 1915455001

Base-Switch

$

$

Not available

67

MTD 1911470

Screw, Hex Head, #6-32 x 3/4

$

$

Not available

68

MTD 1911469

Washer, Flat, #6

$

$

Not available

69

MTD 1911468

Nut, Sems, #6-32

$

$

Not available

70

Troy-Bilt 1186299

Screw, Hex Flange, #10-32
(Superseded to 710-04454)

$4.49

$

In Stock, only 4 left!

0

71

MTD 1718534

Grip, Handle

$

$

Not available

72

Troy-Bilt 1107381

Washer, Flat, 1/4
(Superseded to 936-3020)

$

$

Not available

73

Troy-Bilt 1911493

Spacer, 7/16 ID x 3/8 Lg

$

$

Currently unavailable
