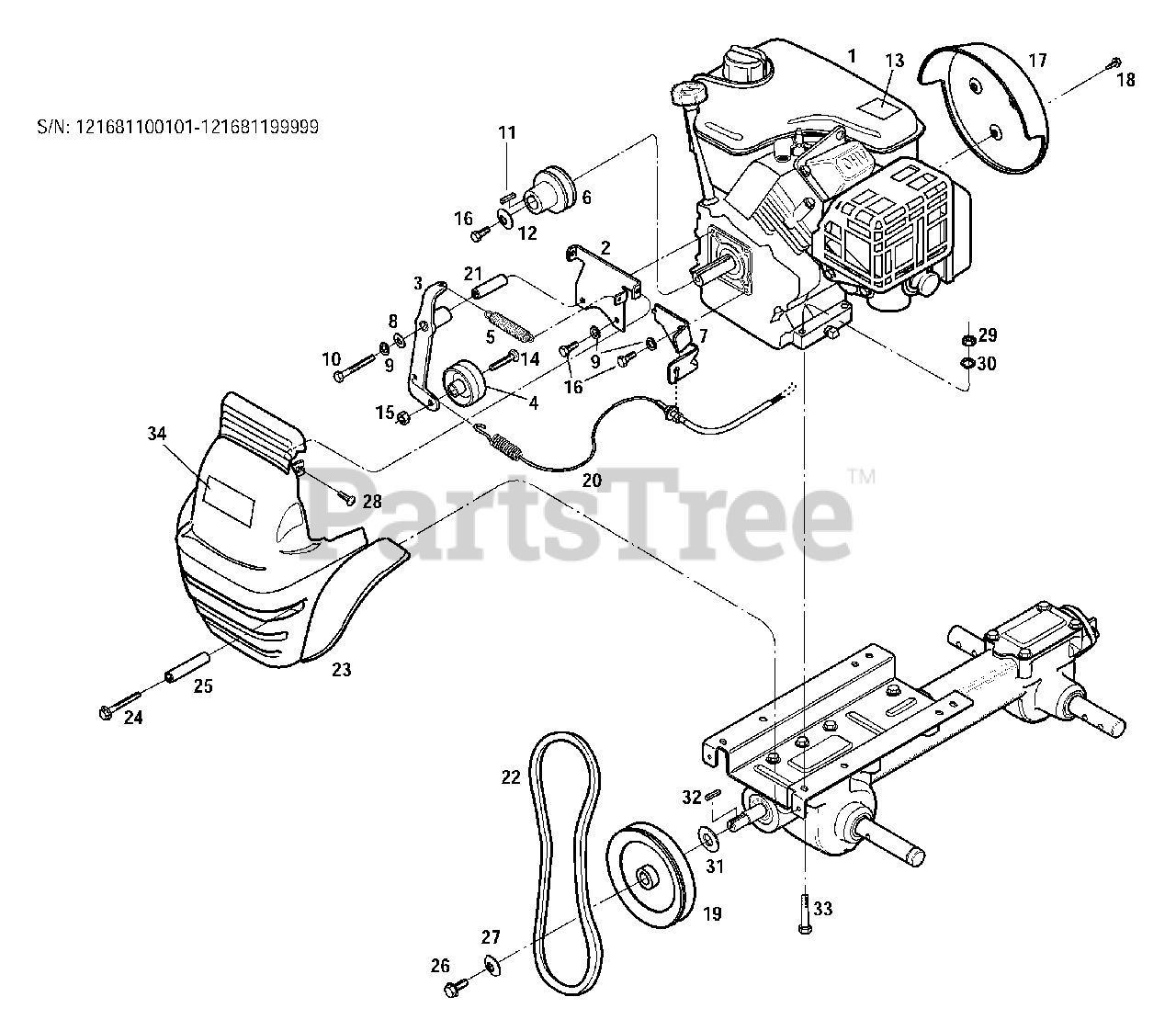

12168 - Troy-Bilt Versatiller Rear-Tine Tiller (SN: 121681100101 - 121681199999) Engine, Pulley & Shroud Assembly Parts Diagram

Versatiller Rear-Tine Tiller

Engine, Pulley & Shroud Assembly Parts Diagram

  • Title

1

Engine, 5HP OHV Tecumseh Enduro

Note: Order parts from your local Tecumseh engine dealer. Refer to engine for model/type

$

$

Not available

2

MTD 1911404001

Bracket, Belt Cover

$

$

Not available

3

MTD 1911398001

Idler Arm

$

$

Not available

4

MTD 1911412

Idler Pulley

$

$

Not available

5

MTD 1911371

Spring, Return

$

$

Not available

6

MTD 1911322

Engine Pulley

$

$

Not available

7

MTD 1911319001

Bracket, Cable Mount

$

$

Not available

8

MTD 20545

Washer .75 x .32 x .09 ZP

$

$

Not available

9

Troy-Bilt 1100242

Washer, Spring Lock 0.312
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1911439

Hex Hd. Screw, 5/16-24 x 2-1/2

$

$

Currently unavailable

11

Troy-Bilt GW-9301

Key, 3/16 x 1 Square

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt GW-9944

Lock Washer, Conical
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 19

0

13

MTD 1915810

Decal, Stabilization

$

$

Not available

14

Troy-Bilt 1911427

Button Head Screw, 3/8-16 x 1-3/4

$

$

Currently unavailable

15

Troy-Bilt 1110108

Hex Lock Nut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

16

Troy-Bilt 1100004

Screw, Hex Hd, 5/16-24 x 3/4
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

17

MTD 1911410

Recoil Cover

$

$

Not available

18

Troy-Bilt 90002

Screw, Hex Flange #8-18 x 3/8

$

$

Currently unavailable

19

Troy-Bilt 1911321

Transmission Pulley

$

$

Not available

20

MTD 1911440

Wheel Drive Cable

$

$

Not available

21

MTD 1911401

Bushing-Idler Arm

$

$

Not available

22

MTD 1911323

V-Belt

$

$

Not available

23

MTD 1911462

Belt Cover w/Fenders

$

$

Not available

24

MTD 1911423

Screw, 1/4-20 x 5/8, Self Tapping

$

$

Not available

25

MTD 1911422

Spacer

$

$

Not available

26

Troy-Bilt 1100004

Screw, Hex Hd 5/16-24 x 3/4
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 15

0

27

Troy-Bilt GW-9944

Belleville Washer
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 19

0

28

MTD 1911449

Screw, 1/4-20 x 1/2

$

$

Not available

29

Troy-Bilt 1100242

Lock Washer, .312
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 1186230

Hex Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 50027

Washer, 1.25 x .687 x .75
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

32

Troy-Bilt GW-9301

Key, 3/16 x 1 Square

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1100799

Screw, Hex Hd, 5/16-18
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

34

MTD 1911471

Decal, Logo

$

$

Not available
