12163 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 121631200101 - 121631299999) Tine Hood, Depth Regulator, And Drag Bar Parts Diagram

Tuffy Rear-Tine Tiller

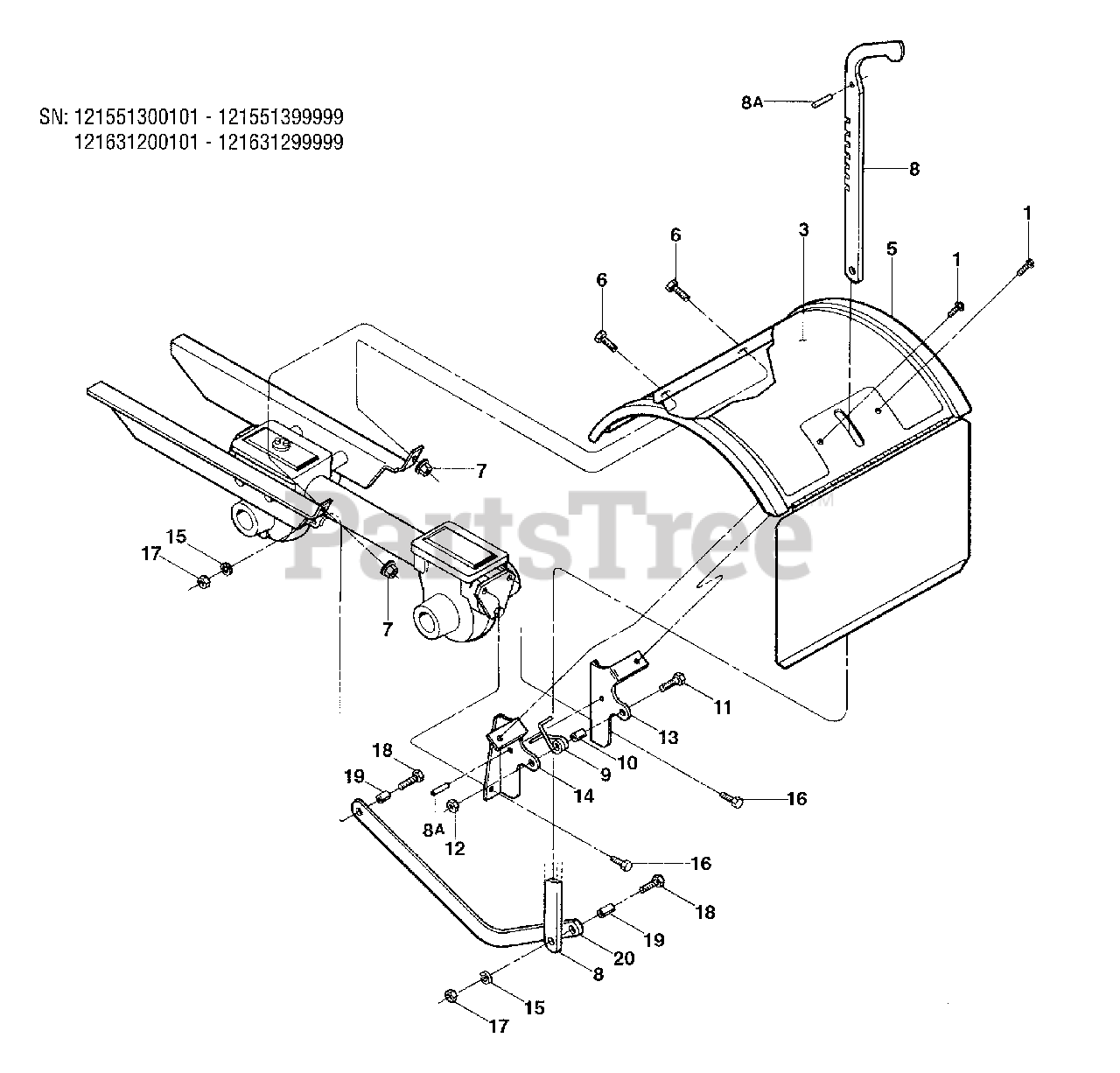

Tine Hood, Depth Regulator, And Drag Bar Parts Diagram

  • Title

1

Troy-Bilt 9552

Bolt-Fl. Hd., Self-Tap, 1/4-20 x 1/2"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

3

MTD 1904547

Decal-Hood

Note: Model 12155

$

$

Not available

Troy-Bilt 1916436

Decal-Hood

Note: Model 12163

$

$

Currently unavailable

5

Troy-Bilt 1904572

Tine Hood
(Superseded to 686-04076A-0638)

Note: Includes tine flap and Ref. No. 3.; Model 12155

$89.99

$

In Stock, only 3 left!

0

MTD 1916440

Tine Hood

Note: Includes tine flap and Ref. No. 3.; Model 12163

$

$

Not available

6

MTD 1100088

Bolt-Hex Hd., 5/16-18 x 1/2"

$

$

Not available

7

Troy-Bilt 1186391

Nut-Flange Lock, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1916118001

Depth Regulator Lever
(Superseded to 786-04292A-0638)

$66.99

$

Usually ships in 3-6 days

0

8A

Troy-Bilt 9308

Spirol Pin
(Superseded to 715-0108)

$4.99

$

In Stock, Qty 15

0

9

Troy-Bilt 9384

Spring-Depth Regulator
(Superseded to 732-04320)

$4.49

$

In Stock, Qty 11

0

10

Troy-Bilt 9534

Spacer
(Superseded to GW-9534)

$4.49

$

In Stock, Qty 9

0

11

Troy-Bilt 1100069

Bolt-Hex Hd., 1/4-20 x 1"
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

12

Troy-Bilt 9811

Locknut-Hex Hd., 1/4-20

$

$

Currently unavailable

13

Troy-Bilt 1916119001

Bracket-Hood, Right Hand
(Superseded to 786-04291-0638)

$

$

Not available

14

Troy-Bilt 1916120001

Bracket-Hood, Left Hand
(Superseded to 786-04290-0638)

$31.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 11000242

Lockwasher, 5/16"

$

$

Currently unavailable

16

Troy-Bilt 1186331

Bolt-Flanged Hd., 5/16-18 x 1"
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

17

Troy-Bilt 1186230

Nut-Hex Hd., 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 1100808

Bolt-Hex Hd., 5/16-18 x 1-1/4"

$

$

Not available

19

Troy-Bilt 55088

Bushing-Drag Bar
(Superseded to GW-55088)

$

$

Not available

20

Troy-Bilt 1916121001

Drag Bar
(Superseded to 786-04104-0638)

$36.99

$

In Stock, only 1 left!

0
