12163 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 121631200101 - 121631299999) Handlebars, Forward Clutch Cable, And Handlebar Mounting Hardware Parts Diagram

Tuffy Rear-Tine Tiller

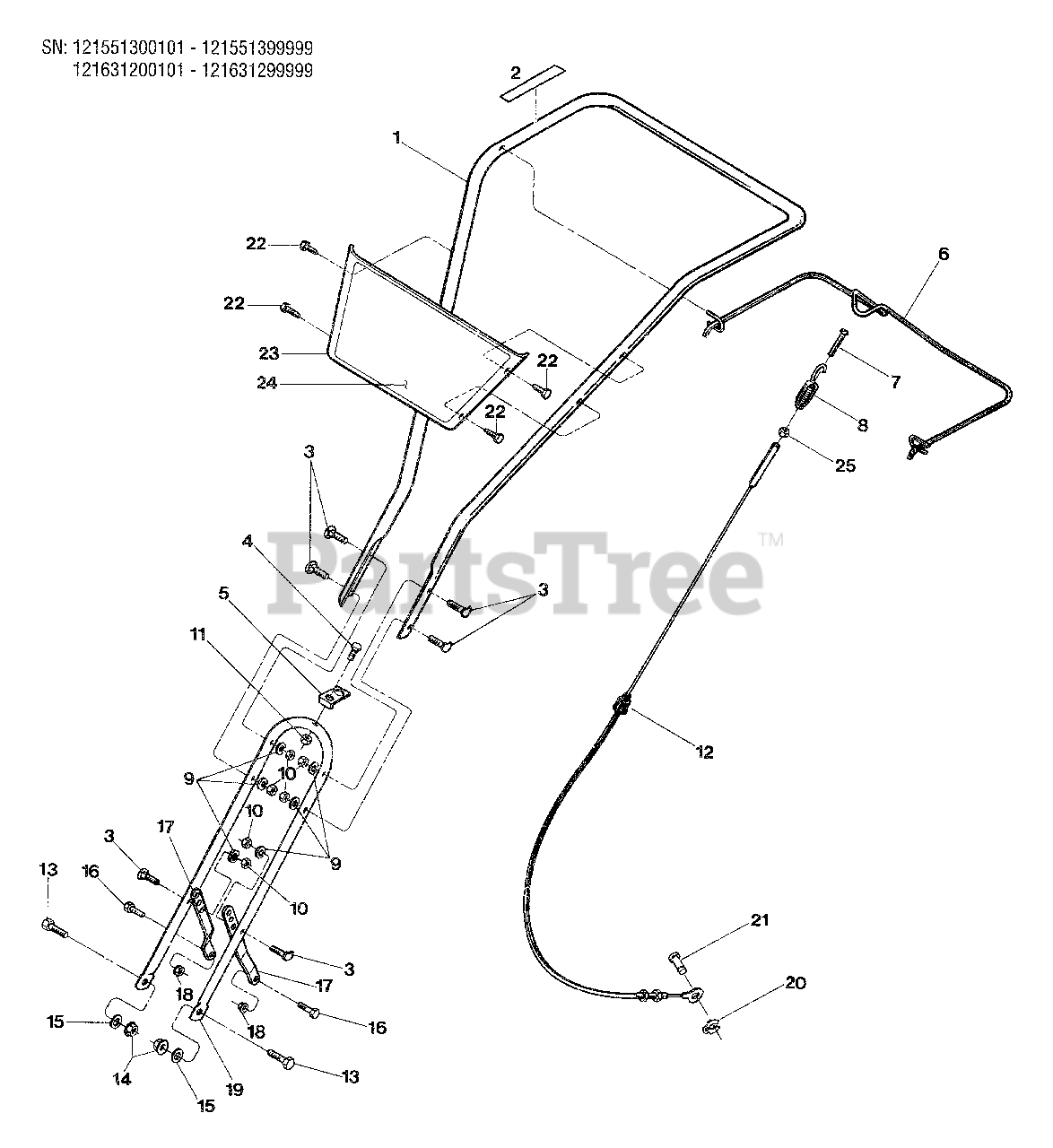

Handlebars, Forward Clutch Cable, And Handlebar Mounting Hardware Parts Diagram

  • Title
1

Troy-Bilt 55104

Handlebar, Upper
(Superseded to 749-04084-0638)

Note: Incl. Ref. 2; Model 12155

$

$

Not available

MTD 1901271

Handlebar, Upper

Note: Incl. Ref. 2; Model 12163

$

$

Not available

2

MTD 1916928

Decal-Forward Clutch Bail

$

$

Not available

3

Troy-Bilt 9854

Bolt-Curved Hd., 5/16-18 x 1-1/2
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1100806

Bolt-Hex Hd., 1/4-20 x 1-1/4
(Superseded to 710-0106)

$3.99

$

In Stock, Qty 12

0

5

Troy-Bilt 55044

Bracket, Cable
(Superseded to GW-55044)

$19.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1916106001

Bail-Forward Clutch

$51.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 9855

Screw, #10-24 x 2
(Superseded to 710-04163)

$

$

Not available

8

Troy-Bilt 55047

Spring-Forward Clutch
(Superseded to GW-55047)

$

$

Not available

9

Troy-Bilt 1100242

Lockwasher-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186230

Nut-Hex Hd., 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 9811

Nut-Hex Hd., Lock, 1/4-20

$

$

Currently unavailable

12

Troy-Bilt 55048

Cable Assy-Forward Clutch
(Superseded to GW-55048P)

$34.99

$

In Stock, Qty 19

0

13

Troy-Bilt 1100068

Bolt-Hex Hd., 3/8-16 x 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 14

0

14

Troy-Bilt 9837

Locknut-Hex Hd., 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

15

Troy-Bilt 1107383

Washer-Flat, 318
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

16

Troy-Bilt 1100044

Bolt-Hex Hd., 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 55081

Support, Handlebar
(Superseded to 1916107001)

Note: Model 12155

$

$

Not available

Troy-Bilt 1902173021

Support, Handlebar
(Superseded to 1916107001)

Note: Model 12163

$

$

Not available

18

Troy-Bilt 1110107

Locknut-Hex Hd., 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

19

Troy-Bilt 1902174021

Handlebar, Lower
(Superseded to 753-06459A)

$89.99

$

In Stock, Qty 9

0

20

MTD 9386

Klip Ring

$

$

Not available

21

MTD 9856

Clevis Pin

$

$

Not available

22

Troy-Bilt 9552

Screw-Hex Hd., 1/4-20 x 1/2, Self-Tapping
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1901273010

Panel

Note: Model 12155

$

$

Not available

Troy-Bilt 1901273021

Panel

Note: Model 12163

$

$

Currently unavailable

24

MTD 55097

Decal-Model Name/Logo

Note: Model 12155

$

$

Not available

Troy-Bilt 1916437

Decal-Model Name/Logo

Note: Model 12163

$

$

Currently unavailable

25

Troy-Bilt 1186227

Nut-Hex Hd., #10-24
(Superseded to 912-0121)

$4.49

$

In Stock, Qty 20+

0
