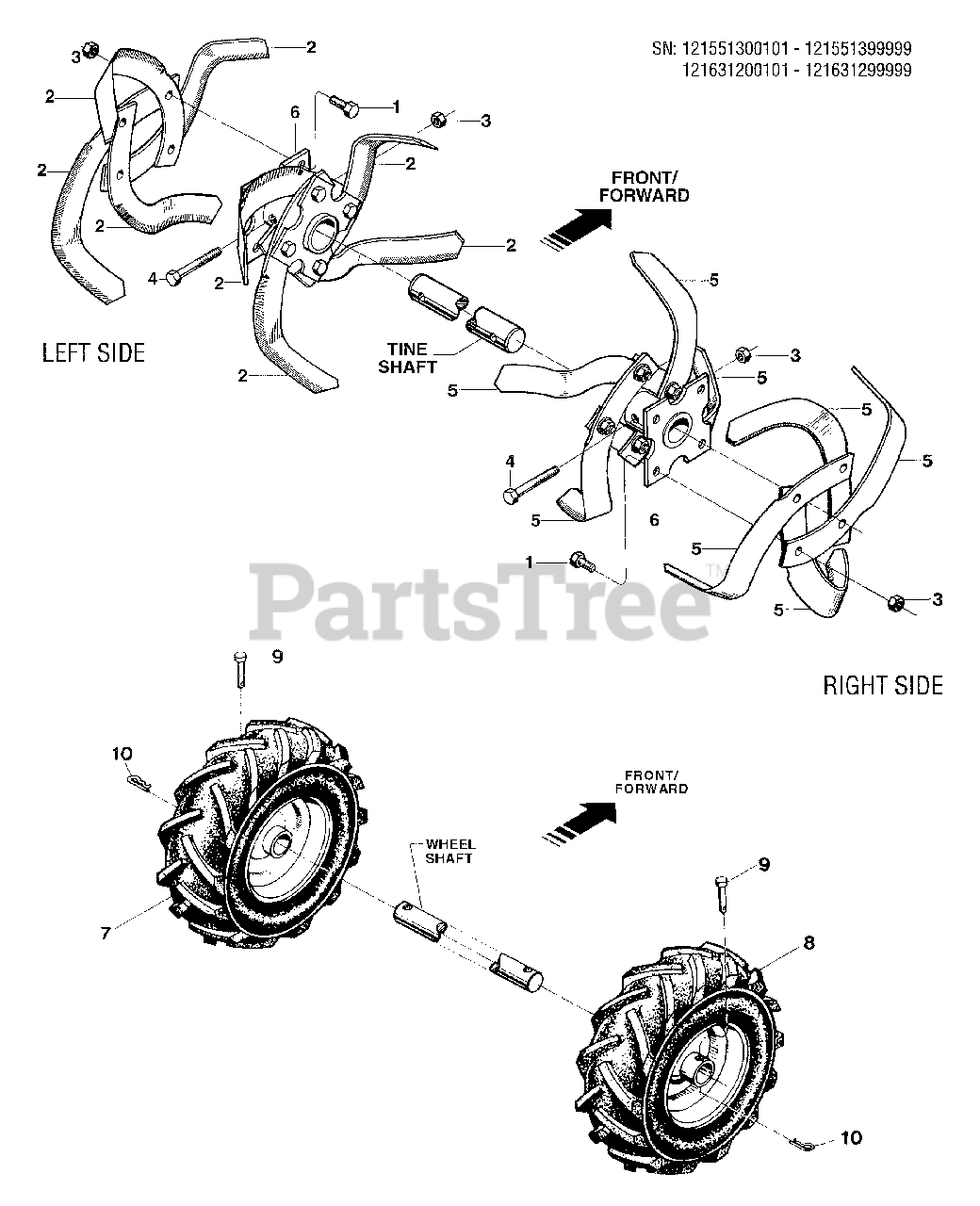

12155 - Troy-Bilt Tuffy Rear-Tine Tiller (SN: 121551300101 - 121551399999) Bolo Tines, Wheels Parts Diagram

Tuffy Rear-Tine Tiller

Bolo Tines, Wheels Parts Diagram

  • Title

1

Troy-Bilt 9711

Bolt-Hex Head, 3/8-16 x 1", Grade 5, Tine Mounting

$

$

Currently unavailable

2

Troy-Bilt 50049-01

Bolo Tine-Single, Right Hand tine used on left side of tiller
(Superseded to 742-04226-0637)

Note: Includes mounting hardware: two #9711 bolts (Ref No. 1) and two #1733398 lock nuts

$16.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 1733398

Locknut-Hex Hd., 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

4

MTD 9555

Bolt-Hex Hd., 3/8-16 x 1-3/4" (tine holder to tiller shaft)

$

$

Not available

Troy-Bilt 1901

Replacement Set of 16 Bolo Tines
(Superseded to GW-1901)

Note: Including eight right hand tines, eight left hand tines; and all required assembly hardware

$

$

Not available

5

Troy-Bilt 50049-02

Bolo Tine-Single, Left Hand tine used on right side of tiller
(Superseded to 742-04227-0637)

Note: Includes mounting hardware: two #9711 bolts (Ref No. 1), and two #1733398 lock nuts

$16.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1915075001

Tine Holder-for bolo tines, left and right sides
(Superseded to 686-04066-0638)

$58.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 55095-01

Wheel & Tire Assy-Left Side
(Superseded to 734-04162)

$

$

Not available

8

Troy-Bilt 55095-02

Wheel & Tire Assy-Right Side
(Superseded to 734-04161)

$

$

Not available

9

Troy-Bilt 9380

Clevis Pin-.312" x 1-3/4", secures wheel hub to wheel shaft
(Superseded to 711-04126)

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt 9338

Hair Pin Cotter
(Superseded to 714-04048)

$8.49

$

In Stock, only 2 left!

0
