12155 (21A-510-081) - Troy-Bilt Tuffy Rear-Tine Tiller Wheel Shaft & Tiller Shaft Assemblies Parts Diagram

Tuffy Rear-Tine Tiller

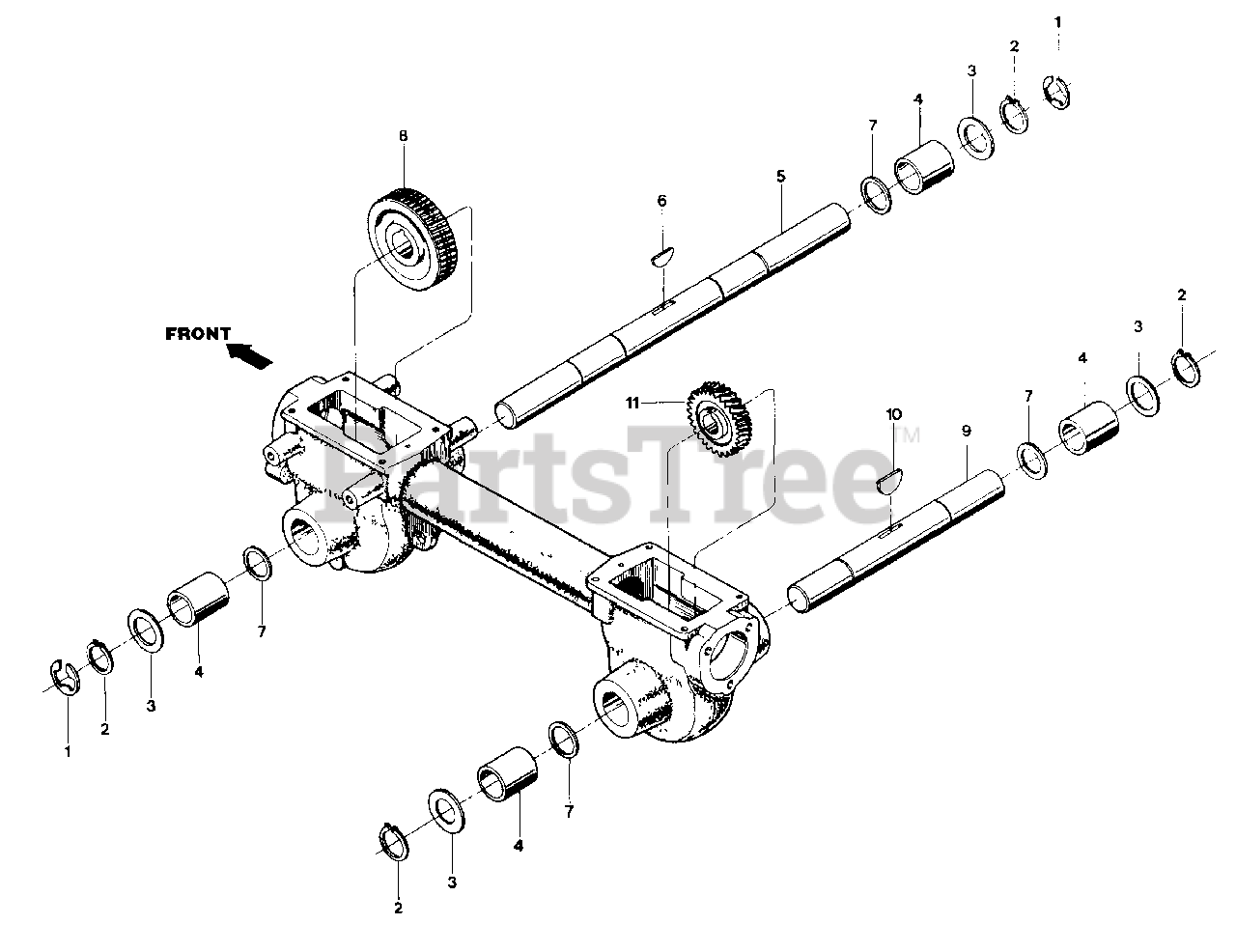

Wheel Shaft & Tiller Shaft Assemblies Parts Diagram

  • Title
1

Troy-Bilt 9512

Retainer - Snap Ring, "E" Type
(Superseded to GW-9512)

$3.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 9511

Retainer - Snap Ring
(Superseded to 716-04104)

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 1166-1

Shim 0.062" Thick
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1166-2

Shim 0.030" Thick
(Superseded to 736-04260)

$6.99

$

In Stock, only 2 left!

0

Troy-Bilt 1166-3

Shim 0.015" Thick
(Superseded to 736-04259)

$6.99

$

In Stock, Qty 5

0

Troy-Bilt 1166-4

Shim 0.010" Thick
(Superseded to 736-04258)

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt 1166-5

Shim 0.005" Thick
(Superseded to 736-04257)

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 1086

Bushing-Bronze
(Superseded to 941-04300)

$16.99

$

In Stock, Qty 6

0

5

Troy-Bilt 55004

Wheel Shaft
(Superseded to 753-05576)

$

$

Not available

6

Troy-Bilt 9305

Key - Wheel Shaft, Hi Pro, 1/4 x 1
(Superseded to 714-04059)

$6.99

$

In Stock, Qty 8

0

7

Troy-Bilt 1132-2

Spacer
(Superseded to 736-04310)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1904278

Worm Gear - Wheel Shaft
(Superseded to 917-04380)

$157.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 1915074

Tiller Shaft
(Superseded to 911-04078)

$141.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1104

Woodruff Key - Tiller Shaft
(Superseded to GW-1104)

$9.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 1904279

Worm Gear - Tiller Shaft
(Superseded to 917-04383)

$153.99

$

In Stock, only 2 left!

0
