12155 (21A-510-081) - Troy-Bilt Tuffy Rear-Tine Tiller Transmission Housing, Covers, Seals, Gaskets & Plug Parts Diagram

Tuffy Rear-Tine Tiller

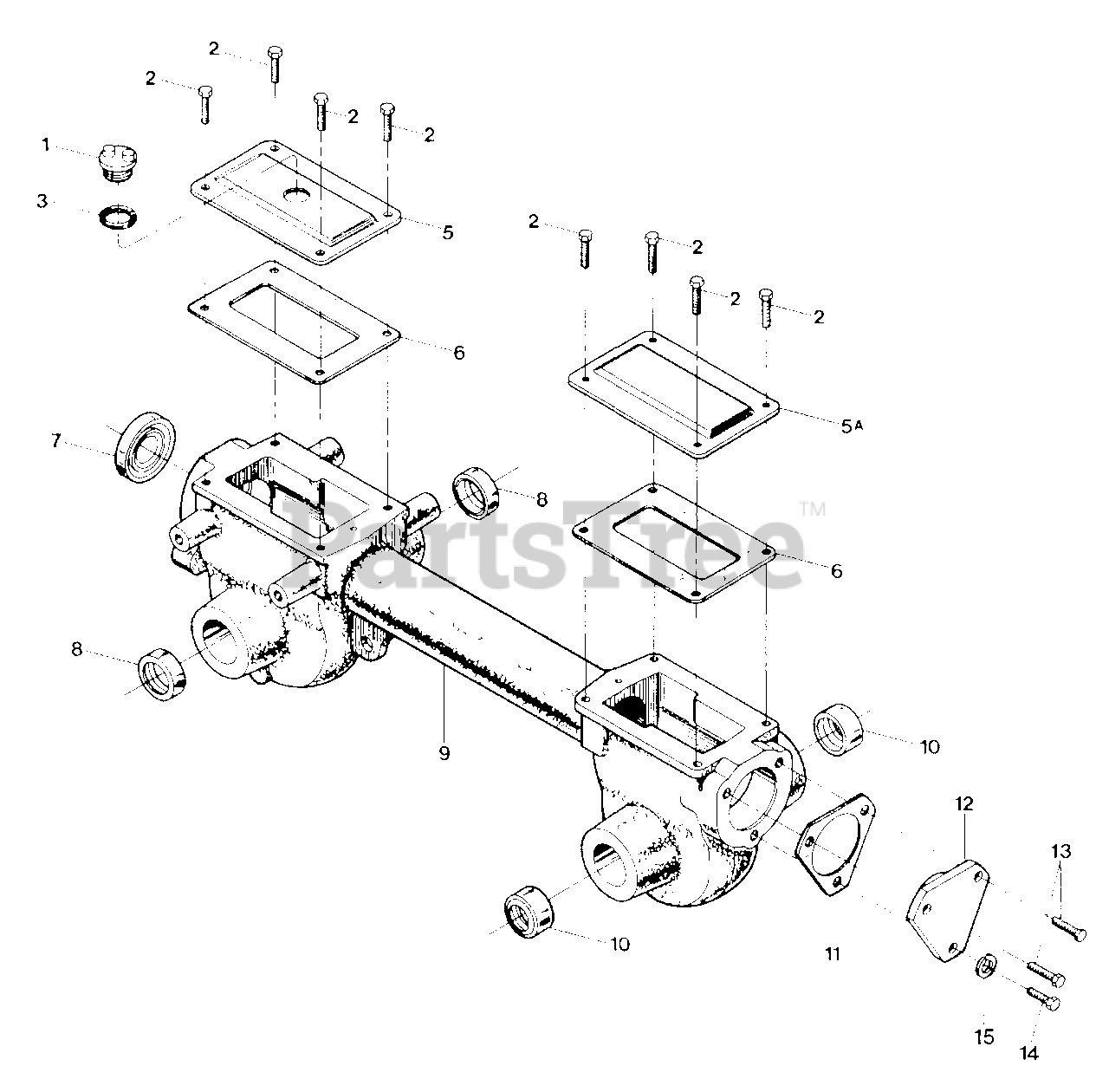

Transmission Housing, Covers, Seals, Gaskets & Plug Parts Diagram

  • Title

1

Troy-Bilt 9467

Plug - Transmission Oil Fill/Check
(Superseded to GW-9467)

$5.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 1186328

Bolt - Hex Hd., Flange Lock, 5/16-18 x 5/8", GR5
(Superseded to 710-04049)

$4.99

$

In Stock, Qty 11

0

3

Troy-Bilt 97037

Gasket - Transmission Oil Fill/Check Plug
(Superseded to GW-97037)

$

$

Not available

5

Troy-Bilt 55090

Cover - Transmission Housing Front

$

$

Currently unavailable

5A

Troy-Bilt 50074

Cover - Transmission Housing, Rear
(Superseded to 1916109001)

$

$

Not available

6

Troy-Bilt 50032

Gasket - Transmission Housing Cover
(Superseded to 921-04229)

Note: (Front and Rear)

$6.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 9617

Oil Seal - Driveshaft
(Superseded to 921-04030)

$12.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 9621

Oil Seal - Wheelshaft
(Superseded to 921-04031)

$10.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1915084010

Transmission Case, Rear Housing and Tube Assembly
(Superseded to 919-04013)

$211.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 1909374

Oil Seal - Tine Shaft
(Superseded to 921-04036)

$18.99

$

In Stock, Qty 20+

0

11

MTD 55011-1

Gasket - Bearing Cap

Note: (.010" thick)

$

$

Not available

MTD 55011-2

Gasket - Bearing Cap

Note: (.030" thick)

$

$

Not available

12

Troy-Bilt 55010

Cap - Rear Bearing
(Superseded to 918-04435)

$22.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1186331

Bolt - Flanged Hd., 5/16-18 x 1"
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

14

Troy-Bilt 1100044

Bolt - Flanged Hd., 5/16-18 x 3/4"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 1100242

Lockwasher, 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0
