12155 (21A-510-081) - Troy-Bilt Tuffy Rear-Tine Tiller Handlebars, Forward Clutch Cable & Handlebar Mounting Hardware Parts Diagram

Tuffy Rear-Tine Tiller

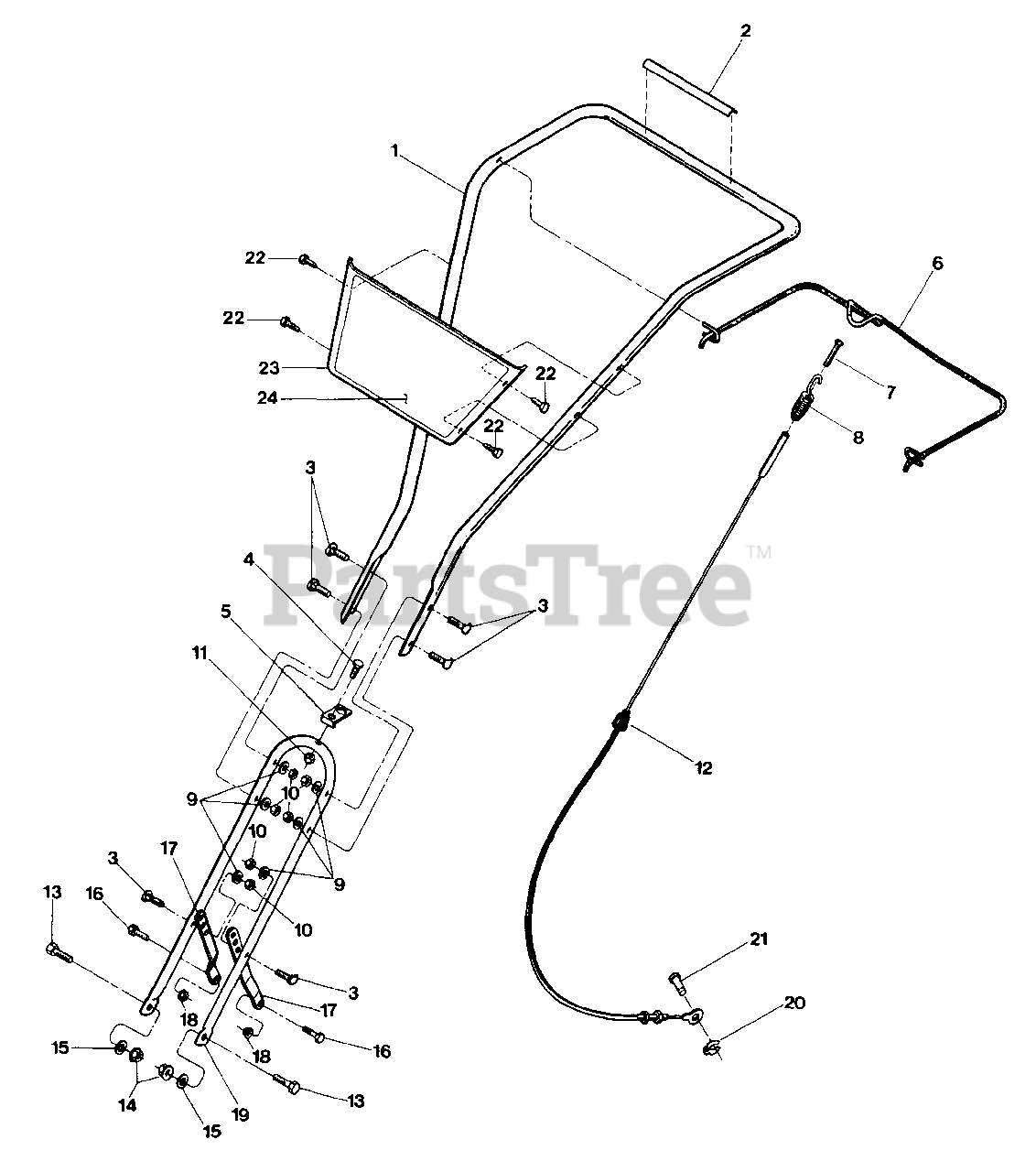

Handlebars, Forward Clutch Cable & Handlebar Mounting Hardware Parts Diagram

  • Title
1

Troy-Bilt 55104

Handlebar, Upper
(Superseded to 749-04084-0638)

Note: (Incl. Decal 1900765)

$110.99

$

Usually ships in 3-6 days

0

2

MTD 1900765

Decal-Forward Clutch Bail

$

$

Not available

3

Troy-Bilt 9854

Bolt-Curved Hd., 5/16-18 x 1-1/2"
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 1100806

Bolt-Hex Hd, 1/4-20 x 1-1/4"
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 55044

Bracket, Cable
(Superseded to GW-55044)

$19.99

$

Usually ships in 3-6 days

0

6

MTD 55046

Bail-Forward Clutch

$

$

Not available

7

Troy-Bilt 9855

Screw, 10-24 x 2"
(Superseded to 710-04163)

$

$

Not available

8

Troy-Bilt 55047

Spring-Forward Clutch
(Superseded to GW-55047)

$

$

Not available

9

Troy-Bilt 1100242

Lockwasher-5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186230

Nut-Hex Hd, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 1817146

Nut-Hex Hd., Lock, 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

12

Troy-Bilt 55048

Cable
(Superseded to GW-55048P)

Note: Assy-Forward Clutch

$34.99

$

In Stock, Qty 19

0

13

Troy-Bilt 1100068

Bolt-Hex Hd, 3/8-16 x 3/4"
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt 9837

Locknut-Hex Hd, 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

15

Troy-Bilt 9904

Washer-Flat, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

16

Troy-Bilt 1100044

Bolt-Hex Hd, 5/16-18 x 3"
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 55081

Support, Handlebar
(Superseded to 1916107001)

$

$

Not available

18

Troy-Bilt 1110107

Locknut-Hex Hd, 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

19

Troy-Bilt 55082

Handlebar, Lower

$

$

Currently unavailable

20

MTD 9386

Klip Ring

$

$

Not available

21

MTD 9856

Clevis Pin

$

$

Not available

22

Troy-Bilt 9552

Screw-1/4-20 x 1/2" Self-Tapping Hex Head
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

23

MTD 1901273010

Graphics Panel

$

$

Not available

24

MTD 55097

Decal-Troy-Bilt Tuffy

Note: (model name & logo)

$

$

Not available
