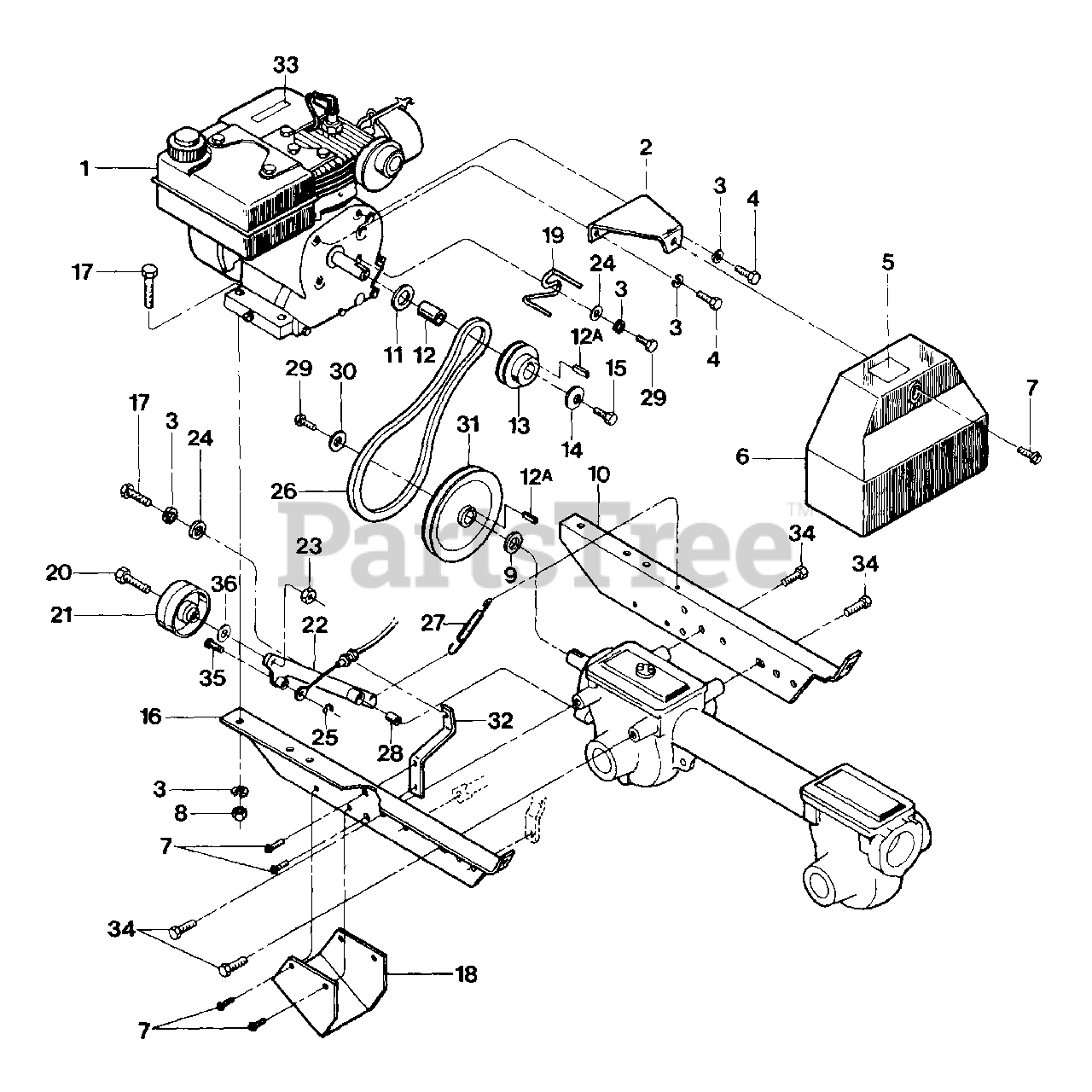

12155 (21A-510-081) - Troy-Bilt Tuffy Rear-Tine Tiller Engine, Engine Brackets & Forward Drive Mechanism Parts Diagram

Tuffy Rear-Tine Tiller

Engine, Engine Brackets & Forward Drive Mechanism Parts Diagram

  • Title

1

Engine - Tecumseh, recoil start

Note: Contact your local authorized engine service dealer for engine parts and service Refer to your engine nameplate for engine model/type number.

$

$

Not available

2

Troy-Bilt 55079

Bracket, Belt Cover
(Superseded to 1916112001)

$

$

Not available

3

Troy-Bilt 1100242

Lockwasher - 5/16"
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

4

MTD 1111696

Bolt - Hex Hd, 5/16-24 x 1/2"

$

$

Not available

5

MTD 1904549

Decal - Warning, Hot Surfaces

$

$

Not available

6

Troy-Bilt 1904573

Belt Cover

Note: (Includes decal 1904549)

$

$

Currently unavailable

7

Troy-Bilt 9552

Bolt - Flanged Hd, Self-Tapping, 1/4-20 x 1/2"
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 1186230

Nut - Hex Hd, 5/16-18"
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 50027

Support Washer
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

10

MTD 55077-2

Bracket, Engine, Right

$

$

Not available

11

Troy-Bilt 1138-2

Shim
(Superseded to 736-04192)

$6.99

$

In Stock, only 2 left!

0

12

MTD 55036

Spacer

$

$

Not available

12A

Troy-Bilt 9301

Key - 3/16" x 1"
(Superseded to GW-9301099)

$3.99

$

In Stock, only 3 left!

0

13

Troy-Bilt 55035

Pulley, Engine Driven
(Superseded to GW-55035)

$

$

Not available

14

MTD 9925

Washer, Belleville

$

$

Not available

15

Troy-Bilt 1100009

Bolt-Hex Hd, 3/8-24 x 1"
(Superseded to 710-1039)

$4.49

$

In Stock, only 3 left!

0

16

MTD 55077-1

Bracket, Engine, Left

$

$

Not available

17

Troy-Bilt 1100799

Bolt - Hex
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

18

MTD 55080

Belt Pulley Guard

$

$

Not available

19

Troy-Bilt 55039

Belt Guide
(Superseded to GW-55039)

$

$

Not available

20

MTD 9558

Bolt - Hex Hd, 3/8-16 x 1-1/2"

$

$

Not available

21

Troy-Bilt 9090

Idler Pulley
(Superseded to 756-04170)

$35.99

$

In Stock, only 2 left!

0

22

MTD 55078

Idler Lever

$

$

Not available

23

Troy-Bilt 1110108

Locknut - 3/8-16"
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

24

Troy-Bilt 1107382

Washer, Flat
(Superseded to 936-0275)

$

$

Not available

25

MTD 9386

Klip Ring

$

$

Not available

26

Troy-Bilt 55037

V-Belt
(Superseded to 954-04089)

$25.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 55034

Spring, Return
(Superseded to 732-04085)

$14.99

$

In Stock, only 1 left!

0

28

MTD 55033

Bushing - Idler Lever

$

$

Not available

29

Troy-Bilt 9655

Bolt - Hex Hd, 5/1 6-24 x 3/4" Grade 5
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 8

0

30

Troy-Bilt 9944

Washer, Belleville, Transmission Pulley
(Superseded to 736-04193)

$6.99

$

In Stock, only 1 left!

0

31

MTD 55031

Pulley - Transmission
(Superseded to 656-04017)

$

$

Not available

32

MTD 55084

Bracket - Cable Mount

$

$

Not available

33

MTD 1900766

Decal - Stabilization

$

$

Not available

34

Troy-Bilt 90038

Bolt - 5/16-18 x 5/8" Engine Bracket to Transmission

$

$

Currently unavailable

35

MTD 9856

Clevis Pin-Control Cable

$

$

Not available

36

Troy-Bilt 9904

Washer - flat, 3/8"
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0
