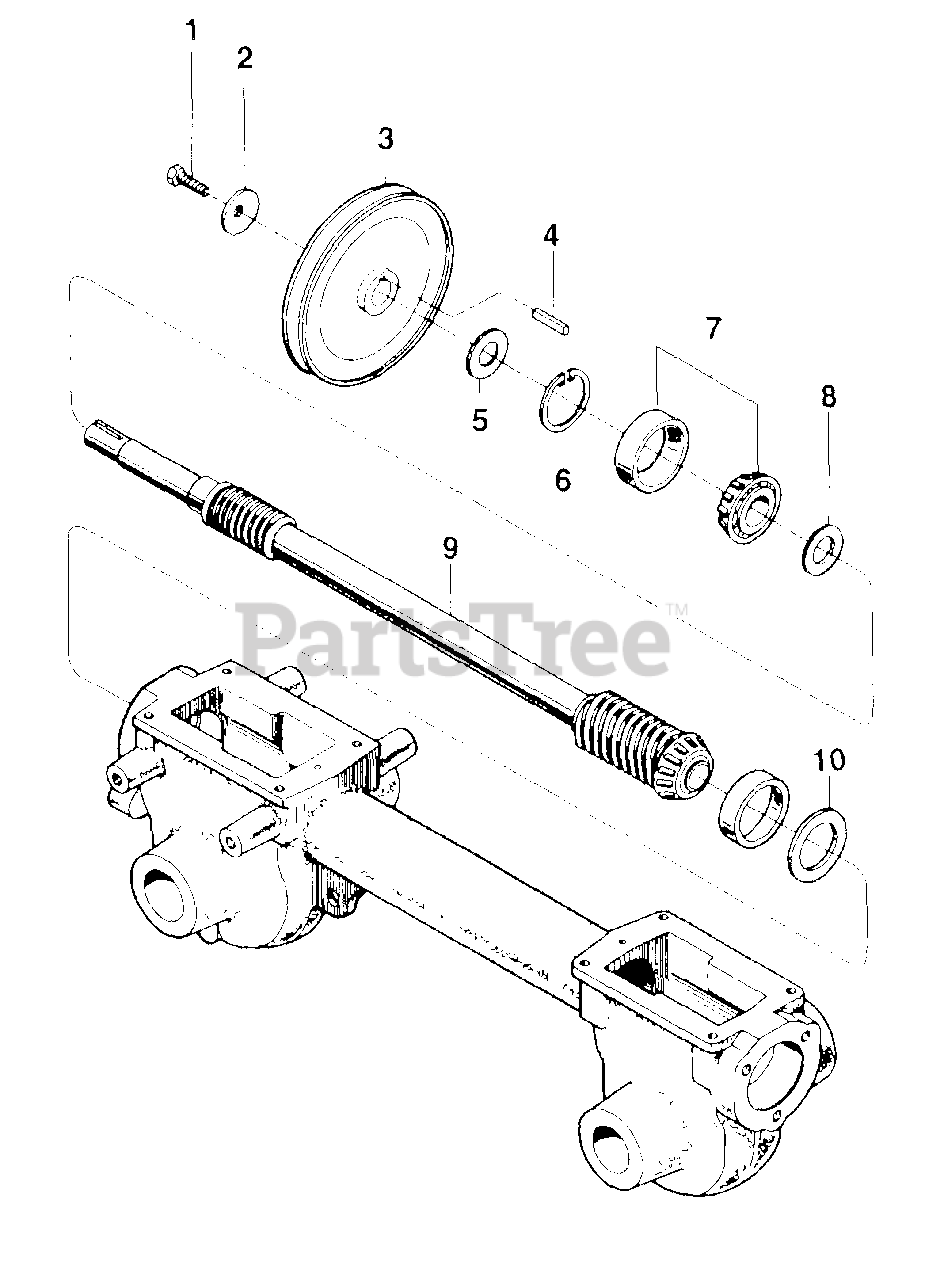

12155 (21A-510-081) - Troy-Bilt Tuffy Rear-Tine Tiller Drive Shaft Assembly Parts Diagram

Tuffy Rear-Tine Tiller

Drive Shaft Assembly Parts Diagram

  • Title

1

Troy-Bilt 1100004

Bolt-Hex Head, 5/16-24 x 3" Grade 5
(Superseded to 710-0157)

$4.49

$

In Stock, Qty 18

0

2

Troy-Bilt 9944

Washer-Belleville
(Superseded to 736-04193)

$6.99

$

In Stock, Qty 20+

0

3

MTD 55031

Pulley-Transmission
(Superseded to 656-04017)

$

$

Not available

4

Troy-Bilt 9301

Key-Transmission Pulley, 3/16 x 1
(Superseded to GW-9301099)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 50027

Support Washer-Front
(Superseded to GW-50027)

$6.99

$

In Stock, Qty 7

0

6

Troy-Bilt 9517

Snap Ring
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1714

Bearing-Tapered Roller with race
(Superseded to 941-0107)

$47.99

$

In Stock, Qty 17

0

8

Troy-Bilt 50043

Support Washer-Rear
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 12

0

9

Troy-Bilt 1904281

Driveshaft Assembly

$

$

Not available

10

Troy-Bilt 1224-1

Shim-Rear Bearing Cap, .010 thick
(Superseded to 736-04308)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1224-2

Shim-Same as above except .030 thick
(Superseded to 736-04307)

$4.49

$

In Stock, only 3 left!

0

Troy-Bilt 1224-3

Shim-Same as above except .005 thick
(Superseded to 736-04306)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 1224-4

Shim-Same as above except .062 thick
(Superseded to 736-04305)

$3.99

$

In Stock, Qty 16

0

Troy-Bilt 1325C

Shim Set
(Superseded to GW-1325C)

Note: Includes the following shims two #1 224-1, two 1224-2, one 1224-3, and one 11224-4

$15.99

$

In Stock, only 2 left!

0
