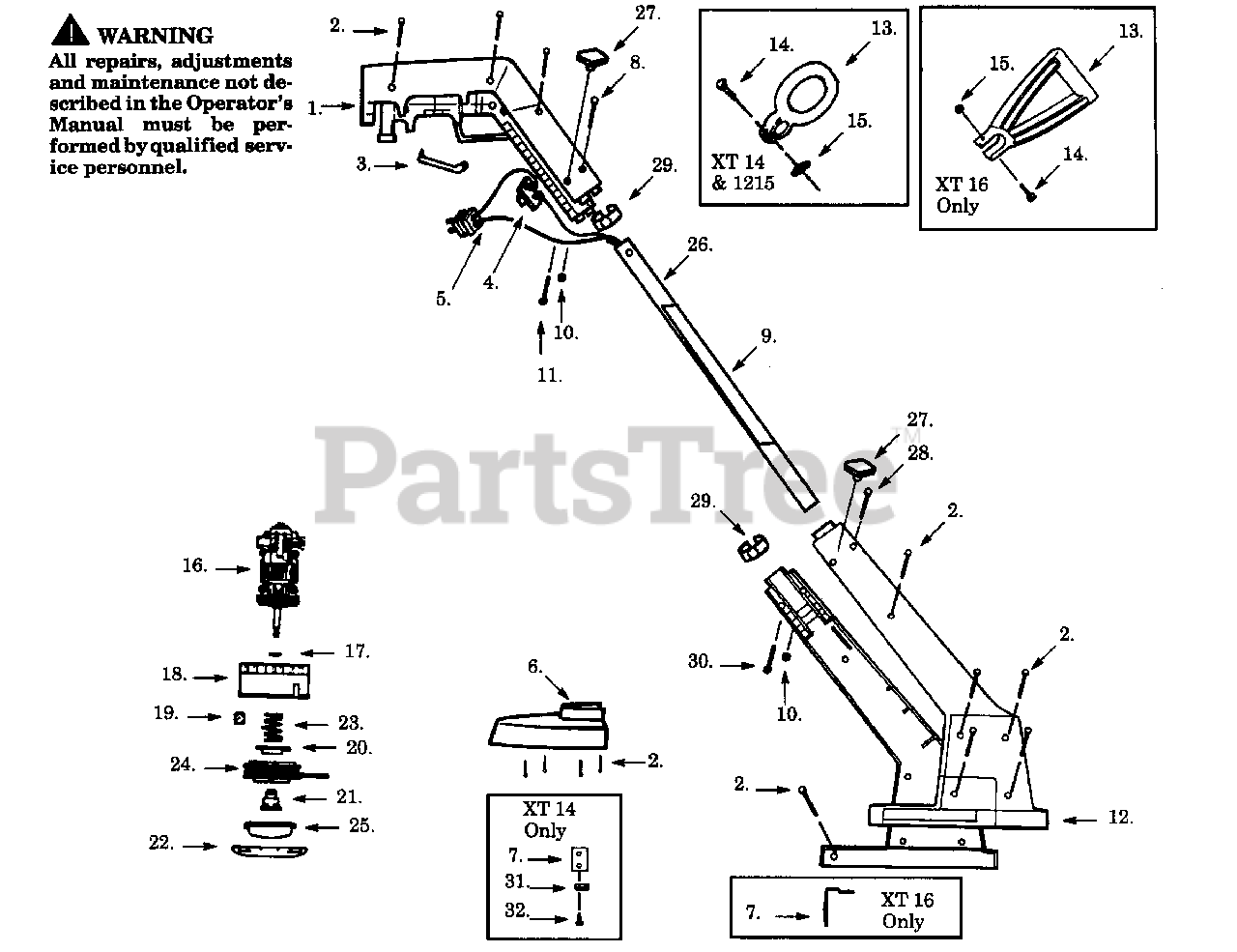

1215 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530401025

Switch Handle Set, XT14,XT16

$8.99

$

Usually ships in 3-10 days

0

1

Poulan 530401547

Switch Handle Set, 1215

$

$

Not available

2

Poulan 530352036

Screw

$0.99

$

Usually ships in 3-10 days

0

3

Poulan 530347654

Trigger

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530347897

On/Off Switch

$

$

Not available

5

Poulan 530401654

Wiring Harness

Note: (Incl. 4), XT14,XT16

$9.99

$

Usually ships in 3-10 days

0

5

Poulan 530401549

Wiring Harness

Note: (Incl. 4), 1215

$8.99

$

Usually ships in 3-10 days

0

6

Poulan 530351823

Shield, XT14

$

$

Not available

6

Poulan 530027614

Shield, XT16

$5.99

$

Usually ships in 3-10 days

0

6

Poulan 530401552

Shield, 1215 (w/Line Limiter)

$

$

Not available

7

Poulan 530351801

Line Limiter, XT14

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530350362

Line Limiter, XT16

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530400023

Screw, Upper

$3.99

$

Usually ships in 3-10 days

0

9

Poulan 530400274

Warning Decal

$

$

Not available

10

Poulan 534790500

Nut

$3.49

$

In Stock, Qty 6

0

11

Poulan 530348050

Screw, Upper Knob

$0.99

$

Usually ships in 3-10 days

0

12

Poulan 530401022

Motor Hsg. Set, XT14

$17.99

$

Usually ships in 3-10 days

0

12

Poulan 530402147

Motor Hsg. Set, XT16

$

$

Not available

12

Poulan 530401394

Motor Hsg. Set, 1215

$14.99

$

Usually ships in 3-10 days

0

13

Poulan 530326262

Assist Handle, XT14

$

$

Not available

13

Poulan 530093900

Assist Handle, XT16
(Superseded to 530069496)

$

$

Not available

13

Poulan 530326261

Assist Handle, 1215

$

$

Not available

14

Poulan 530340228

Bolt

$1.99

$

Usually ships in 3-10 days

0

15

Poulan 530400013

Wing Nut

$

$

Not available

16

Poulan 530400507

Motor Ass'y., XT14

$

$

Not available

16

Poulan 530400508

Motor Ass'y., XT16,1215

$46.99

$

Usually ships in 3-10 days

0

17

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530401015

Hub w/ Line Saver

$

$

Not available

19

Poulan 530350017

Foam Counterweight- XT16 only

$0.99

$

In Stock, only 3 left!

0

20

Poulan 530092068

Spring. Cap
(Superseded to 530328929)

$

$

Not available

21

Poulan 530350365

Drive Gear Ass'y.

$

$

Not available

22

Poulan 530092133

Cover

$

$

Not available

23

Poulan 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 952701519

Spool w/Line, XT14

$7.99

$

Usually ships in 3-10 days

0

24

Poulan 952701523

Spool w/Line, XT16,1215

$

$

Not available

25

Poulan 530401183

Tap Button

$

$

Not available

26

Poulan 530401014

Tube Ass'y. w/ Decal, XT14,XT16

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 530401561

Tube Ass'y. w/ Decal, 1215

$

$

Not available

27

Poulan 530347898

Knob

$2.99

$

Usually ships in 3-10 days

0

28

Poulan 530400024

Screw, Lower

$0.99

$

Usually ships in 3-10 days

0

29

Poulan 530401555

Snap Button

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530348051

Screw, Lower Knob

$0.99

$

Usually ships in 3-10 days

0

31

Poulan 530351801

Blade Cover XT14 only

$3.99

$

Usually ships in 3-10 days

0

32

Poulan 530351800

Screw XT14 only

$3.99

$

Usually ships in 3-10 days

0

Poulan 530401027

Operator Manual, XT16

Note: Not Shown.

$

$

Not available

Poulan 530083585

Operator Manual, XT14

Note: Not Shown.

$4.99

$

Usually ships in 3-10 days

0

Poulan 530083569

Operator Manual, 1215

Note: Not Shown.

$

$

Not available

Operator Manual, Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 530400341

Operator Manual, XT14,XT16

Note: Not Shown.

$

$

Not available

Poulan 530401556

Operator Manual, 1215

Note: Not Shown.

$

$

Not available
