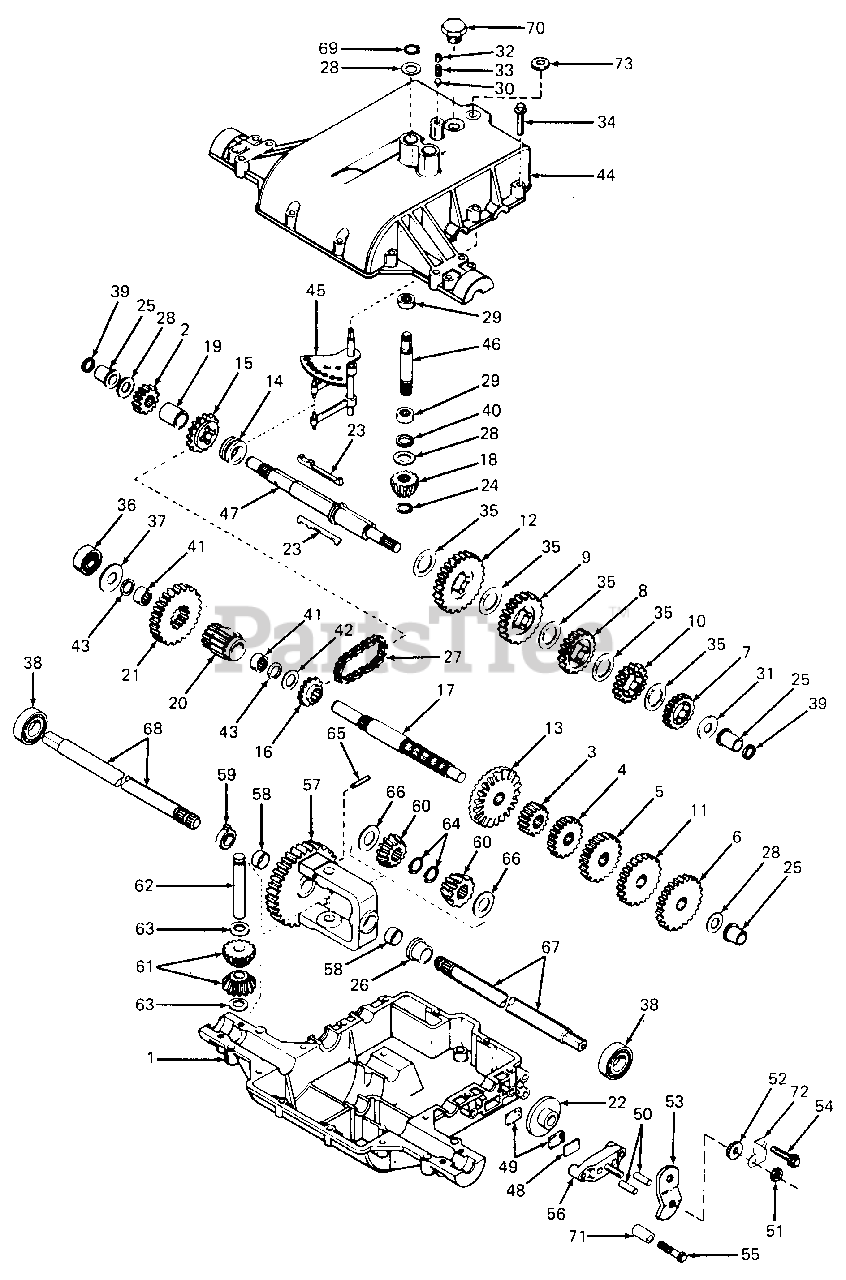

1215 - Cub Cadet Lawn Tractor (SN: 114001 - 126000) Transaxle Parts Diagram

Lawn Tractor

Transaxle Parts Diagram

  • Title

1

Cub Cadet TC-770771A

Case, Transaxle

$

$

Currently unavailable

2

Cub Cadet TC-778136

Gear, Spur (15 teeth)

$24.99

$

In Stock, only 1 left!

0

3

Cub Cadet TC-778145

Gear, Spur (12 teeth)

$18.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-778126A

Gear, Spur (20 teeth)

$48.99

$

Usually ships in 3-12 days

0

5

Cub Cadet TC-778127A

Gear, Spur (25 teeth)

$53.99

$

In Stock, only 3 left!

0

6

Cub Cadet TC-778129A

Gear, Spur (30 teeth)

$37.99

$

In Stock, only 1 left!

0

7

Cub Cadet TC-778121A

Gear, Spur (20 teeth)

$46.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-778123A

Gear, Spur (25 teeth)

$48.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-778124A

Gear, Spur (30 teeth)

$34.99

$

In Stock, only 3 left!

0

10

Cub Cadet TC-778122A

Gear, Spur (22 teeth)

$39.99

$

Usually ships in 3-12 days

0

11

Cub Cadet TC-778128A

Gear, Spur (28 teeth)

$40.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-778146A

Gear, Spur (37 teeth)
(Superseded to TC-778207A)

$63.99

$

In Stock, only 2 left!

0

13

Cub Cadet TC-778137A

Gear, Bevel (42 teeth)

$54.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-784266

Collar, Shift

$11.99

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-786083

Sprocket (18 teeth)

$20.99

$

In Stock, only 1 left!

0

16

Cub Cadet TC-786082

Sprocket (9 teeth)

$15.99

$

Usually ships in 3-12 days

0

17

Cub Cadet TC-776204

Shaft, Counter

$79.99

$

In Stock, only 1 left!

0

18

Cub Cadet TC-778113A

Bevel Pinion, Input

$34.99

$

In Stock, only 1 left!

0

19

Cub Cadet TC-786074

Spacer

$8.49

$

In Stock, only 1 left!

0

20

Cub Cadet TC-778138

Pinion, Output

$54.99

$

Usually ships in 3-12 days

0

21

Cub Cadet TC-778139

Gear, Output

$42.99

$

Usually ships in 3-12 days

0

22

Cub Cadet TC-790003

Disk, Brake

$20.99

$

Usually ships in 3-12 days

0

23

Cub Cadet TC-792089A

Key
(Superseded to TC-792089B)

$35.99

$

Usually ships in 3-12 days

0

24

Cub Cadet TC-788040

Ring, Retaining

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet TC-780105A

Bushing, Flanged

$8.49

$

In Stock, Qty 10

0

26

Cub Cadet TC-780118A

Bushing, Flanged

$8.49

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-786081

Chain, Roller

Note: (No. 41 chain, 24 links)

$22.99

$

Usually ships in 3-12 days

0

28

Cub Cadet TC-780072

Washer, Thrust

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet TC-780122

Bearing, Needle

$20.99

$

In Stock, Qty 14

0

30

Cub Cadet TC-792077

Ball, Steel
(Superseded to TC-792077A)

$4.49

$

In Stock, only 4 left!

0

31

Cub Cadet TC-780109

Washer, Thrust

$4.49

$

Usually ships in 3-12 days

0

32

Cub Cadet TC-792078

Screw, Set, 3/8-16 X 3/8

$4.49

$

In Stock, only 1 left!

0

33

Cub Cadet TC-792079

Spring

$4.49

$

In Stock, only 1 left!

0

34

Cub Cadet TC-792073

Screw, Hex Hd Thread Forming, 1/4-20 X 1-1/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

35

Cub Cadet TC-780108

Washer, Thrust

$4.49

$

In Stock, Qty 9

0

36

Cub Cadet TC-780121

Bearing, Ball

$36.99

$

In Stock, only 1 left!

0

37

Cub Cadet TC-780113

Washer, Flat

$12.99

$

In Stock, only 1 left!

0

38

Cub Cadet TC-780119

Bearing, Ball
(Superseded to HG-44121P)

$56.99

$

In Stock, only 2 left!

0

39

Cub Cadet TC-788051

Seal, Square Cut
(Superseded to TC-788051A)

$4.49

$

In Stock, Qty 10

0

40

Cub Cadet TC-788057

Seal, Square Cut

$4.49

$

In Stock, Qty 5

0

41

Cub Cadet TC-780112

Bearing, Needle

$21.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-780114

Washer, Flat

$4.49

$

In Stock, only 1 left!

0

43

Cub Cadet TC-788053

Seal, Square Cut

$4.49

$

Usually ships in 3-12 days

0

44

Cub Cadet TC-772082

Cover, Transaxle

$

$

Not available

45

Cub Cadet TC-784290

Rod & Fork Assy, Shift

$93.99

$

Usually ships in 3-12 days

0

46

Cub Cadet TC-776140

Shaft, Input

$29.99

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-776184A

Shaft, Brake

$

$

Not available

48

Cub Cadet TC-790007

Plate, Brake Pad

$5.99

$

Usually ships in 3-12 days

0

49

Cub Cadet TC-790006

Pad, Brake
(Superseded to TC-799021A)

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet TC-786026

Pin, Dowel

$4.49

$

Usually ships in 3-12 days

0

51

Cub Cadet TC-792075

Locknut, 5/16-24
(Superseded to 912-0237)

$

$

Not available

52

Cub Cadet TC-792076

Washer, Flat
(Superseded to 736-3078)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet TC-790004

Lever, Brake

$10.99

$

In Stock, only 1 left!

0

54

Cub Cadet TC-792073

Screw, Hex Hd Thread Forming, 1/4-20 X 1-1/4
(Superseded to TC-792073A)

$1.99

$

Usually ships in 3-12 days

0

55

Cub Cadet TC-792085

Screw, Hex Hd Thread Forming, 1/4-20 X 2-1/4
(Superseded to TC-792085A)

$4.49

$

In Stock, only 1 left!

0

56

Cub Cadet TC-790025

Holder, Brake Pad

$17.99

$

Usually ships in 3-12 days

0

57

Cub Cadet TC-778053A

Gear Assy, Differential

Note: (Includes 2 of No. 60)

$

$

Not available

58

Cub Cadet TC-780064

Bushing

$6.49

$

In Stock, Qty 7

0

59

Cub Cadet TC-780120

Bushing

$6.49

$

In Stock, only 3 left!

0

60

Cub Cadet TC-778166

Gear, Bevel

$39.99

$

In Stock, only 3 left!

0

61

Cub Cadet TC-778131

Pinion, Bevel

$39.99

$

In Stock, Qty 6

0

62

Cub Cadet TC-786034

Pin, Drive

$13.99

$

Usually ships in 3-12 days

0

63

Cub Cadet TC-780065

Washer, Thrust

$4.49

$

In Stock, Qty 6

0

64

Cub Cadet TC-792018

Ring, Retaining
(Superseded to 716-3001)

$4.99

$

In Stock, only 1 left!

0

65

Cub Cadet TC-792040

Pin, Roll

$4.49

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-780001

Washer, Thrust

$4.49

$

In Stock, only 4 left!

0

67

Cub Cadet TC-774716

Axle, 14-5/8 in. Long

$

$

Not available

68

Cub Cadet TC-774715

Axle, 12-3/4 in. Long

$

$

Not available

69

Cub Cadet TC-792035

Ring, Retaining

$4.49

$

In Stock, Qty 13

0

70

Cub Cadet TC-792074

Plug, Hex Hd, 9/16-18 Thread

$22.99

$

Usually ships in 3-12 days

0

71

Cub Cadet TC-786066

Spacer

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet TC-786086

Bracket, Brake Lever

$6.49

$

Usually ships in 3-12 days

0

73

Cub Cadet TC-792083

Washer

$

$

Not available
