1215 - Cub Cadet Lawn Tractor (SN: 114001 - 126000) Fenders & Foot Rests Parts Diagram

Lawn Tractor

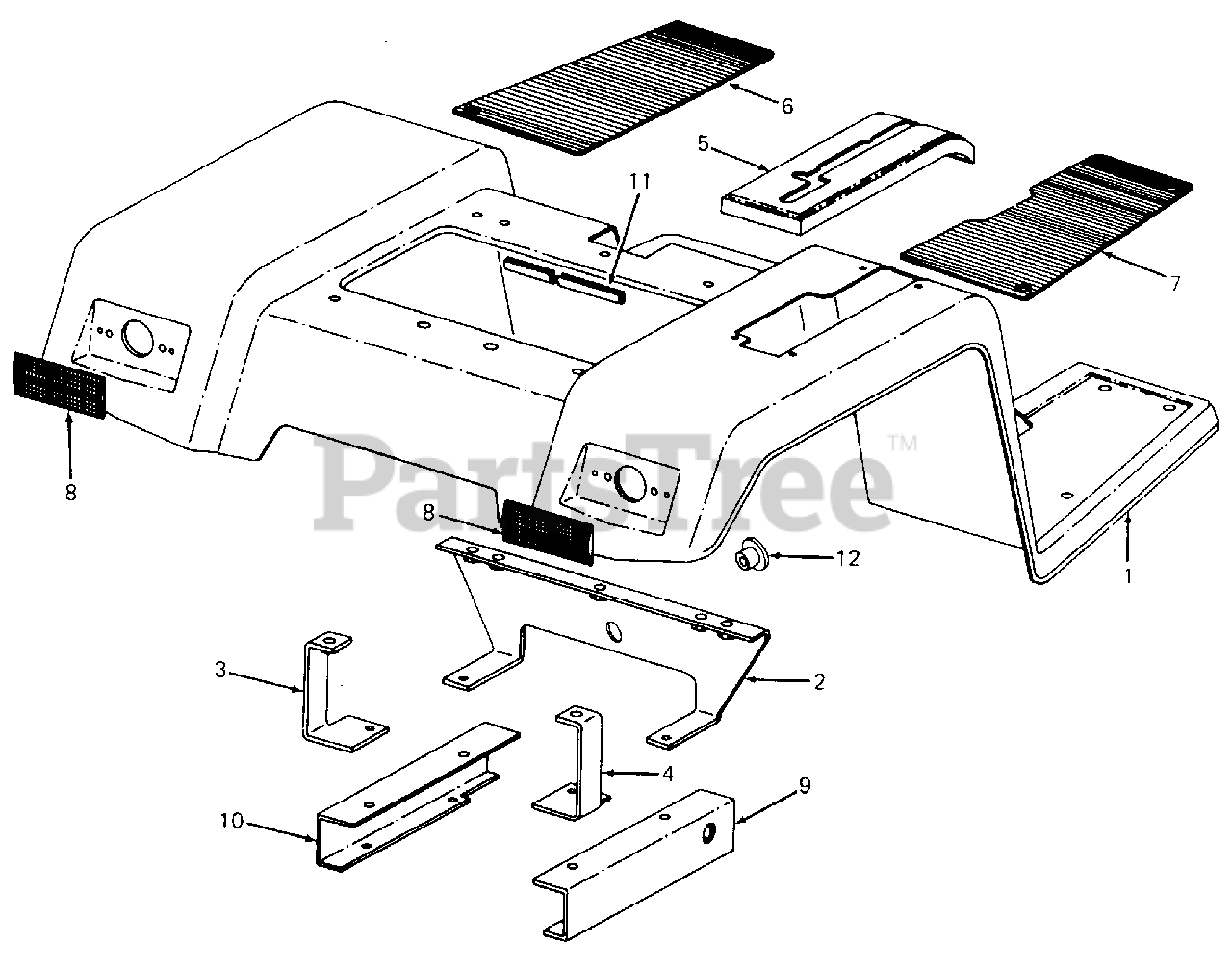

Fenders & Foot Rests Parts Diagram

  • Title
1

Cub Cadet 703-1234

Fender w/Hole

$

$

Not available

Cub Cadet 710-3092

Screw, 5/16 X 3/4 Flange Lock

$

$

Not available

Cub Cadet 710-3093

Screw, 5/16 X 1-1/4 Flange Lock

$

$

Currently unavailable

Cub Cadet 712-0158

Nut, 5/16 Center Lock
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

Cub Cadet 710-3000

Bolt, 3/8 X 3/4
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

Cub Cadet 736-0169

Washer, 3/8 Lock

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 726-3009

Clip, Cable

$

$

Not available

Cub Cadet 726-0215

Tie, Cable

$

$

Not available

2

Cub Cadet 703-0993

Support, Fender Front

$

$

Not available

Cub Cadet 710-3008

Bolt, 5/16 X 3/4

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0242

Washer, .348 X .88 X .06 Belleville

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-0995

Support, Fender Rear LH

$

$

Not available

Cub Cadet 710-3008

Bolt, 5/16 X 3/4

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0242

Washer, .348 X .88 X .06 Belleville

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 703-0996

Support, Fender Rear RH

$

$

Not available

Cub Cadet 710-3008

Bolt, 5/16 X 3/4

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0242

Washer, .348 X .88 X .06 Belleville

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 731-3045

Cover, Shift

$

$

Not available

Cub Cadet 710-0351

Screw, No. 10 X 1/2 Truss-Hd "B" Tap

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 736-3034

Washer, .219 X .56 X .06 Flat

$

$

Not available

Cub Cadet 12894

Clip, Cable

$

$

Not available

6

Cub Cadet 723-3006

Tread, Platform LH

$33.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 723-3007

Tread, Platform RH

$

$

Not available

8

Cub Cadet 730-3000

Reflector
(Superseded to 930-3000)

$17.99

$

In Stock, only 2 left!

0

9

Cub Cadet 703-1202

Support, Fender LH

$

$

Currently unavailable

10

Cub Cadet 703-1201

Support, Fender RH

$

$

Currently unavailable

Cub Cadet 710-3008

Bolt, 5/16 X 3/4 GR 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0119

Washer, 5/16 Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 703-1346

Strip, Trim -39.38 in. Long

$

$

Not available

12

Cub Cadet 723-3042

Bushing, Snap

$4.49

$

In Stock, only 1 left!

0
