1215 (137-220-100) - Cub Cadet Lawn Tractor (SN: 126001 - 147087) Steering Parts Diagram

Lawn Tractor

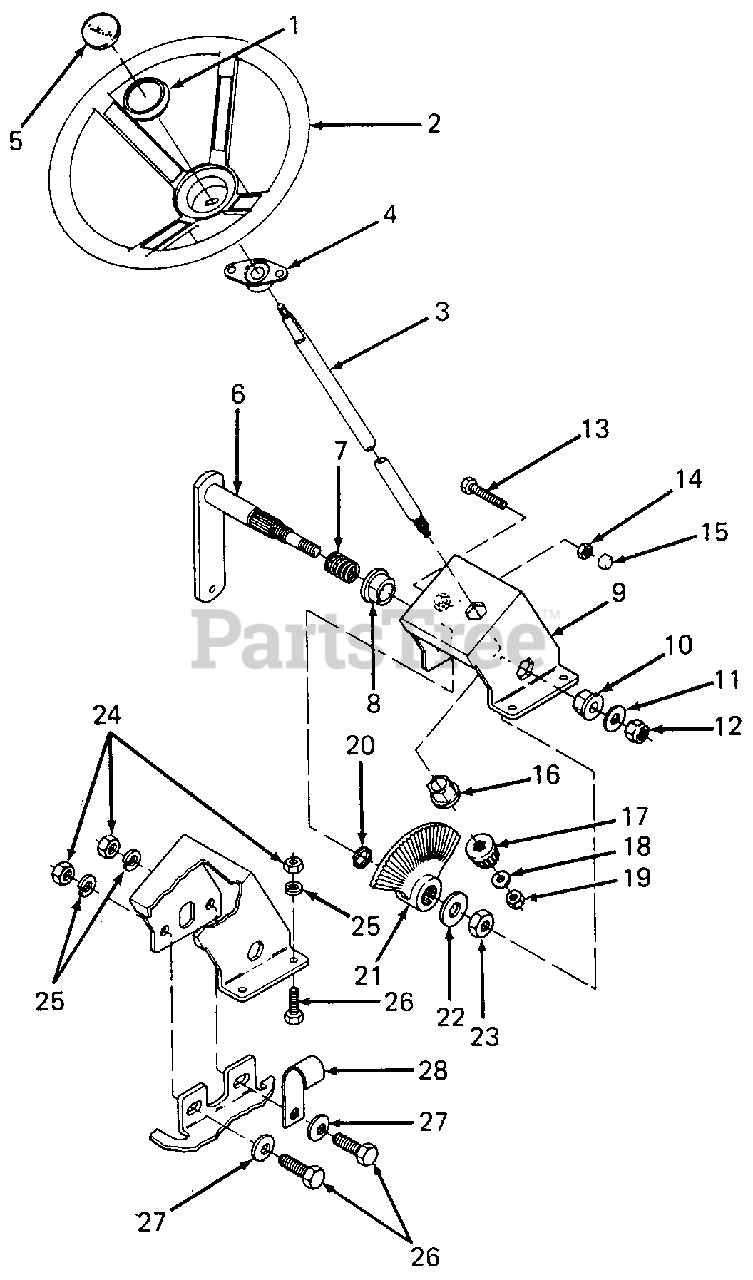

Steering Parts Diagram

  • Title

1

Cub Cadet 731-0220

Cap, Steering Wheel
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

Cub Cadet 731-0806

Wheel, Steering
(Superseded to 931-0806A)

$

$

Not available

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-24

$4.99

$

In Stock, only 3 left!

0

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 738-3070

Shaft, Steering Wheel

$

$

Not available

4

Cub Cadet 741-3025

Bearing, Flange

$

$

Not available

Cub Cadet 710-3105

Bolt, 5/16-18 X 7/8 Lg Sq-Nk Crg

$6.49

$

In Stock, only 2 left!

0

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 779-3077

Label, Steering Cap

$

$

Currently unavailable

6

Cub Cadet 703-1531

Shaft, Steering

$

$

Not available

7

Cub Cadet 732-3054

Spring, Compression
(Superseded to 932-3054)

$

$

Not available

8

Cub Cadet 741-0490

Bearing, Flange
(Superseded to 941-0490)

$13.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-1551

Box, Steering

$

$

Not available

10

Cub Cadet 748-0228

Bearing, Flange

$22.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-3087

Washer, Flat, .515 X 1.12 X .100 Thk HDN

$

$

Not available

12

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3200

Screw, Hex, 3/8-16 X 2.25 Lg GR5

$

$

Not available

14

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 16

0

15

Cub Cadet 731-0988

Cap

$

$

Not available

16

Cub Cadet 748-0227

Bearing, Flange
(Superseded to 948-0227A)

$8.49

$

In Stock, Qty 11

0

17

Cub Cadet 748-0237

Gear, Pinion
(Superseded to 948-0237)

$21.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-3081

Washer, Flat, .320 X .60 X .06 Thk HDN

$3.99

$

In Stock, Qty 11

0

19

Cub Cadet 712-0237

Nut, Hex Center Lock, 5/16-24

$4.99

$

In Stock, only 3 left!

0

20

Cub Cadet 716-3001

Ring, Snap

$4.99

$

In Stock, only 1 left!

0

21

Cub Cadet 748-0236

Gear, Bevel

$101.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0187

Washer, Flat, .640 X 1.25 X .06 Thk HDN

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0318

Nut, Hex Jam, 5/8-18

$3.49

$

In Stock, Qty 11

0

24

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0
