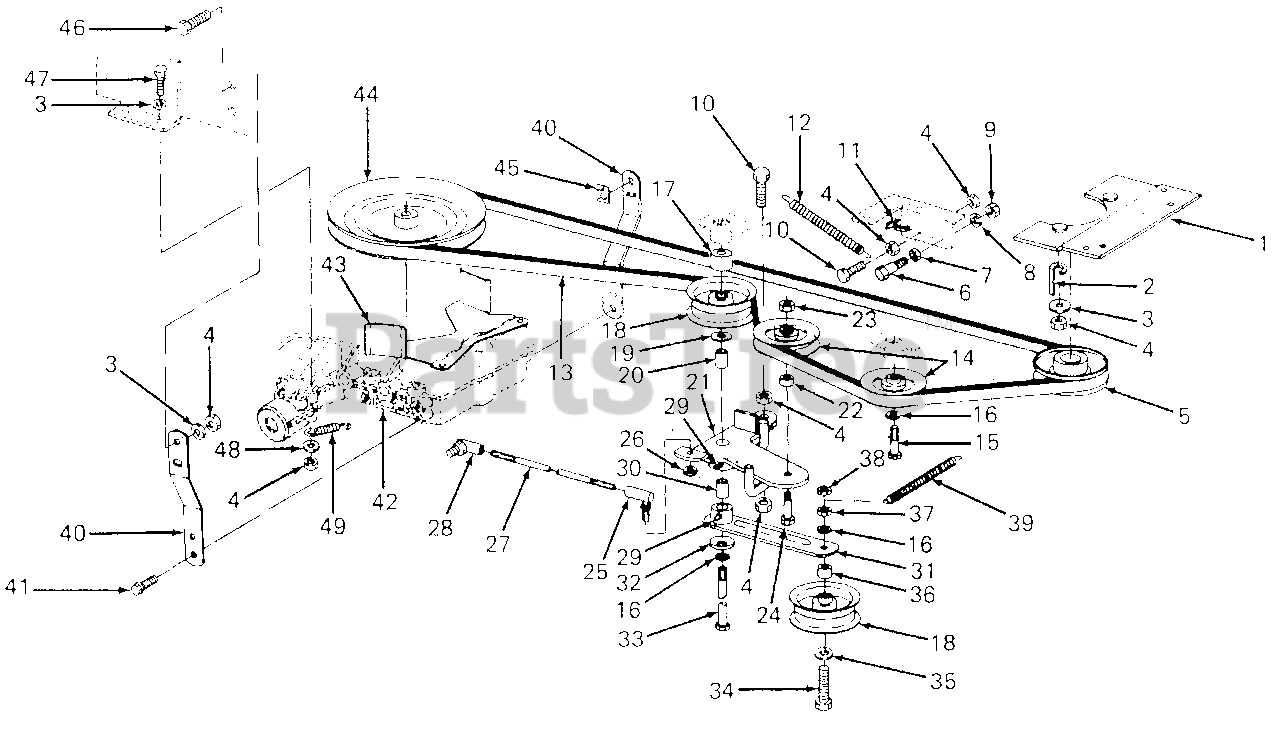

1215 (137-220-100) - Cub Cadet Lawn Tractor (SN: 126001 - 147087) Drive Parts Diagram

Lawn Tractor

Drive Parts Diagram

  • Title

1

Cub Cadet 703-1212

Plate, Belt Guard Mounting

$

$

Not available

2

Cub Cadet 747-3030

Guide, Belt

$

$

Not available

3

Cub Cadet 736-0242

Washer, Bell, .345 X .88 X .060 Thk

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-3009

Nut, Hex Center Lock, 5/16-18 GR5

$6.99

$

In Stock, Qty 20+

0

5

Cub Cadet 756-3033

Pulley, Engine, 3.5 OD

$

$

Not available

6

Cub Cadet 738-0528

Screw, Shoulder

$

$

Not available

7

Cub Cadet 712-3007

Nut, Hex Jam, 5/16-18 GR5

$6.99

$

In Stock, Qty 5

0

8

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3002

Screw, Hex Cap, 5/16-18 X 1.0 Lg GR5
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

11

Cub Cadet 725-0157

Tie, Cable

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 732-0384

Spring, Extension, .62 OD X 6.12 Lg
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

13

Cub Cadet 754-3024

V-Belt, 1/2 X 91.0 Lg
(Superseded to 954-3024)

$62.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 756-0236

V-Idler, 3.06 OD

$65.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 X 1.25 Lg GR5

$3.99

$

In Stock, Qty 12

0

16

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 711-3175

Bushing, .390 X 1.0 X .812 Lg

$

$

Not available

18

Cub Cadet 756-0217

Pulley, Flat Idler, 2.75 OD
(Superseded to 956-0217)

$22.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0279

Washer, Flat, .385 X .87 X .06 Thk (Hdn)

$

$

Currently unavailable

20

Cub Cadet 750-0245

Spacer, .380 X .625 X 1.14 Lg

$

$

Not available

21

Cub Cadet 703-1653

Bracket, Clutch

$

$

Not available

22

Cub Cadet 750-0507

Spacer, .380 X .625 X .27 Lg
(Superseded to 750-04776)

$5.49

$

In Stock, only 2 left!

0

23

Cub Cadet 712-3000

Nut, Hex Center Lock, 3/8-16 GR5

$4.49

$

In Stock, Qty 9

0

24

Cub Cadet 710-3037

Screw, Hex Cap, 3/8-16 X 1.75 Lg GR5
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

25

Cub Cadet 723-3011

Joint, Ball, 5/16-24 RH Trd
(Superseded to 923-3011)

$37.99

$

In Stock, only 1 left!

0

Cub Cadet 712-3025

Nut, Hex Jam, 5/16-24 GR5

$7.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 712-3057

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

27

Cub Cadet 711-3235

Rod, Clutch

$

$

Not available

28

Cub Cadet 723-3012

Joint, Ball, 5/16-24 LH Trd
(Superseded to 923-3012)

$42.99

$

In Stock, only 1 left!

0

Cub Cadet 712-3045

Nut, Hex Jam, 5/16-24 LH Trd GR5
(Superseded to 912-3045)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 750-0252

Spacer, .377 X .600 X .830 Lg
(Superseded to 950-0252)

$21.99

$

In Stock, Qty 5

0

31

Cub Cadet 703-1396

Arm, Idler
(Superseded to 703-1396-0637)

Variations

Cub Cadet 703-1396-0637

ARM-IDLER - POWDER BLACK (0637)

$173.99

$

Usually ships in 3-6 days

0

$173.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0257

Washer, Flat, .406 X 1.25 X .157 Thk (Hdn)
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet 710-3153

Screw, Hex Cap, 3/8-16 X 4.75 Lg GR5

$

$

Not available

34

Cub Cadet 710-3022

Screw, Hex Cap, 3/8-16 X 2.75 Lg GR5

$4.99

$

In Stock, Qty 7

0

35

Cub Cadet 736-0140

Washer, Flat, .385 X .620 X .063 Thk

$7.49

$

In Stock, Qty 7

0

36

Cub Cadet 750-0497

Spacer, .375 X .625 X .44 Lg

$10.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-3008

Nut, Hex Jam, 3/8-16 GR5

$4.99

$

In Stock, Qty 19

0

38

Cub Cadet 712-0266

Nut, Hex Center Lock Jam
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

39

Cub Cadet 732-3044

Spring, Extension, .41 OD X 6.0 Lg
(Superseded to 932-3044A)

$

$

Not available

40

Cub Cadet 703-1106

Brace, Transmission

$

$

Not available

41

Cub Cadet 710-0604

Screw, Hex Wash Hd Tapp, 5/16-18 X .62 Lg
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 717-3040

Transmission - 5 Speed

Note: (For Components see Transaxle)

$

$

Not available

43

Cub Cadet 16344

Belt Keeper, Transaxle

$

$

Currently unavailable

Cub Cadet 710-0704

Screw, Hex Wash Hd Tapp, 5/16-18 X .62 Lg

$

$

Not available

44

Cub Cadet 756-3028

Pulley, Transmission

$

$

Not available

Cub Cadet 714-0129

Key, #4 Hi-Pro, 3/32 X 5/8
(Superseded to 914-0129)

$

$

Not available

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

Cub Cadet 712-0922

Nut, Hex Jam, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

45

Cub Cadet 726-3008

Clip, Cable

$4.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 710-3156

Screw, Hex Cap, 5/16-18 X 2.5 Lg GR5

$

$

Not available

48

Cub Cadet 736-0159

Washer, Flat, .344 X .875 X .06 Thk

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 732-3046

Spring, Extension

$

$

Not available
