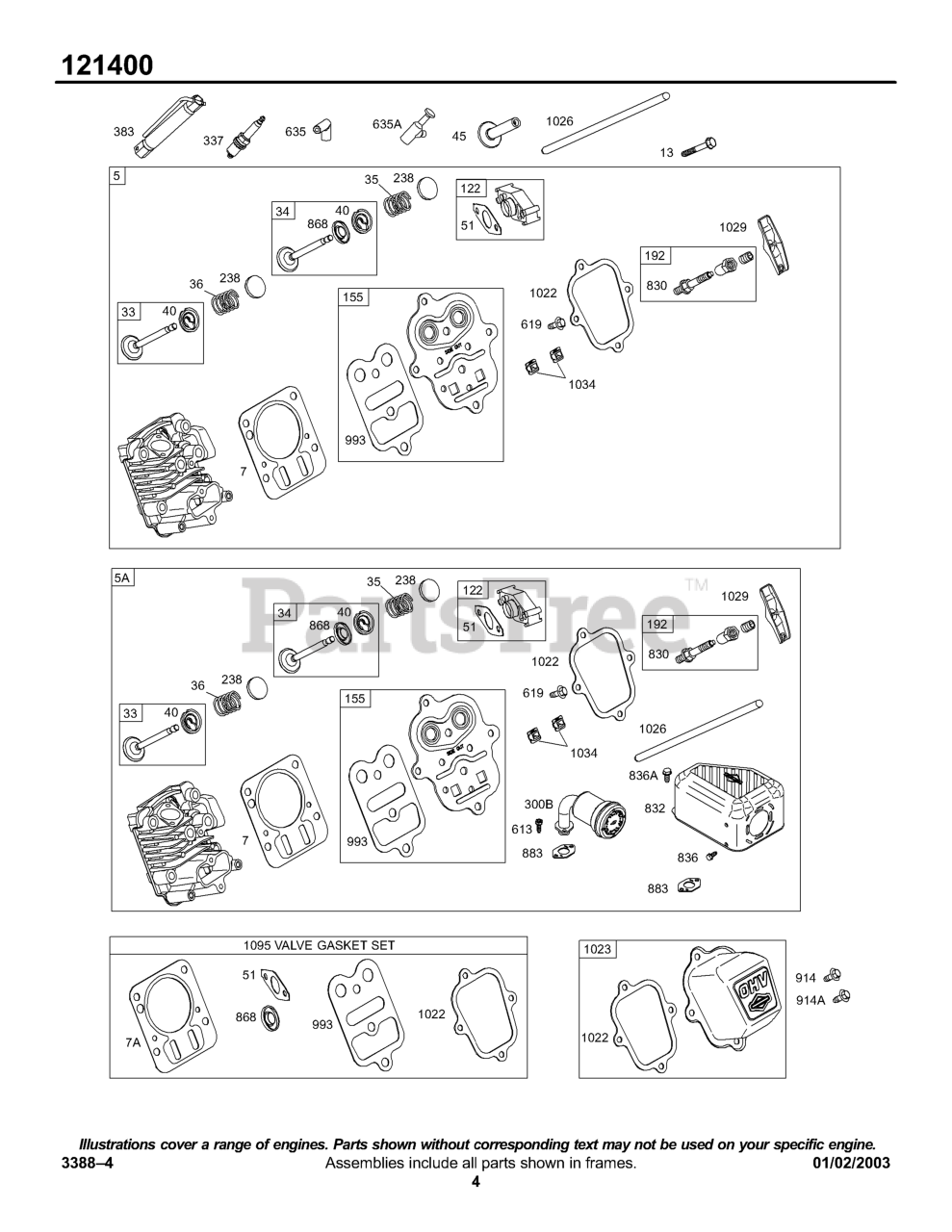

121412-0140-E1 - Briggs & Stratton Horizontal Engine Head Group, Kits/Gasket - Valve Parts Diagram

Horizontal Engine

Head Group, Kits/Gasket - Valve Parts Diagram

  • Title

5

Briggs & Stratton 699486

Head-Cylinder
(Superseded to 594514)

Note: Used After Code Date 98071900

$

$

Not available

5A

Briggs & Stratton 698733

Head-Cylinder

Note: Used Before Code Date 98072000

$179.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 698210

Gasket-Cylinder Head

$8.99

$

In Stock, Qty 17

0

13

Briggs & Stratton 691137

Screw (Cylinder Head)
(Superseded to 592244)

Note: (Cylinder Head)

$3.49

$

In Stock, Qty 20+

0

33

Briggs & Stratton 499642

Valve-Exhaust

$35.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 499641

Valve-Intake
(Superseded to 795443)

$27.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 691304

Spring-Valve

Note: (Intake)

$5.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 691304

Spring-Valve

Note: (Exhaust)

$5.99

$

In Stock, only 2 left!

0

40

Briggs & Stratton 692194

Retainer-Valve

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 690977

TAPPET, Valve

$7.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692555

Gasket-Intake (2 Required)

$3.99

$

In Stock, Qty 17

0

122

Briggs & Stratton 690043

Spacer-Carburetor
(Superseded to 795643)

Note: Used Before Code Date 98072000

$13.99

$

In Stock, Qty 10

0

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Used After Code Date 98071900

$13.99

$

In Stock, Qty 10

0

155

Briggs & Stratton 698214

Plate-Cylinder Head

$10.99

$

Usually ships in 2-12 days

0

192

Briggs & Stratton 694543

Adjuster-Rocker Arm

$

$

Not available

238

Briggs & Stratton 691300

Cap-Valve

$9.49

$

In Stock, Qty 9

0

337

Briggs & Stratton 491055S

PLUG, Spark

Note: (Resistor)

$4.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374S

Wrench-Spark Plug
(Superseded to 19576S)

$5.99

$

In Stock, only 1 left!

0

619

Briggs & Stratton 691108

SCREW

Note: (Cylinder Head Plate)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

635A

Briggs & Stratton 692927

Boot-Spark Plug
(Superseded to 798619)

$6.49

$

In Stock, only 1 left!

0

830

Briggs & Stratton 694544

Stud-Rocker Arm

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 692044

Seal-Valve
(Superseded to 795440)

$13.99

$

In Stock, Qty 9

0

914

Briggs & Stratton 692198

Screw (Rocker Cover) (7/16" Long)

Note: (Rocker Cover) Used Before Code Date 02031100

$5.99

$

In Stock, Qty 12

0

914

Briggs & Stratton 697551

Screw
(Superseded to 691108)

Note: (Rocker Cover) Used After Code Date 02031000

$3.49

$

In Stock, Qty 20+

0

914A

Briggs & Stratton 692557

Screw (Rocker Cover) (3/8" Long)

Note: (Rocker Cover)

$3.99

$

Usually ships in 2-12 days

0

993

Briggs & Stratton 694088

Gasket-Cylinder Head Plate

$8.49

$

In Stock, Qty 16

0

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 5

0

1023

Briggs & Stratton 499924

Cover-Rocker
(Superseded to 595245)

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 693517

Rod-Push

Note: Used After Code Date 98061400

$9.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 692560

Rod-Push

Note: Used Before Code Date 98061500

$9.49

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 691230

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

Guide-Push Rod

$9.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 695289

Gasket Set-Valve
(Superseded to 791798)

$33.99

$

In Stock, only 2 left!

0
