1214 - Weed Eater String Trimmer, Electric TRIMMER ASSEMBLY Parts Diagram

String Trimmer, Electric

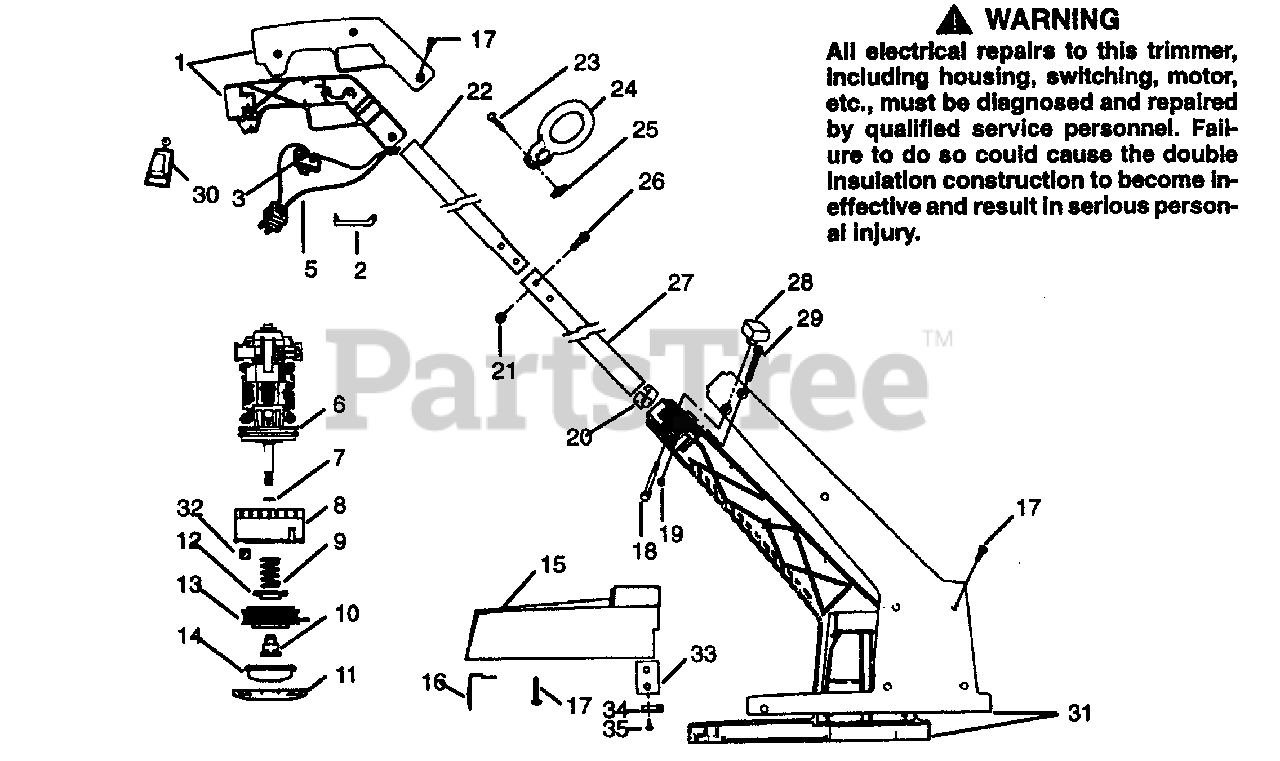

TRIMMER ASSEMBLY Parts Diagram

  • Title

1

Poulan 530347598

Upper Handle Set US & Can Model 1214,1216

$

$

Not available

1

Poulan 530402061

Upper Handle Set Model 1216
(Superseded to 530402060)

$

$

Not available

2

Poulan 530347654

Trigger

$3.99

$

Usually ships in 3-10 days

0

3

Poulan 530347897

On-Off Switch

$

$

Not available

5

Poulan 530401654

Wiring Harness

Note: (Incl. 3)

$9.99

$

Usually ships in 3-10 days

0

6

Poulan 530400507

Motor Assembly Model 1214

$

$

Not available

6

Poulan 530400508

Motor Assembly Model 1216

$46.99

$

Usually ships in 3-10 days

0

7

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530347956

Hub Assembly w/line Saver

$

$

Not available

9

Poulan 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530350365

Drive Gear Assembly

$

$

Not available

11

Poulan 530092133

Lock Ring

$

$

Not available

12

Poulan 530092068

Spring Cap
(Superseded to 530328929)

$

$

Not available

13

Poulan 952701519

Spool w/Line Model 1214

$7.99

$

Usually ships in 3-10 days

0

13

Poulan 952701523

Spool w/Line Model 1216

$

$

Not available

14

Poulan 530401182

Tap Button

$4.99

$

In Stock, only 1 left!

0

15

Poulan 530351806

Shield Type 2 & 3 Model 1214

$

$

Not available

15

Poulan 530347595

Shield Type 1 & 2 Model 1216

$

$

Not available

15

Poulan 530351807

Type 3 & Model 1216

$

$

Not available

16

Poulan 530350362

Line Limiter Blade Model 1214 Type 1

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 530350362

Line Limiter Blade Type 2-3 & Model 1216

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530352036

Screw

$0.99

$

Usually ships in 3-10 days

0

18

Poulan 530348051

Screw

$0.99

$

Usually ships in 3-10 days

0

19

Poulan 534790500

Nut

$3.49

$

In Stock, Qty 6

0

20

Poulan 530401555

Snap Button

$0.99

$

Usually ships in 3-10 days

0

21

Poulan 534235901

Lock Nut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530401283

Upper Tube

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 530340228

Bolt

$1.99

$

Usually ships in 3-10 days

0

24

Poulan 530326261

Assist Handle Model 1214

$

$

Not available

24

Poulan 530351817

Assist Handle Model 1216

$6.49

$

Usually ships in 3-10 days

0

25

Poulan 530400013

Wing Nut

$

$

Not available

26

Poulan 530346034

Screw

$

$

Not available

27

Poulan 530400276

Lower Tube English

$8.99

$

Usually ships in 3-10 days

0

27

Poulan 530401366

Lower Tube French/English

$9.99

$

Usually ships in 3-10 days

0

28

Poulan 530347898

Knob

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 530348050

Screw

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530347653

Cord Retainer

$

$

Not available

31

Poulan 530351810

Motor Housing Set Type 2-3 Model 1214

$27.99

$

Usually ships in 3-10 days

0

31

Poulan 530347570

Motor Housing Set Type 1, 3, & Model 1216

$32.99

$

Usually ships in 3-10 days

0

31

Poulan 530351811

Motor Housing Set Type 2 Model 1216

$

$

Not available

32

Poulan 530350017

Foam Counterweight Model 1216

$0.99

$

In Stock, only 3 left!

0

33

Poulan 530351802

Line Limiter - Type 2-3 Model 1214

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530351802

Line Limiter - Type 2 Model 1216

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530351801

Blade Cover - Type 2-3 Model 1214

$3.99

$

Usually ships in 3-10 days

0

34

Poulan 530351801

Blade Cover - Type 2 Model 1216

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530351800

Screw Type 2-3 Model 1214

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530351800

Screw Type 2 Model 1216

$3.99

$

Usually ships in 3-10 days

0

Poulan 530400274

Warning Decal English

Note: Not Shown.

$

$

Not available

Poulan 530380773

Warning Decal French/English

Note: Not Shown.

$

$

Not available

Poulan 530402288

Warning Decal Model 1216

Note: Not Shown.

$

$

Not available

Poulan 530400191

Carton Contents Bag Model 1214

Note: Not Shown.

$

$

Not available

Poulan 530400192

Carton Contents Bag Model 1216

Note: Not Shown.

$

$

Not available

Poulan 530083585

Operator's ManualUS Model 1214,1216

Note: Not Shown.

$4.99

$

Usually ships in 3-10 days

0

Poulan 530081439

Operator's ManualCan. Model 1214,1216

Note: Not Shown.

$

$

Not available

Poulan 530083639

Operator's ManualMex. Model 1216
(Superseded to 530083585)

Note: Not Shown.

$4.99

$

Usually ships in 3-10 days

0
