1212 (14AJ808H101) - Cub Cadet Lawn Tractor (SN: 1I010H & Above) (2001) PTO & Battery Parts Diagram

Lawn Tractor

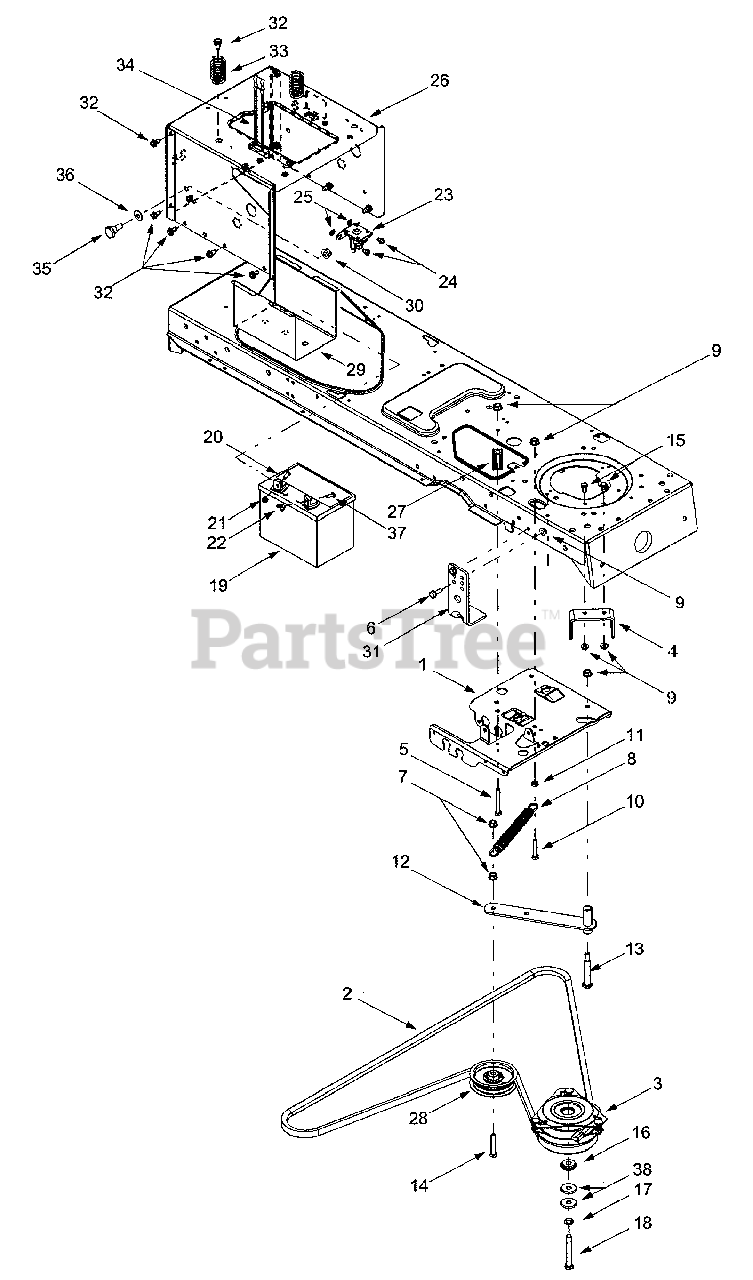

PTO & Battery Parts Diagram

  • Title

1

Cub Cadet 783-0653D

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Cub Cadet 783-0653D-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

2

Cub Cadet 754-0476

PTO Belt
(Superseded to 954-0476)

$72.99

$

In Stock, Qty 6

0

3

Cub Cadet 717-1709

Electric PTO Clutch
(Superseded to 917-1709)

$609.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 783-1003

Electric Clutch Anti-rotation Bracket
(Superseded to 783-1003-0637)

Variations

Cub Cadet 783-1003-0637

Clutch Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.5

$6.99

$

In Stock, Qty 16

0

6

Cub Cadet 710-1238

Hex Head Washer Screw, 5/16-18 x .875
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 732-0978

Extension Spring, .62 x 5.62

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

11

Cub Cadet 712-3010

Hex Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 683-0294

Idler Bracket Assembly

$

$

Not available

13

Cub Cadet 738-3056

Shoulder Screw, 1/2 x 2.5
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3144

Hex Cap Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3025

Hex Cap Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

16

Cub Cadet 738-0785

Shoulder Spacer, 1.38 x .445 x .36
(Superseded to 938-0785)

$25.99

$

In Stock, Qty 9

0

17

Cub Cadet 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 710-3157

Hex Cap Screw, 7/16-20 x 3.25 (Grade 5)
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

19

Cub Cadet 725-1706

12-volt Battery, 270 CCA
(Superseded to 925-1707D)

$

$

Not available

20

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 725-1426

Solenoid, 12-Volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0222

Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

26

Cub Cadet 783-1033A

Hitch Plate

Variations

Cub Cadet 783-1033A-0637

UPPER HITCH PLATE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-1033A-0650

UPPER HITCH PLATE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-1033A-0665

UPPER HITCH PLATE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-1033A-0691

UPPER HITCH PLATE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-1033A-0716

UPPER HITCH PLATE - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

Cub Cadet 748-0415A

Spacer, 3/8 x 1.54
(Superseded to 748-0415B)

$7.49

$

In Stock, Qty 10

0

28

Cub Cadet 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

29

Cub Cadet 783-0349

Battery Tray

Variations

Cub Cadet 783-0349-4008

TRAY-BATTERY 400 - WINE RED (4008)

$

$

Not available

Cub Cadet 783-0349-0606

TRAY-BATTERY 400 S - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0349-0637

Battery Tray, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

Cub Cadet 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 783-0891B

Deck Stop

Variations

Cub Cadet 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0498

USE 783-04467 BRACKET-DECK UP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0891B-0650

USE 783-04467-0650 BRACKET-DE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0891B-0716

USE 783-04467-0716 BRACKET-DE - CUB YELLOW-99 (0716)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 710-0604A

Self Tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 732-3080

Compression Spring, 1.28 x 3.5
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

34

Cub Cadet 723-0444

Battery Strap

$22.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 738-1020

Shoulder Screw, .625 x .5, 7/16-20

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0407

Bell Washer, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 12

0

37

Cub Cadet 738-1132

Shoulder Screw, 1/4-20, .25 x .15

$5.49

$

In Stock, only 2 left!

0

38

Cub Cadet 736-0322

Flat Washer, .45 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0
