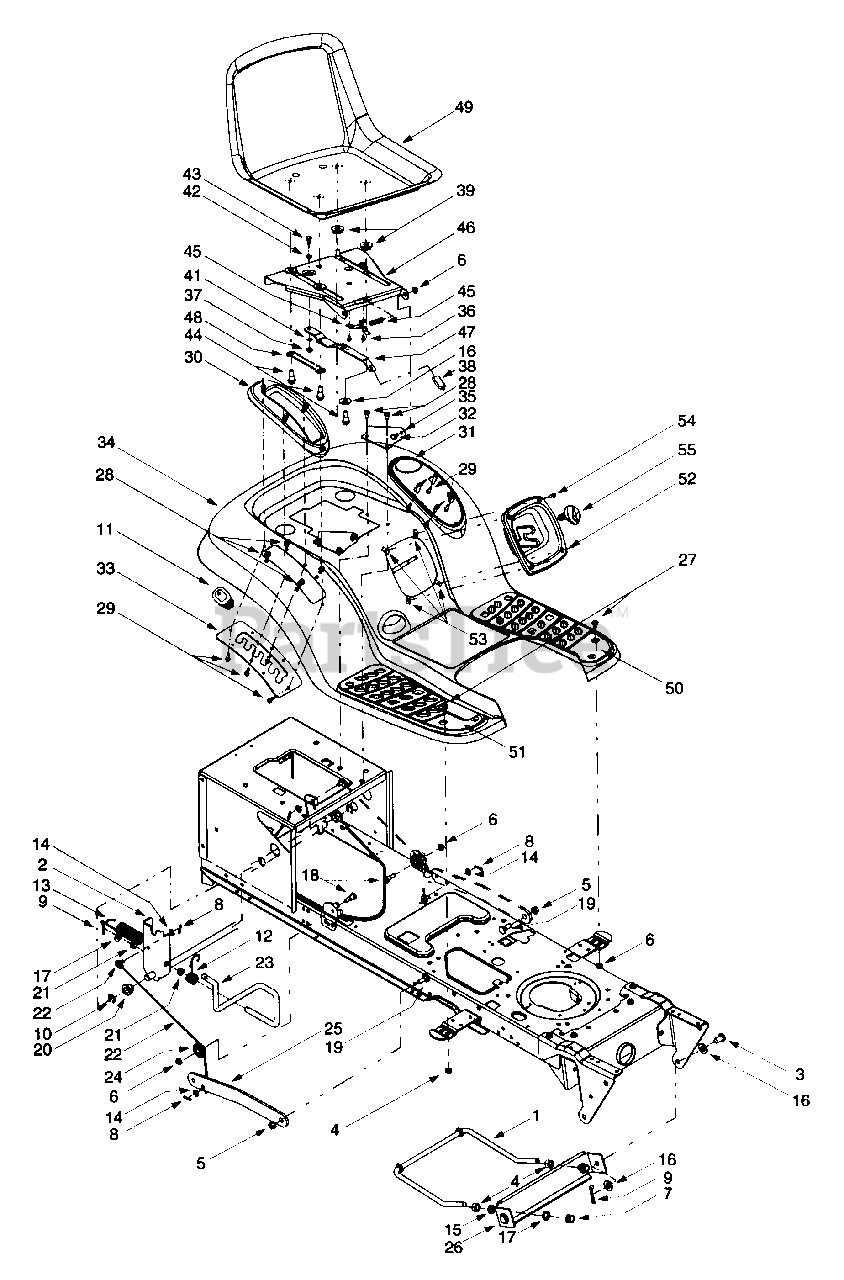

1212 (14AJ808H101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Lift Assembly, Seat, Fender Parts Diagram

Lawn Tractor

Lift Assembly, Seat, Fender Parts Diagram

  • Title

1

Cub Cadet 747-1130

Deck Stabilizer Rod
(Superseded to 747-1130B)

Variations

Cub Cadet 747-1130-0637

Front Adjust Deck Rod - POWDER BLACK (0637)

$41.99

$

In Stock, only 3 left!

0

$41.99

$

In Stock, only 3 left!

0

2

Cub Cadet 683-0197

Lift Shaft Assembly
(Superseded to 983-0197)

Variations

Cub Cadet 683-0197-0637

USE 983-0197 SHAFT-LIFT ASM - POWDER BLACK (0637)

$51.99

$

In Stock, only 1 left!

0

$51.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0332

Clevis Pin, .5 x .78
(Superseded to 911-0332)

$16.99

$

In Stock, Qty 17

0

4

Cub Cadet 712-0206

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3083

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 714-0111

Cotter Pin

$4.99

$

In Stock, Qty 13

0

10

Cub Cadet 716-0106

E-ring

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

12

Cub Cadet 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

13

Cub Cadet 732-0934

Lift-assist Spring, 1.15 x 5.99

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-0275

Flat Washer, 5/16

$6.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0921

Lock Washer, 1/2

$4.49

$

In Stock, Qty 6

0

16

Cub Cadet 736-3019

Flat Washer, .31 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

17

Cub Cadet 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 738-0138

Hex Cap Screw, 5/16-18 x .62
(Superseded to 738-0138A)

$6.99

$

In Stock, only 2 left!

0

19

Cub Cadet 738-0380

Shoulder Screw, .5 x .27, 3/8-16

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

21

Cub Cadet 741-0715

Snap Flange Bearing
(Superseded to 941-0715)

$

$

Not available

22

Cub Cadet 746-0968

Lift Cable, 16.16

$19.99

$

In Stock, Qty 20+

0

23

Cub Cadet 747-1111

Lift Handle
(Superseded to 747-1111A)

$

$

Not available

24

Cub Cadet 756-1154

Roller Pulley

$7.99

$

In Stock, only 2 left!

0

25

Cub Cadet 783-0678

Arm Lift
(Superseded to 783-0678C)

Variations

Cub Cadet 783-0678-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

$24.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 783-0720A

Deck Stabilizer Bracket
(Superseded to 783-0720C)

Variations

Cub Cadet 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

Cub Cadet 783-0720A-4008

USE 783-0720C-4008 BRACKET-AD - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0260

Carriage Bolt, 5/16 x.62
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0604

Self Tapping Screw, 5/16-18 x .625
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0895

Self Tapping Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-1990

Lift Lever Cover
(Superseded to 731-06795)

$24.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-1993

Cover w/ Cup Holder
(Superseded to 731-1993A)

$25.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 738-0155

Shoulder Screw, .437 x 1.62
(Superseded to 938-0155)

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 783-0677

Lift Adjustment Bracket
(Superseded to 783-0677B-0637)

Variations

Cub Cadet 783-0677-0637

Lift Adjustment Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

34

Cub Cadet 783-0763A

Fender

Variations

Cub Cadet 783-0763A-0606

FENDER - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 783-0763A-0638

FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0763A-0665

FENDER - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0763A-0709

FENDER - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 783-0763A-0716

FENDER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

35

Cub Cadet 783-0715

Seat Mounting Bracket
(Superseded to 783-1489D)

Variations

Cub Cadet 783-0715-0637

USE 783-1489C BRACKET-MOUNT:S - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

38

Cub Cadet 720-0309A

Seat Adjuster Grip

$9.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 731-1989

Spacer

$

$

Not available

?40

Cub Cadet 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

41

Cub Cadet 736-0175

Spring Washer, .265 x .562 x .025
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

42

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .03

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 738-0137A

Shoulder Screw, .340 x .285, 1/4-20

$10.99

$

In Stock, Qty 10

0

44

Cub Cadet 738-1007

Shoulder Screw, .50 x .50, 3/8-16

$

$

Not available

45

Cub Cadet 783-0611

Seat Stop

$10.99

$

In Stock, only 3 left!

0

46

Cub Cadet 783-0738

Seat Pivot Bracket
(Superseded to 783-0738D)

Variations

Cub Cadet 783-0738-0498

Seat Pivot Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 783-0738-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0738-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0738-0650

USE 783-0738D-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0738-0665

USE 783-0738D-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0738-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

$

$

47

Cub Cadet 783-0739

Seat Adjustment Lever

Variations

Cub Cadet 783-0739-0498

Seat Adjust Lever - OLD CUB YELLOW (0498)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0638

Seat Adjust Lever - MTD/TROY-BILT RED (0638)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0665

Seat Adjust Lever - YARDMAN GREEN (0665)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0691

Seat Adjust Lever - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0739-0716

Seat Adjust Lever - CUB YELLOW-99 (0716)

$25.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 783-0753

Seat Adjustment Selector

$15.99

$

In Stock, only 1 left!

0

49

Cub Cadet 757-0380

Seat
(Superseded to 957-0380)

$

$

Not available

50

Cub Cadet 735-0657

LH Foot Pad

$26.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 735-0656

RH Foot Pad

$25.99

$

Usually ships in 3-6 days

0

Cub Cadet 726-3046

Foot Pad Clips

Note: (Not Shown)

$3.99

$

In Stock, Qty 16

0

52

Cub Cadet 731-2107

Shift Cover

$

$

Not available

53

Cub Cadet 712-0292

Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

54

Cub Cadet 710-0924

Phillips Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 631-0009

Shift Knob
(Superseded to 931-0009A)

$14.99

$

In Stock, only 4 left!

0
