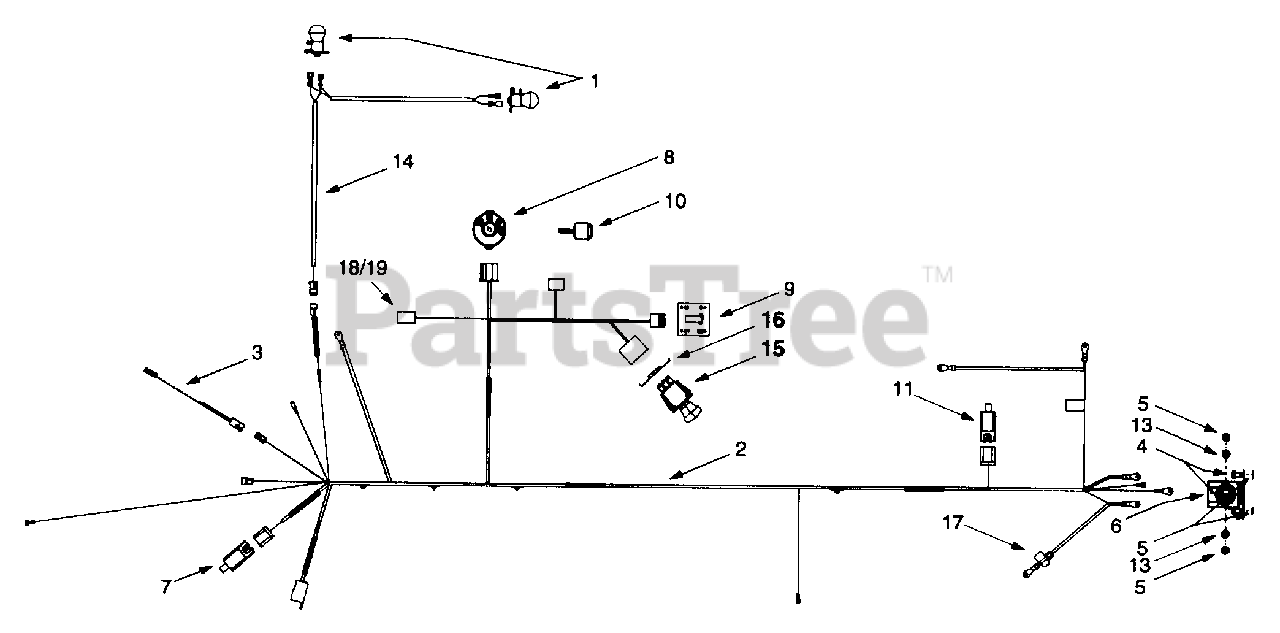

1212 (14AJ808H101) - Cub Cadet Lawn Tractor (SN: 1H019H - 1H310H) Electrical Parts Diagram

Lawn Tractor

Electrical Parts Diagram

  • Title

1

Cub Cadet 625-0051

Bulb/Socket Headlight Assembly
(Superseded to 925-0051)

$16.99

$

In Stock, only 1 left!

0

2

Cub Cadet 629-0939

Wiring Harness

Note: W/O Ref. 14; (Units w/B&S Intek Twin)

$401.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 629-0126

Harness Adapter, #18 x 5

$

$

Not available

4

Cub Cadet 710-0599

Self Tapping Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 17

0

6

Cub Cadet 725-1426

Solenoid, 12-volt, 100 Amp
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

7

Cub Cadet 725-1657A

Snap Mount Safety Interlock Switch (Brake)
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

8

Cub Cadet 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 725-1743

Indicator Monitor / Hour Meter
(Superseded to 753-0908)

$

$

Not available

10

Cub Cadet 725-1745

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-1747

Safety Plunger Switch (Seat)
(Superseded to 925-1747)

$40.99

$

Usually ships in 3-6 days

0

?12

Cub Cadet 736-0222

External Lock Washer, 1/4

$5.99

$

In Stock, only 3 left!

0

13

Cub Cadet 736-0329

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

14

Cub Cadet 629-0309

Headlight Harness
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

16

Cub Cadet 783-0462

Retainer Bracket

$

$

Not available

17

Cub Cadet 725-3007A

Positive Terminal Cover (Boot)

$

$

Not available

18

Cub Cadet 729-0357

Fuse Holder

$

$

Not available

19

Cub Cadet 725-1381

20-amp Fuse
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0
