1211 (149-630-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Electric Start Parts Diagram

Garden Tractor

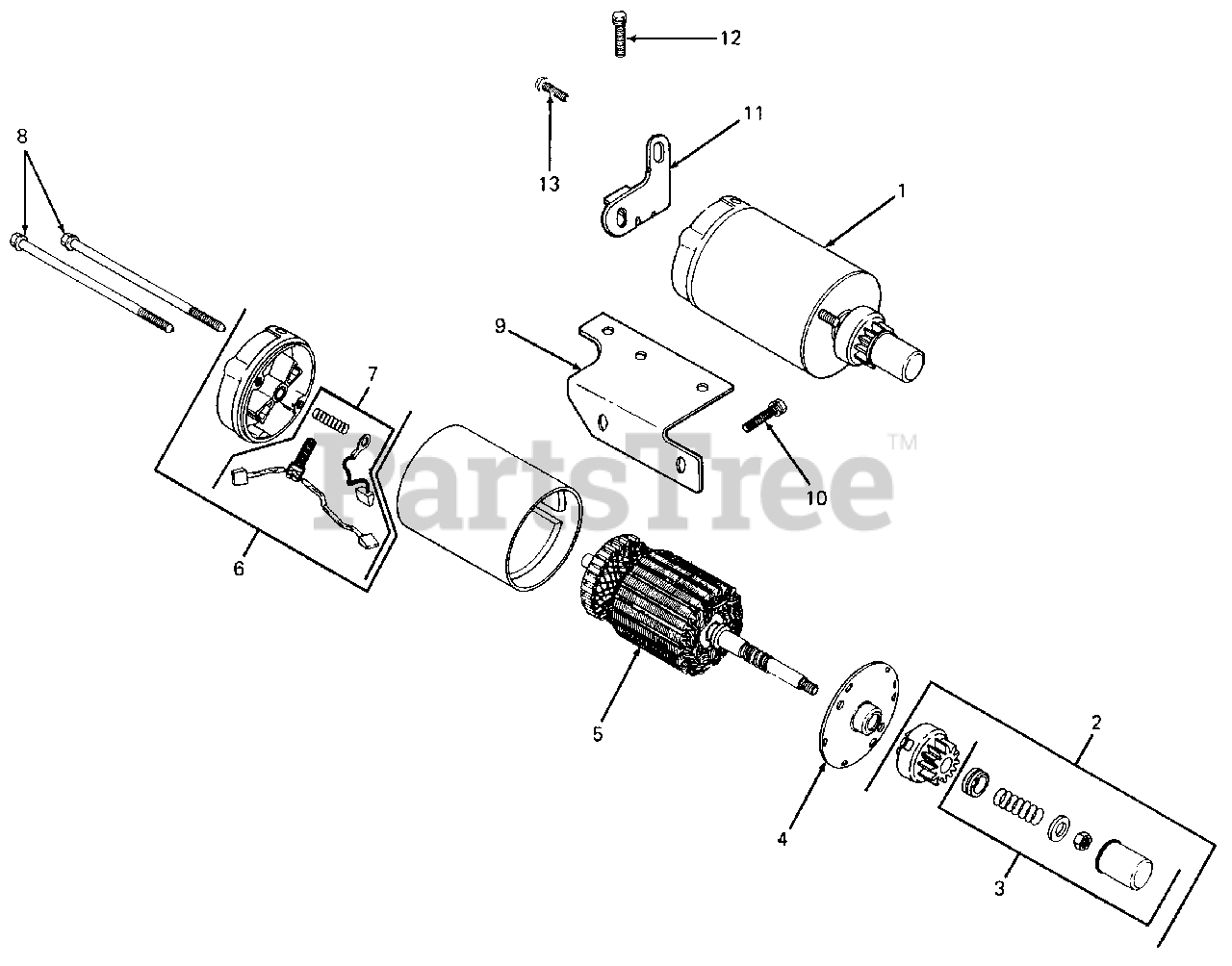

Electric Start Parts Diagram

  • Title

1

Cub Cadet KH-41-098-04

Starter Assembly
(Superseded to KH-41-098-06)

$

$

Not available

2

Cub Cadet KH-47-755-07

Kit, Drive
(Superseded to KH-41-755-33)

Note: (Includes Ref No. 3)

$

$

Not available

3

Cub Cadet KH-47-755-13

Kit, Drive Parts

$

$

Currently unavailable

4

Cub Cadet KH-41-227-03

Cap, Drive End

$

$

Not available

5

Cub Cadet KH-45-170-02

Armature

$

$

Not available

6

Cub Cadet KH-41-227-04

Cap, Commutator End

Note: (Includes Ref No. 7)

$

$

Not available

7

Cub Cadet KH-52-755-15

Kit, Brush
(Superseded to KH-82-755-28)

$

$

Not available

8

Cub Cadet KH-41-086-19

Bolt, 1/4-20 X 5-1/16 Lg

$

$

Currently unavailable

9

Cub Cadet KH-45-126-17

Bracket, Solenoid

$

$

Currently unavailable

10

Cub Cadet KH-X-159-2

Screw, HC Sems, 3/8-16 X 1.0 Lg

$

$

Currently unavailable

11

Cub Cadet KH-47-126-24

Brace, Tail

$

$

Currently unavailable

12

Cub Cadet KH-X-67-62

Screw, Hex Wash Hd, 1/4-20 X .75 Lg

$

$

Not available

13

Cub Cadet KH-X-67-83

Screw, Hex Wash Hd, 1/4-20 X .38 Lg
(Superseded to KH-25-086-106-S)

$2.49

$

In Stock, only 1 left!

0

Cub Cadet KH-237447

Decal, Strike Caution

$

$

Currently unavailable

Cub Cadet KH-277356

Decal, 12-Volt Negative Ground

$

$

Currently unavailable

Cub Cadet KH-25-450-03

Tag, Caution

$

$

Currently unavailable
