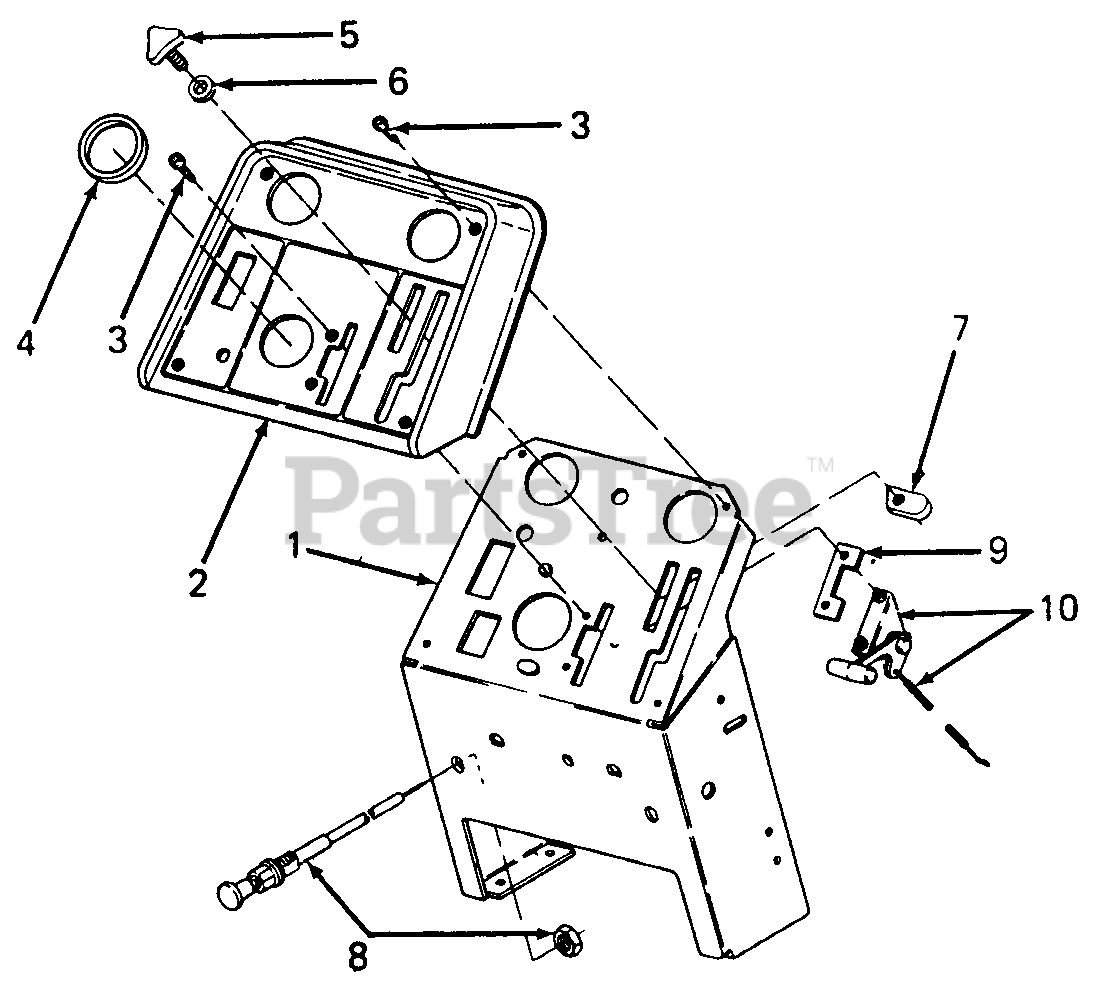

1211 (148-630-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Pedestal, Instrument Panel & Engine Controls Parts Diagram

Garden Tractor

Pedestal, Instrument Panel & Engine Controls Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Cub Cadet 731-3006

Panel, Instrument
(Superseded to 731-3064)

$

$

Not available

3

Cub Cadet 710-3009

Screw, Pan Hd Cutting, #10-24 X .75 Lg

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 735-3002

Grommet, Instrument Panel

$

$

Not available

$

$

Not available

6

Cub Cadet 736-3020

Washer, Flat, .266 X .625 X .035 Thk

$6.99

$

In Stock, Qty 9

0

7

Cub Cadet 731-3007

Stop, Detent Handle

$

$

Not available

8

Cub Cadet 746-3011

Choke Cable w/Nut
(Superseded to 946-3011)

$55.99

$

In Stock, only 2 left!

0

9

Cub Cadet 703-0566

Plate, Throttle Closure

$

$

Currently unavailable

10

Cub Cadet 746-3002

Control, Throttle

$68.99

$

In Stock, only 1 left!

0
