1211 (148-630-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Baffles & Shroud Parts Diagram

Garden Tractor

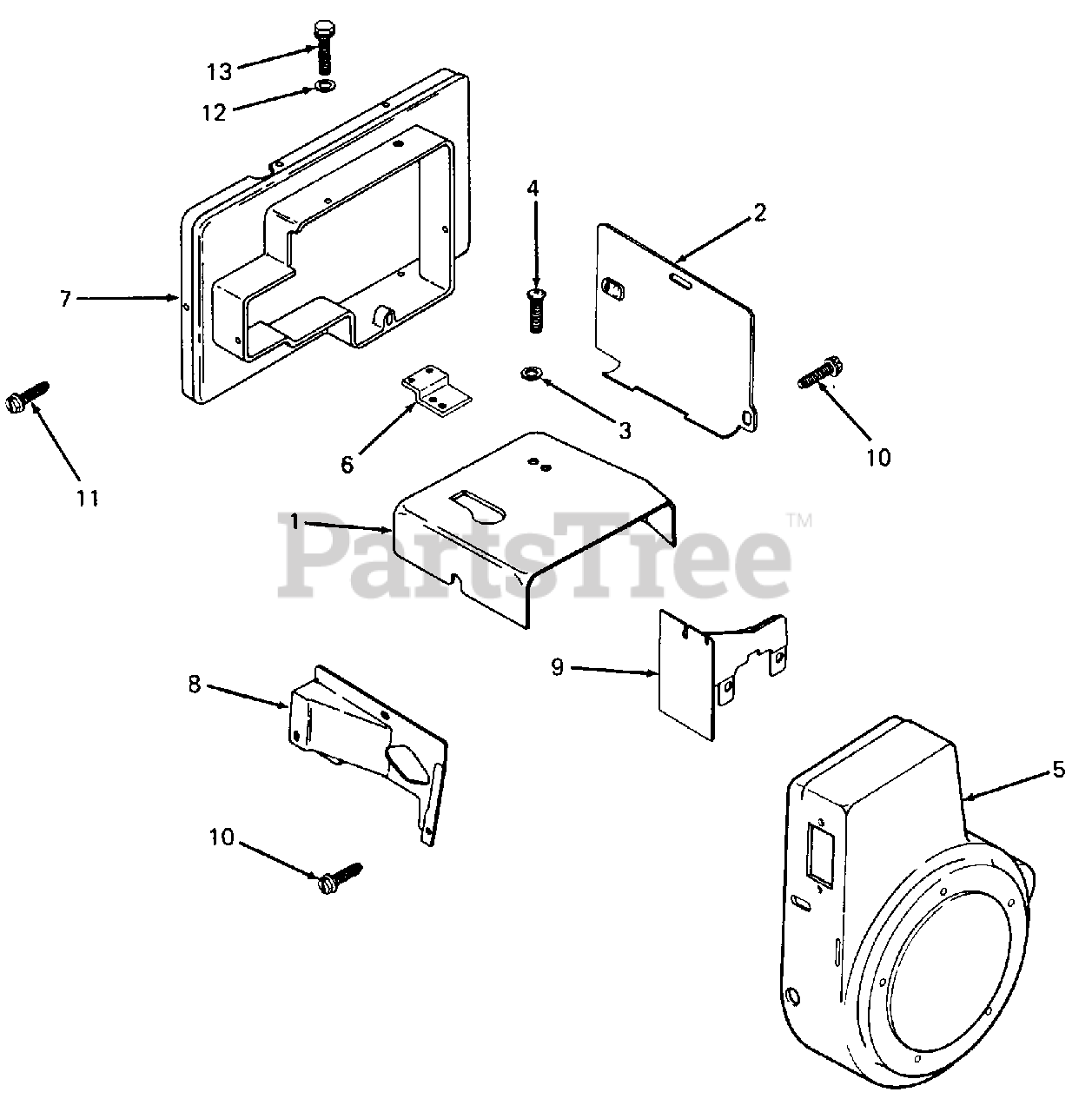

Baffles & Shroud Parts Diagram

  • Title
1

Cub Cadet KH-45-063-08

Baffle, Head

$

$

Not available

2

Cub Cadet KH-47-063-10

Baffle, Cylinder

$

$

Not available

3

Cub Cadet KH-X-25-53

Washer, Plain, 1/4

$

$

Not available

4

Cub Cadet KH-47-086-08

Screw, Pozidriv T.H., 1/4-20 X 1/2 Lg

$

$

Not available

5

Cub Cadet KH-47-027-40

Housing, Blower

$

$

Not available

6

Cub Cadet KH-47-126-23

Bracket, Duct

$

$

Currently unavailable

7

Cub Cadet KH-47-755-33

Kit, Duct

Note: [Includes Ref No. 4 & 11 (Qty 3)]

$

$

Not available

8

Cub Cadet KH-47-063-06

Baffle, Side Air

$

$

Not available

9

Cub Cadet KH-47-063-07

Baffle, Inner

$

$

Not available

10

Cub Cadet KH-52-086-11

Screw, Hex Wash Hd, 1/4-20 X 5/8 Lg

$

$

Not available

11

Cub Cadet KH-X-67-64

Screw, Hex Wash Hd, #10-32 X 7/16 Lg

$

$

Not available

12

Cub Cadet KH-X-25-20

Washer, Plain, 1/4

$

$

Currently unavailable

13

Cub Cadet KH-X-154-4

Screw, HC Sems, 5/16-18 X 1.25 Lg

$

$

Not available
