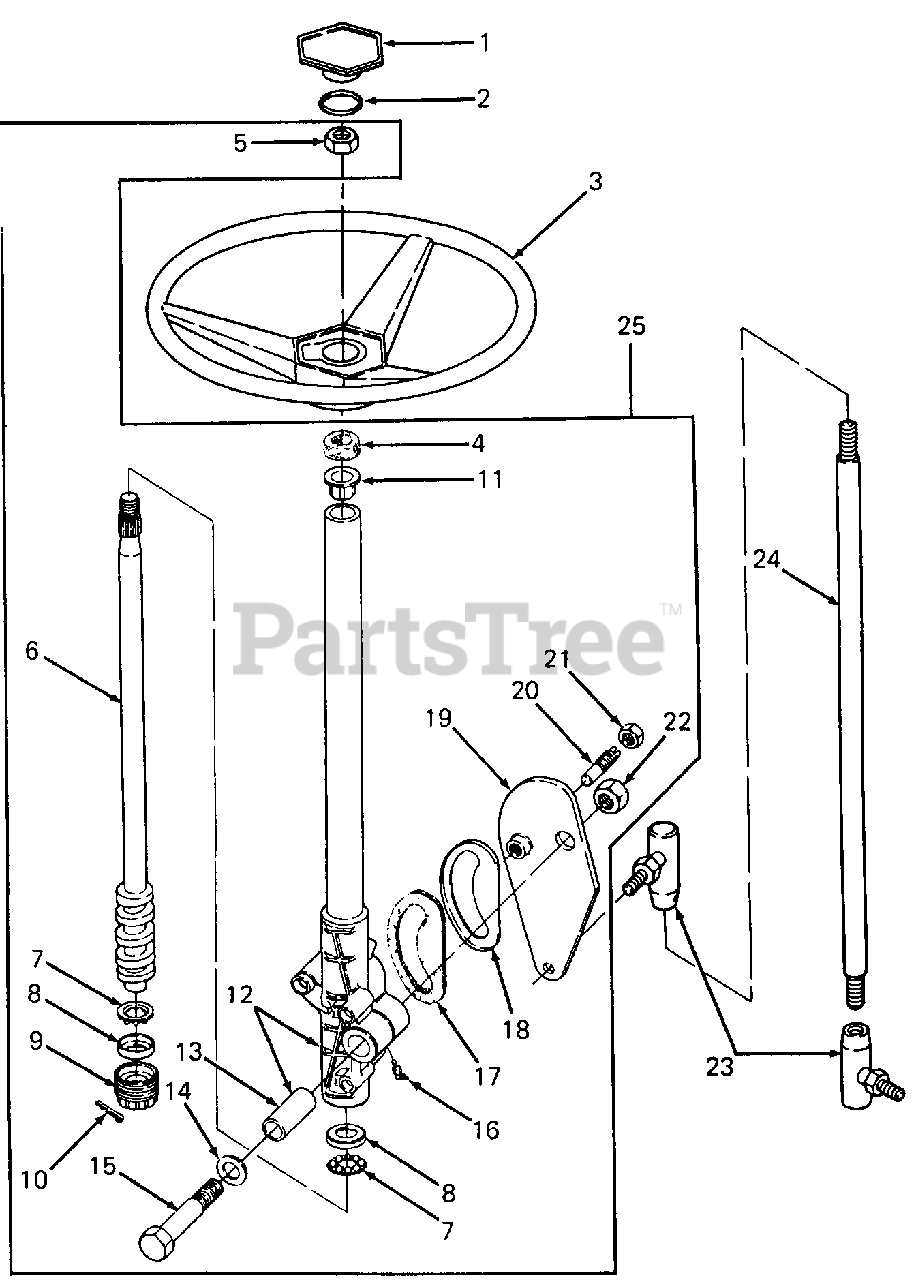

1211 (147-630-100) - Cub Cadet Garden Tractor (SN: 756300 - 799999) Steering Parts Diagram

Garden Tractor

Steering Parts Diagram

  • Title
1

Cub Cadet 731-3001

Cap, Steering Wheel

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-3000

Wheel, Steering

$

$

Not available

4

Cub Cadet 723-3040

Seal, Column

$

$

Not available

5

Cub Cadet 712-3056

Nut, Hex Jam, 5/8-18

$4.99

$

In Stock, Qty 13

0

6

Cub Cadet 703-1030

Shaft/Cam Assy

$225.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 741-3021

Retainer Assy, Ball
(Superseded to 941-3021)

$37.99

$

In Stock, Qty 13

0

8

Cub Cadet 703-1029

Cup, Bearing
(Superseded to 903-1029)

$

$

Not available

9

Cub Cadet 719-3053

Plug, Adjusting
(Superseded to 919-3053)

$

$

Not available

10

Cub Cadet 714-0474

Pin, Cotter, 1/8 Dia X .75 Lg

$4.99

$

In Stock, Qty 13

0

11

Cub Cadet 741-3023

Bearing, Column
(Superseded to 941-3023)

$8.49

$

In Stock, Qty 15

0

12

Cub Cadet 703-1027

Housing/Tube Assy
(Superseded to 903-1027)

Note: (Includes Ref No. 13)

$

$

Not available

13

$

$

Not available

14

Cub Cadet 736-3029

Washer, Flat, .781 X 1.25 X .027 Thk

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 711-3208

Shaft, Pivot

$

$

Not available

16

Cub Cadet 737-3001

Fitting, Lube, 3/16 Drive Type

$12.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 723-3039

Seal, Grease
(Superseded to 923-3039)

$8.99

$

In Stock, Qty 20+

0

18

Cub Cadet 703-1031

Retainer, Seal

$

$

Not available

19

Cub Cadet 703-1082

Arm, Steering

$

$

Not available

20

Cub Cadet 711-3149

Follower, Cam
(Superseded to 911-3149A)

$45.99

$

In Stock, only 2 left!

0

21

Cub Cadet 712-3062

Nut, Hex Jam, 9/16-18

$

$

Not available

22

Cub Cadet 712-3063

Nut, Hex Crown Lock, 5/8-18

$8.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 723-3000

Ball Joint
(Superseded to 923-3000)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3002

Nut, Hex Castle, 3/8-24 GR5
(Superseded to 912-3002)

$6.99

$

In Stock, Qty 8

0

Cub Cadet 714-0507

Pin, Cotter, 3/32 Dia X .75 Lg

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 711-3000

Link, Steering Gear Drag

$

$

Not available

Cub Cadet 712-3001

Nut, Hex Jam, 3/8-24 GR5
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

25

Cub Cadet 703-1085

Steering Gear Assy

Note: [Includes Ref No. 4, 5, 6, 7 (Qty 2), 8 (Qty 2), 9, 10, 11, 12, 14, 15, 16, 17, 18, 19, 20, 21 & 22.

$

$

Not available

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16 X .88 Lg GR5

$7.49

$

In Stock, Qty 9

0

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0
