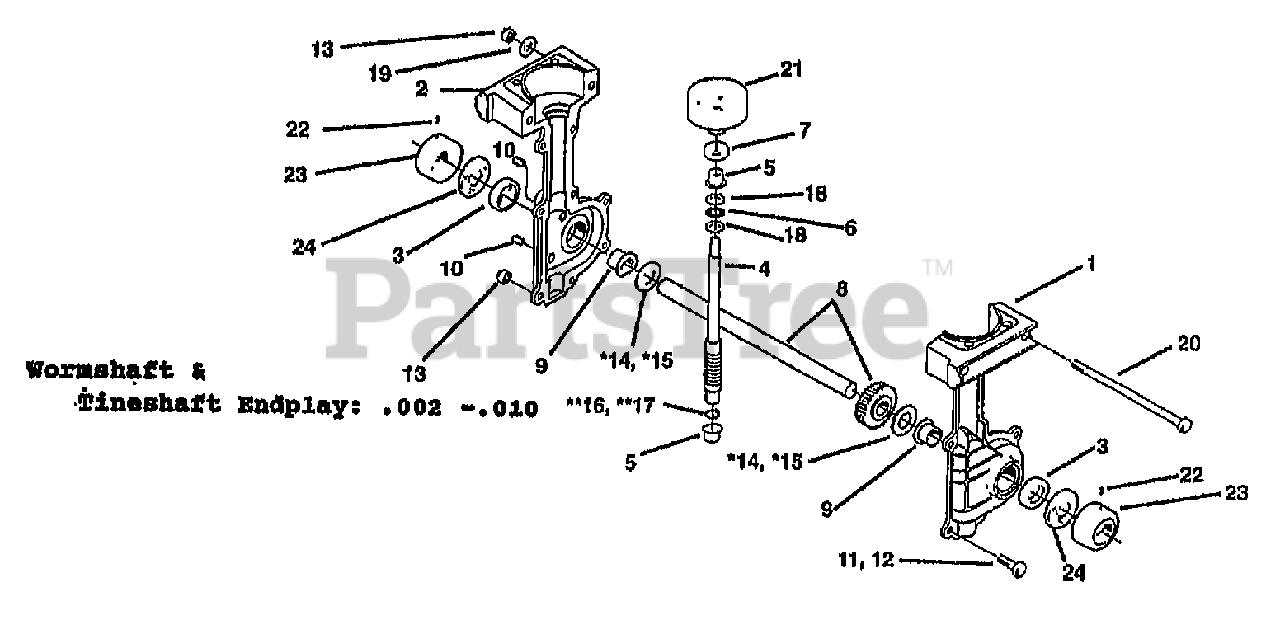

12103 - Troy-Bilt Mini-Tiller (SN: 121030100101 - 121030299999) TRANSMISSION Parts Diagram

Mini-Tiller

TRANSMISSION Parts Diagram

  • Title

Troy-Bilt 1983631

ASSM-TRANS 85029

$

$

Currently unavailable

1

MTD 1983628

TRANS-CASE LH PT/85023/00

$

$

Not available

2

Troy-Bilt 1983629

TRANS-CASE RH PT/85024/00

$

$

Currently unavailable

3

Troy-Bilt 1983632

SEAL-PINION SHAFT PT/85030/00
(Superseded to 921-04044)

$9.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1983634

SHAFT-WORM PT/85032/00
(Superseded to 1918307)

$57.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 1983731

BEARING-INPUT

$12.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1983636

BEARING-THRUST PT/85034/00
(Superseded to 741-04052)

$

$

Not available

7

Troy-Bilt 1983637

BEARING-BALL PT/85035/00

$38.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1981052

ASSM-SHAFT OUTPUT AS/85037/00

$

$

Not available

9

Troy-Bilt 1915034

BUSHING-1.25X.755X.73

$12.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 1185741

PLUG-PIPE 1/8 NPT
(Superseded to 737-04178)

$4.49

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1111600

SCREW 1/4-20 X .875 (FIVE LOCATIONS ON TRANSMISSION CASE)
(Superseded to 710-0206)

$4.49

$

Usually ships in 3-6 days

0

12

MTD 1983658

SCREW 1/4-20X1.125 (THREE LOCATIONS ON TRANSMISSION CASE)

$

$

Not available

13

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

14

MTD 1983635

WASHER-THRUST .775X.05 (.050")

$

$

Not available

15

MTD 1983635

WASHER-THRUST .775X.05 (.040")

$

$

Not available

16

Troy-Bilt 1983641

WASHER-THRUST .505X.02 (.020")

$3.49

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1983642

WASHER-.76X.5X.04 THRUST (.025")
(Superseded to 936-0616)

$4.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 1983638

WASHER-THRUST .92X.5X.06

$

$

Not available

19

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP
(Superseded to 936-0159)

$

$

Not available

20

MTD 1983663

SCR-HH 1/4-20X5

$

$

Not available

21

MTD 1984514

CLUTCH-DRUM & HUB

$

$

Not available

22

MTD 1983052

SCR M10-32X.25

$

$

Not available

23

Troy-Bilt 1904183

KIT-DUST CAP

$

$

Not available

24

Troy-Bilt 1983713

WASHER-FELT 1.5X.72X.13

$5.49

$

Usually ships in 3-6 days

0
