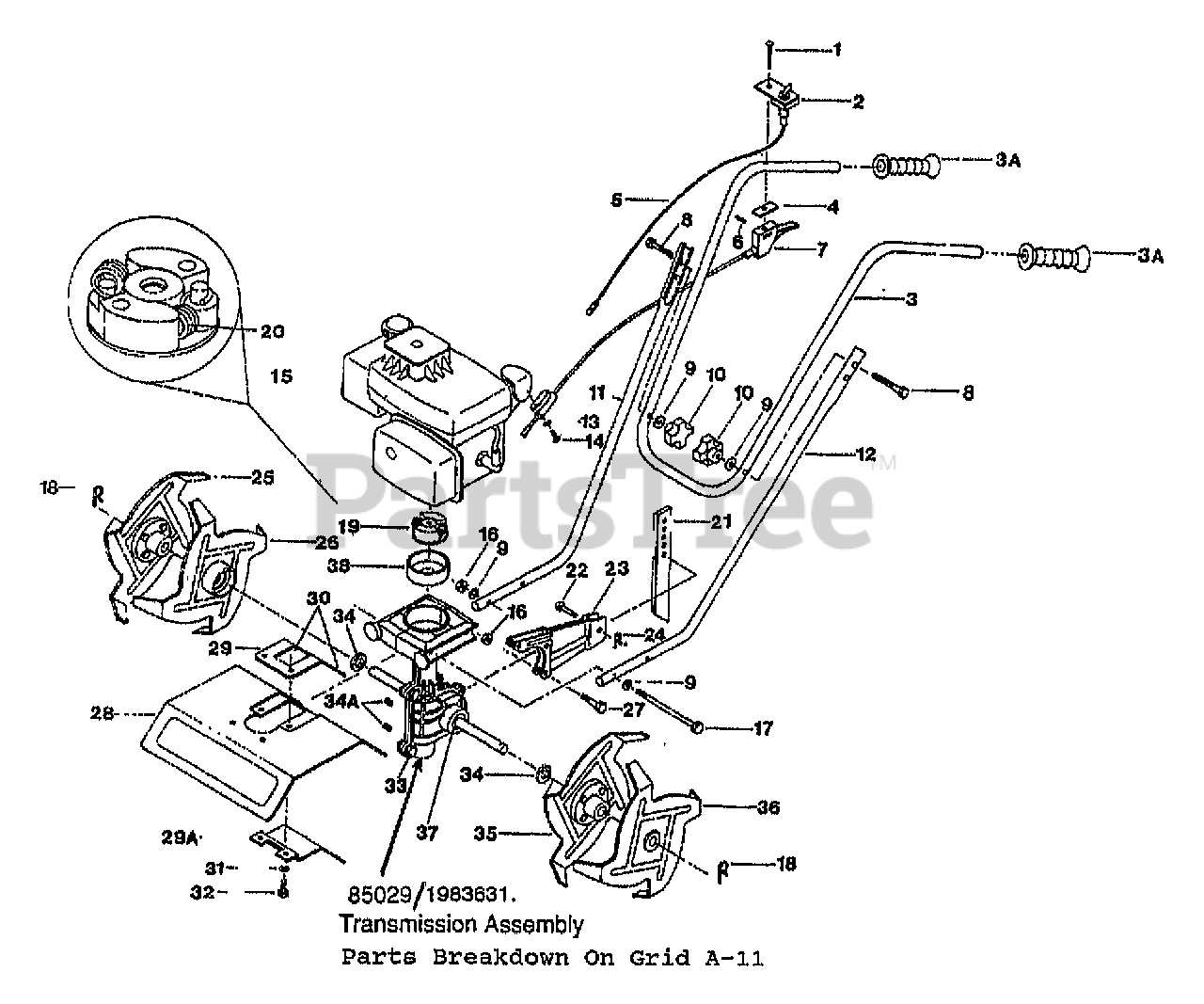

12103 - Troy-Bilt Mini-Tiller (SN: 121030100101 - 121030299999) MAIN ASSEMBLY Parts Diagram

Mini-Tiller

MAIN ASSEMBLY Parts Diagram

  • Title

1

MTD 1983716

SCR-PH HD M10-24X1.375

$

$

Not available

2

Troy-Bilt 1983718

SWITCH-IGN. 96506

$

$

Not available

2

Troy-Bilt 1981012001

BRKT-SWITCH PNT

$

$

Not available

3

MTD 1981046

ASSM-UPR HANDLEBAR

$

$

Not available

3A

MTD 1983728

GRIP-HANDLEBAR 97030

$

$

Not available

4

MTD 1983649

PAD-ISOLATOR TRIGGER

$

$

Not available

5

MTD 1766998

HARNESS-WIRE

$

$

Not available

6

Troy-Bilt 1185490

NUT-WELD #10-24
(Superseded to 712-0127)

$3.49

$

In Stock, Qty 13

0

7

Troy-Bilt 1984508

CABLE-THROTTLE MINITILLER

$

$

Currently unavailable

8

Troy-Bilt 1983659

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

10

MTD 1983729

KNOB

$

$

Not available

11

MTD 1984509001

H/BAR-LWR RIGHT PNT

$

$

Not available

12

MTD 1984510001

H/BAR-LWR LEFT PNT

$

$

Not available

13

Troy-Bilt 1187293

WASHER-.44X.187X.05

$

$

Currently unavailable

14

MTD 1983661

SCR-HH M8-32X1.0

$

$

Not available

15

0

ENGINE, TECUMSEH TC-200-2106

$

$

Not available

16

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

17

MTD 1983663

SCR-HH 1/4-20X5

$

$

Not available

18

Troy-Bilt 1185590

PIN-HITCH .149DIA

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1984515

KIT-ROTOR ASSM

$

$

Currently unavailable

20

Troy-Bilt 1984513

KIT-ROTOR ASSM

$

$

Currently unavailable

21

MTD 1981014001

DRAGSTAKE-PNT

$

$

Not available

22

MTD 1983723

PIN-CLEVIS

$

$

Not available

23

MTD 1981010001

BRKT-WHEEL ASSM PNT

$

$

Not available

24

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

25

MTD 1984430

ASSM-TINE OUTER RH

$

$

Not available

26

Troy-Bilt 1984429

ASSM-TINE INNER RH

$

$

Currently unavailable

27

Troy-Bilt 90031

SCR 1/4-20X1.125 (DRAG STAKE TRANSMISSION)

$

$

Currently unavailable

28

MTD 1985791

HOOD W/DECAL 85056 SPEEDYHOE

$

$

Not available

29

MTD 1981022010

HOOD-FILL PIECE MINI PNT

$

$

Not available

29A

MTD 1981018010

SHIELD-ROCK PNT

$

$

Not available

30

MTD 1983662

SCR M10-32X.375 STH (FOR REAR TINE COVER PLATE)

$

$

Not available

31

Troy-Bilt 1100241

WASHER-LK .25
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

MTD 1100807

SCR-HH 1/4-20X2.0 G5

$

$

Not available

33

Troy-Bilt 1111600

SCR-HH 1/4-20 X .875
(Superseded to 710-0206)

$4.49

$

Usually ships in 3-6 days

0

34

Troy-Bilt 1983713

WASHER-FELT 1.5X.72X.13

$5.49

$

Usually ships in 3-6 days

0

34A

MTD 1983052

SCR M10-32X.25

$

$

Not available

35

Troy-Bilt 1984427

ASSM-TINE INNER LH

$

$

Currently unavailable

36

Troy-Bilt 1984428

ASSM-TINE OUTER LH

$

$

Currently unavailable

37

Troy-Bilt 1983622

KIT-DUST CAP
(Superseded to 1904183)

$

$

Not available

37

MTD 1983052

SCR M10-32X.25

$

$

Not available

38

MTD 1984514

CLUTCH-DRUM & HUB

$

$

Not available

Troy-Bilt 1984515

KIT-ROTOR ASSM

$

$

Currently unavailable

Troy-Bilt 1983224

DECAL-LAZYBOY PT/13001/00

$

$

Currently unavailable

MTD 1983094

DECAL-CAUTION (LOCATED ON REAR OF TINE COVER)

$

$

Not available

MTD 1983095

DECAL-WARNING (LOCATED ON REAR OF TINE COVER)

$

$

Not available

MTD 1983096

DECAL-THROTTLE (LOCATED ON THE RIGHT HANDLEBAR)

$

$

Not available

MTD 1983097

DECAL-ENGINE ON/OFF (ON RIGHT HANDLEBAR)

$

$

Not available

Troy-Bilt 1983648

SPACER-TINE 1.0X.8X1.31LG (INSTALL WHEN OUTER TINES ARE OFF FOR CULTIVATING)

$6.49

$

Usually ships in 3-6 days

0

MTD 1983647

CUP-MEASURING

$

$

Not available

Troy-Bilt 1982393

KIT-TINE REPLACE 85059 (INCL. 25,26,35,36, TWO 18, TWO 34)

$

$

Currently unavailable

Troy-Bilt 1983631

ASSM-TRANS 85029 (PARTS BREAKDOWN ON GRID A- 11)

$

$

Currently unavailable

Troy-Bilt 1983727

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

MTD 1981053

KIT-TINE SPACER (INCL. TWO 85049)

$

$

Not available
